Spec5 Raider

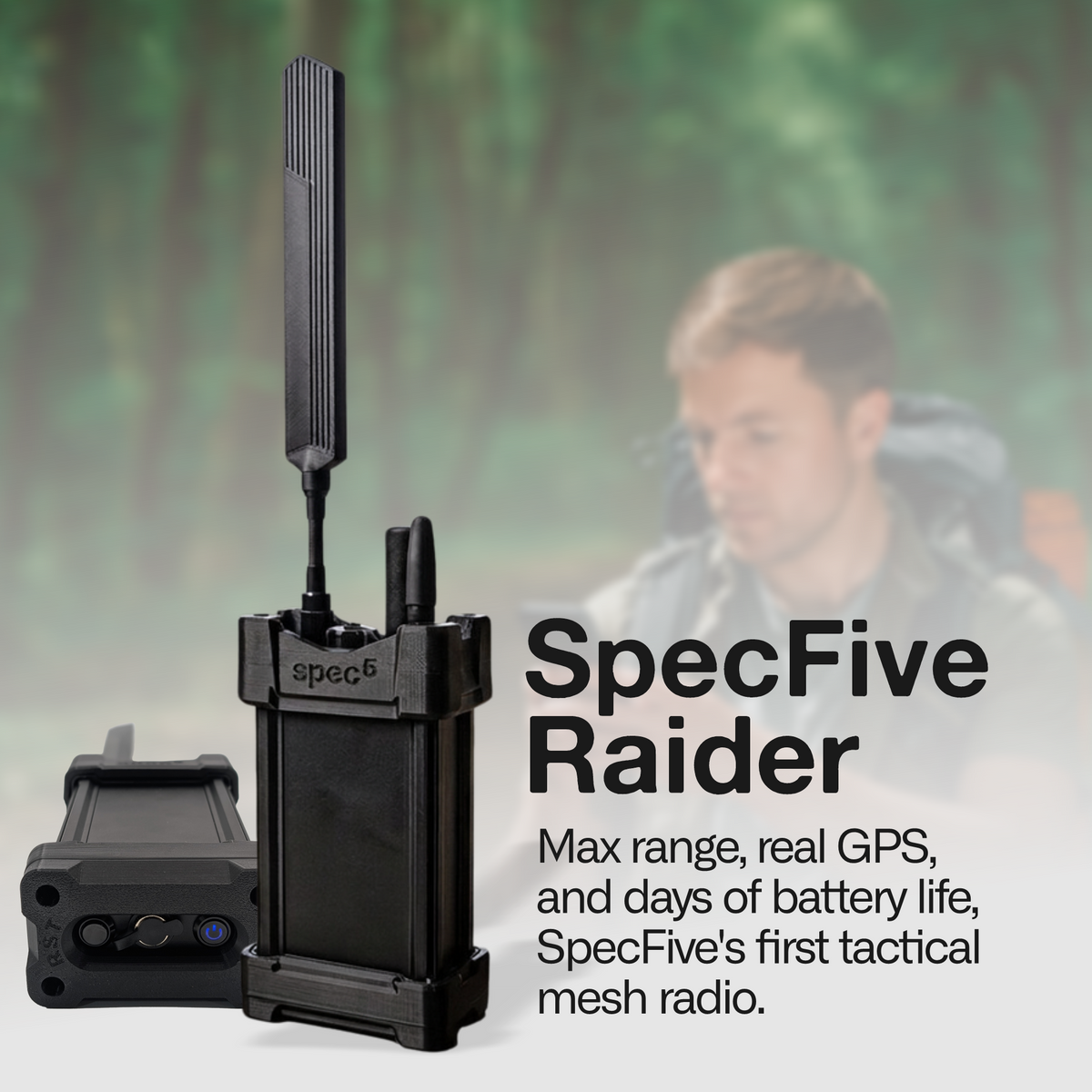

The Raider is Spec5's first high-end tactical device purpose-built for military, search and rescue, and first-responder teams who need a mesh radio that won't let them down: maximum transmission range, accurate GPS location, and enough battery to run for days, not hours. It's built around a fully metal housing: an aluminum-extrusion body capped with machined aluminum end pieces, sealed to an IP68 rating, so it holds up to the conditions those missions actually happen in rain, mud, dust, drops, and full submersion.
Where earlier Spec5 mesh devices have used plastic enclosures, the Raider is the first product in the lineup with a machined-metal build from the ground up, paired with a full 1-watt radio for maximum range and a 6000 mAh battery rated for 4–5 days of runtime on a single charge built to last the length of a mission, not just a shift.
Regular price
$359.99
Sale price
$359.99
Regular price
Unit price
Save $0.00
Spec5 Raider
Product Description
Specs
User Guide
SpecFive Raider - Rugged IP68 Tactical Mesh RadioÂ
What’s Included in the Box
Everything needed to deploy the Raider straight out of the box:
- Raider tactical LoRa mesh radio
- Tactical 915 MHz LoRa antenna
- Dual-band GPS/GLONASS antenna
- Bluetooth antenna
- USB-C data cable for data transfer and slow charging
- DC-barrel-to-USB-A fast-charge cable for use with any standard USB-A charger
- USB-C port cap and DC-port rubber plug for full IP68 sealing

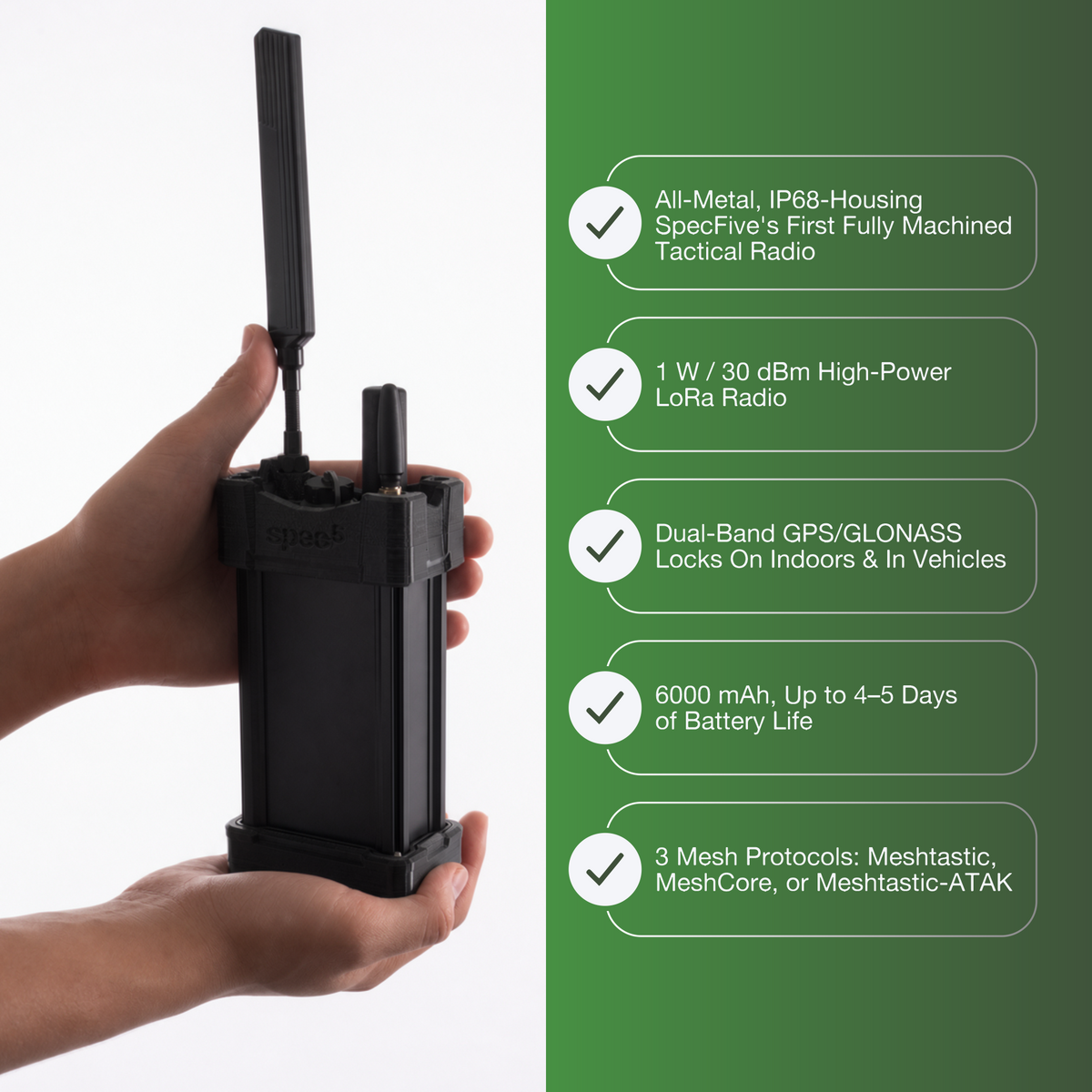

Key Features

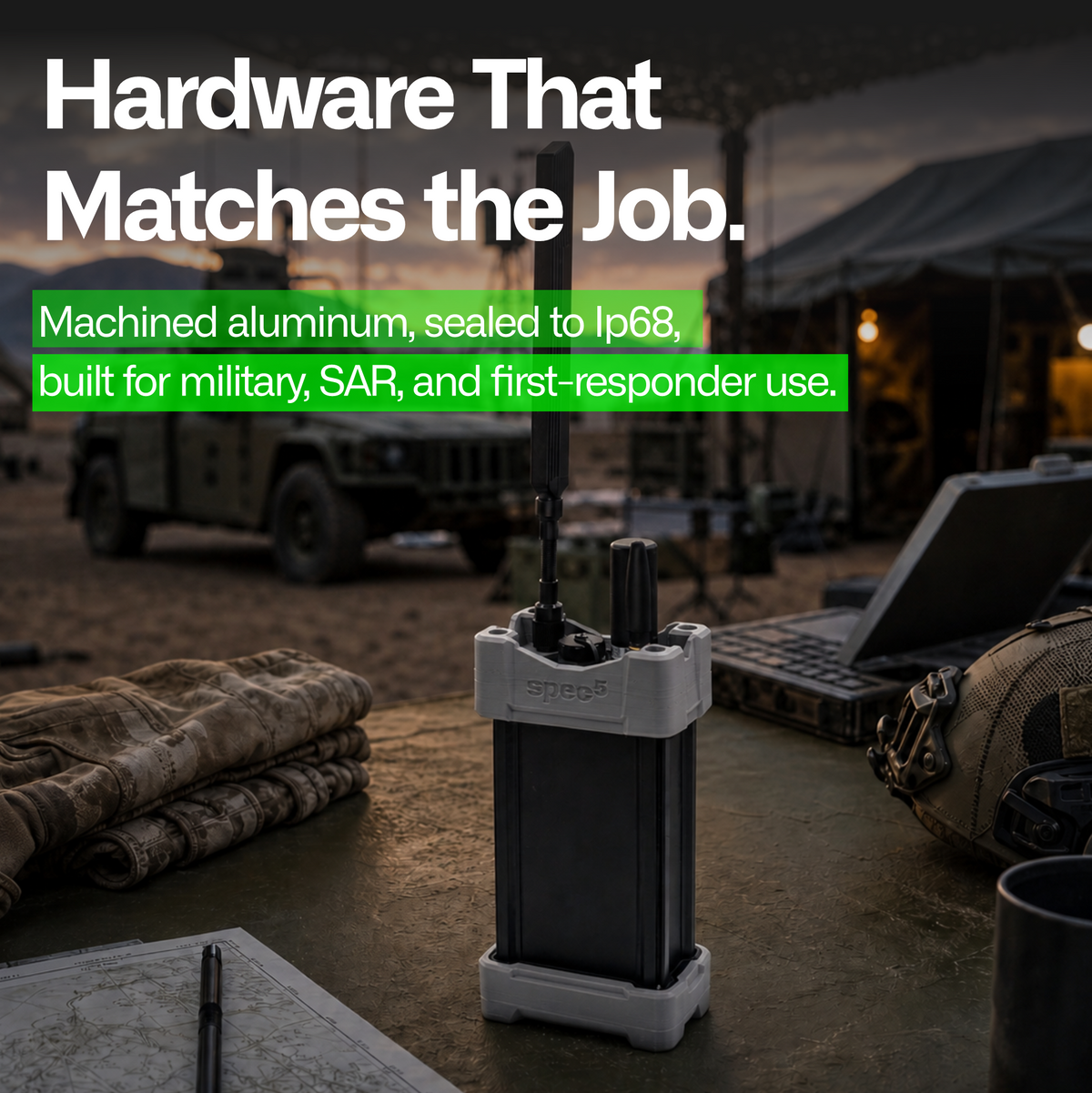

- Fully metal, IP68-sealed build:Â An extruded aluminum housing with machined end caps seals against dust and full submersion. It holds up to rain, mud, drops, and water.
- 1 W long-range LoRa:Â Full 1-watt (30 dBm) transmit power carries your mesh signal across long distances in the field.

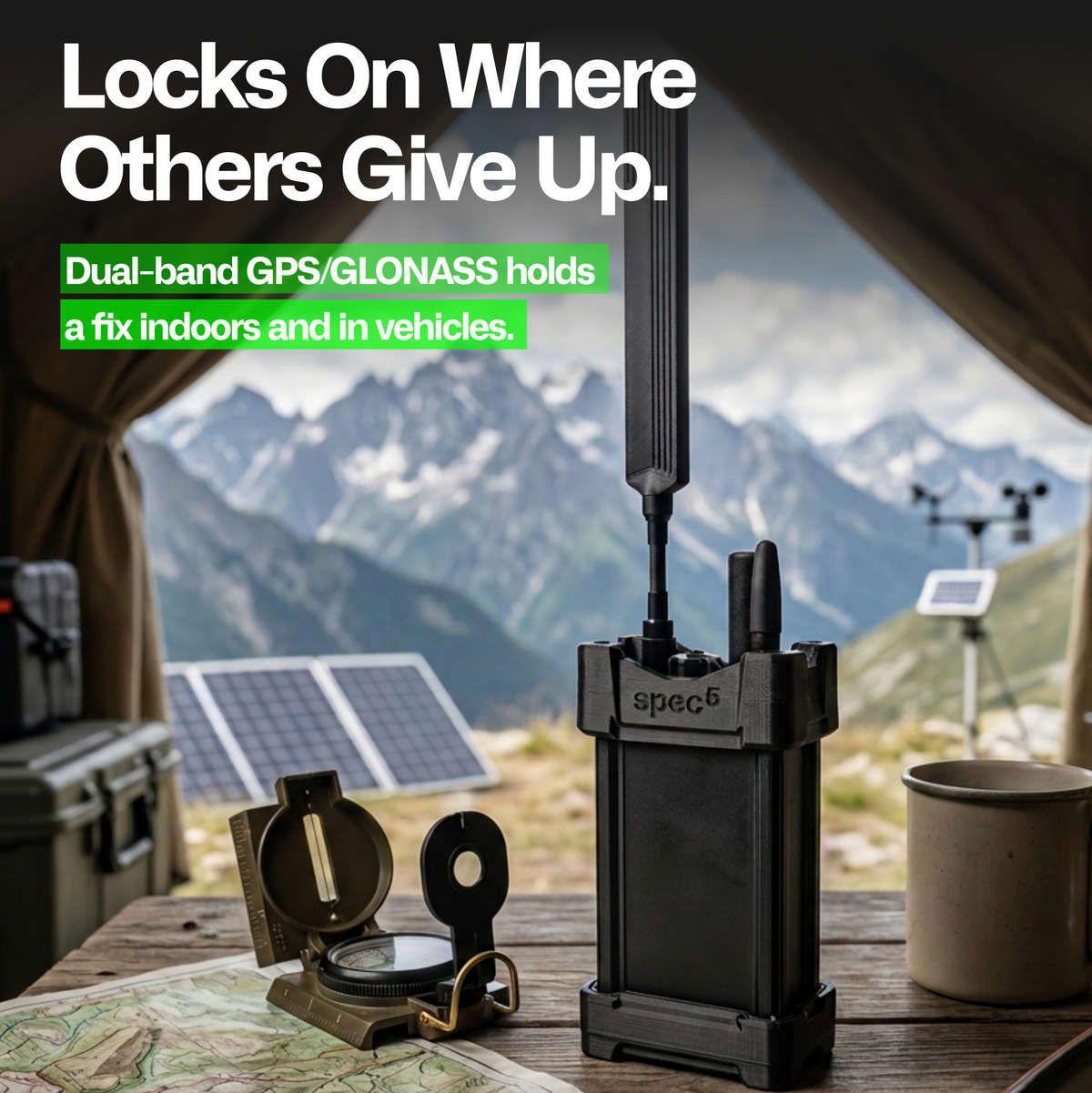

- GPS that keeps its lock:Â A dedicated dual-band GPS/GLONASS antenna holds a fix inside vehicles and buildings, not just under open sky.
- 4 to 5 days of runtime:Â A 6000 mAh battery is rated to run multi-day missions on a single charge.
- Three dedicated antennas:Â Separate LoRa, GPS, and Bluetooth antennas each do one job well, with no compromise from a single combined antenna.
- Dual sealed charging:Â Waterproof USB-C handles data and slow charging. A waterproof DC barrel jack delivers a fast charge in about 5 hours.
Use-Case Scenarios
- Military operations:Â Teams carry the Raider as rugged personal comms and GPS tracking. Its long range and multi-day battery hold the mesh together across an operating area.
- Search and rescue: Responders track team positions and stay connected where there is no cell coverage. The GPS keeps a fix even inside vehicles and structures.
- First-responder and emergency response:Â Crews stand up a resilient off-grid network fast. The IP68 housing keeps the Raider working through rain, dust, and rough handling.
Deployment

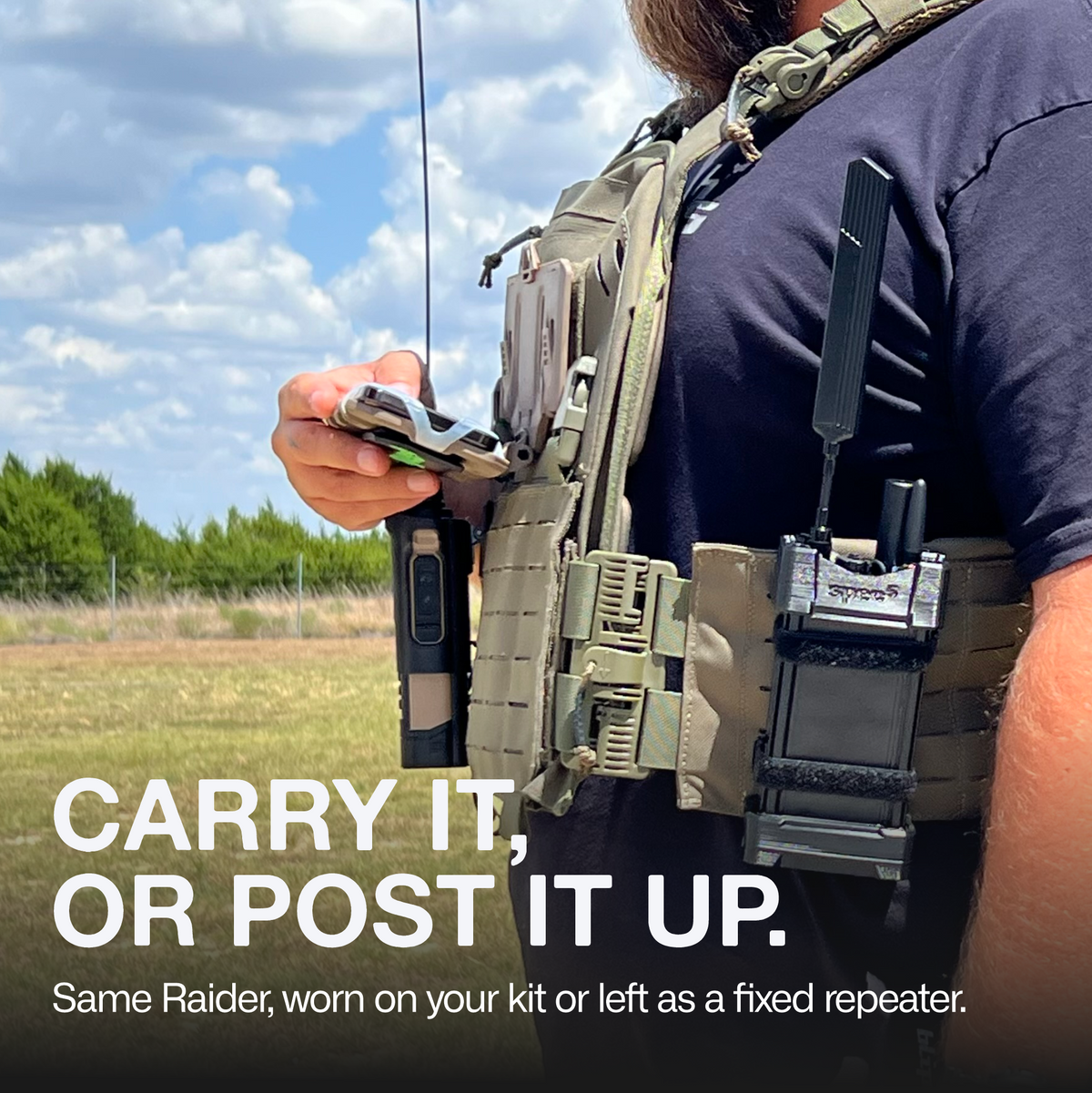

- The Raider works two ways. Carry it on-person as a rugged comms and GPS-tracking radio. Or set it in place as a standalone relay node to extend and strengthen the mesh.
- Its long range, large battery, and IP68 housing make it as capable in a fixed position as on a vest. Mount it on a rooftop, in a vehicle, or at a fixed point for days at a time. Teams can build mesh coverage across a whole mission area, not just carry a radio through it.
- Before any water or outdoor exposure, install the USB-C cap and DC-port plug over the unused port, and screw all antennas on tightly. Use only one charging port at a time.
Disclaimer
Runtime, range, and IP68 sealing depend on correct setup and conditions. Operate the 915 MHz radio only where local regulations allow. Not a replacement for emergency services.
Additional Resources
- Meshtastic Organization Website: https://meshtastic.org
- Meshtastic YouTube Channel: https://www.youtube.com/meshtastic

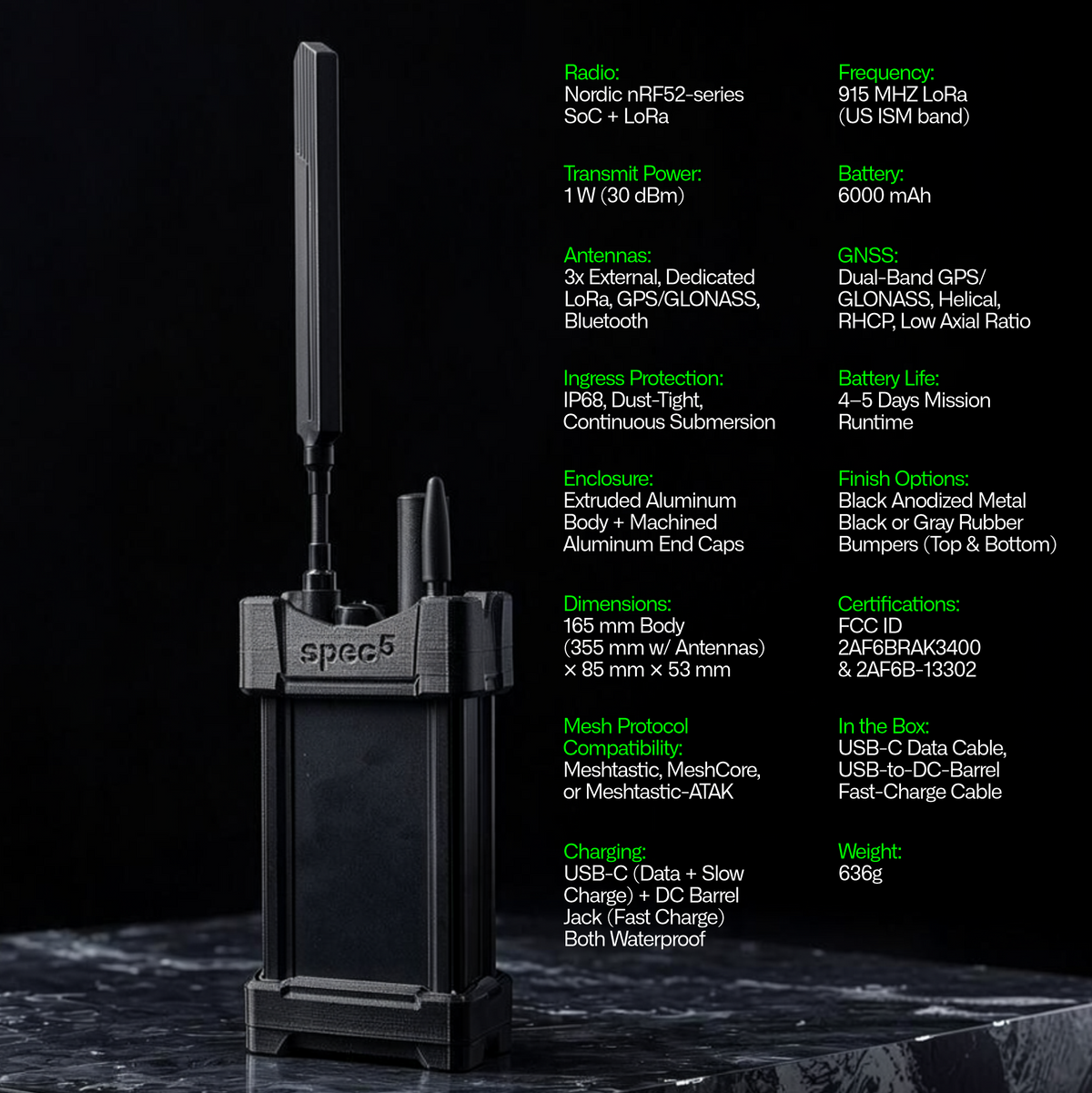

| Case Material | Extruded aluminum body with machined aluminum end caps |
|---|---|
| Enclosure | Fully metal – first metal-housed product in the Spec5 lineup |
| Ingress Protection | IP68 (dust-tight, continuous submersion) |
| Dimensions (body) | 165 x 85 x 53 mm |
| Height (with antennas) | 355 mm |
| Weight | 636 g |

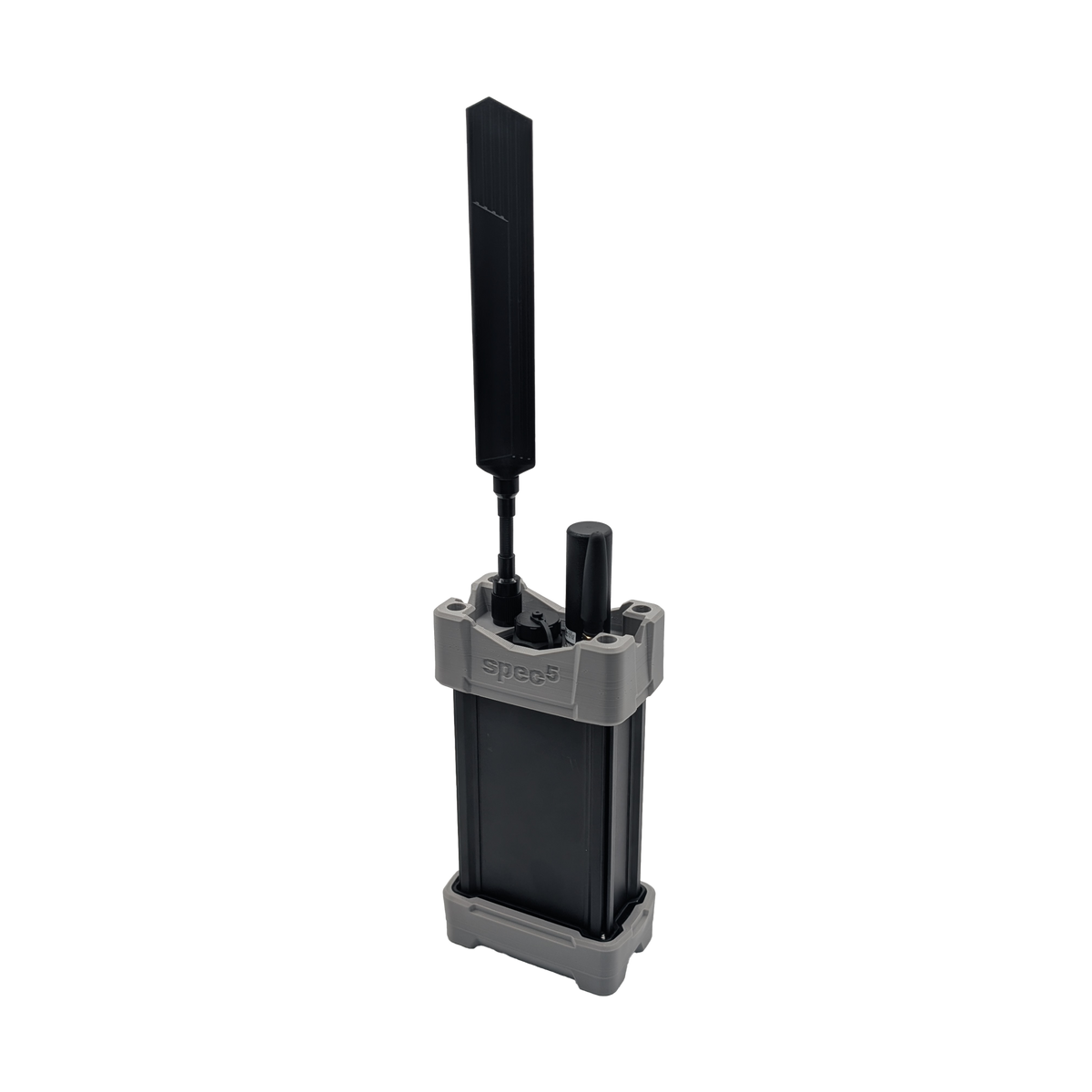

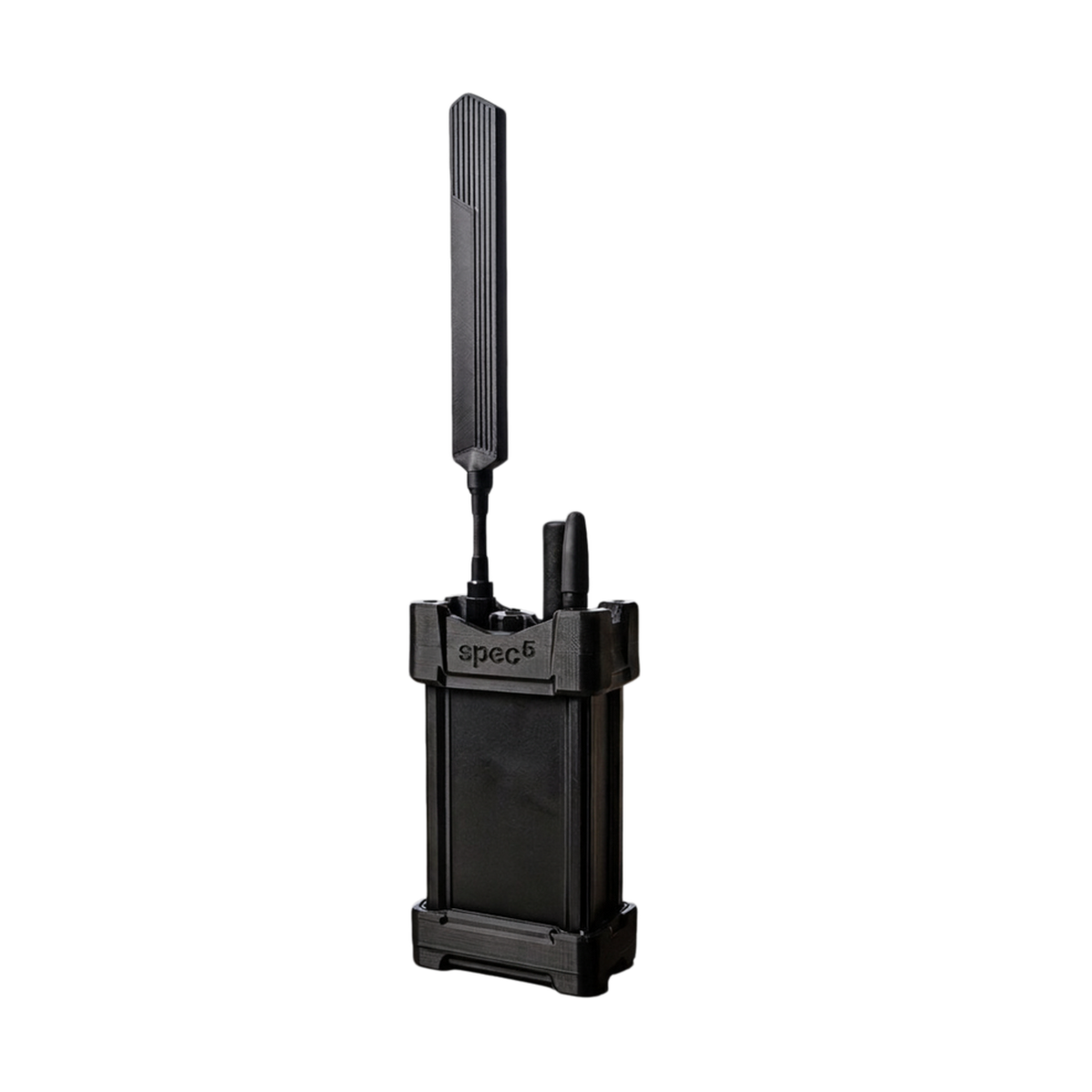

| Finish Options | Black Anodize; Black or Gray Rubber Bumpers (top & bottom) |
| Firmware | Meshtastic, Meshtastic-ATAK, MeshCore |
| MCU / Radio SoC | Nordic nRF52-series |
|---|---|
| LoRa Output Power | 1 W (30 dBm) |
| External Antennas | 3 (LoRa tactical, GPS, Bluetooth) |
| Power Switch | Lighted power switch |
| Reset Button | Recessed |
| FCC ID | 2AF6BRAK3400 & 2AF6B-13302 |
| Battery | 6000 mAh |
|---|---|
| Battery Life | 4–5 Days (typical mission use) |
| Charging (USB-C) | Waterproof; data transfer + slow charge (~15 hrs) |
| Fast Charging (DC Barrel Jack) | Waterproof; ~5 hrs (5V/1A) |
| Antenna | External 915 MHz LoRa antenna; dual-band GPS/GLONASS; Bluetooth |
|---|---|
| Frequency | 915 MHz (US ISM band) |
| GPS | Dedicated dual-band GPS/GLONASS (helical, RHCP) – holds a fix in vehicles and buildings |
| Bluetooth | Dedicated antenna for phone/app pairing |
Important Device Information
Spec5 devices are configured for Meshtastic use, but additional setup may be required on your phone or personal device. Spec5 is not responsible for app installation, configuration, compatibility, or troubleshooting on user-owned devices. Please consult Meshtastic’s official guides and confirm your device meets the app’s requirements.
