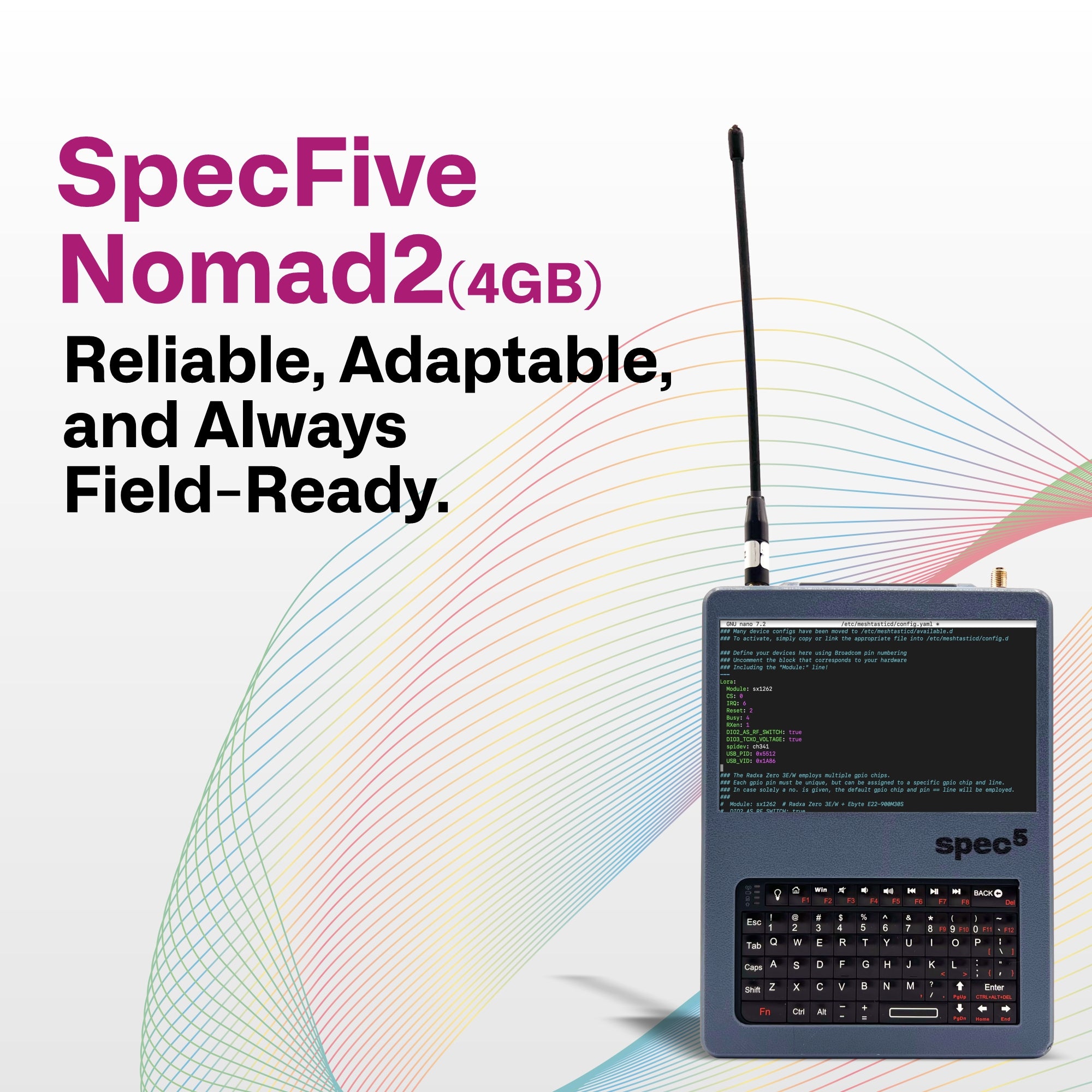

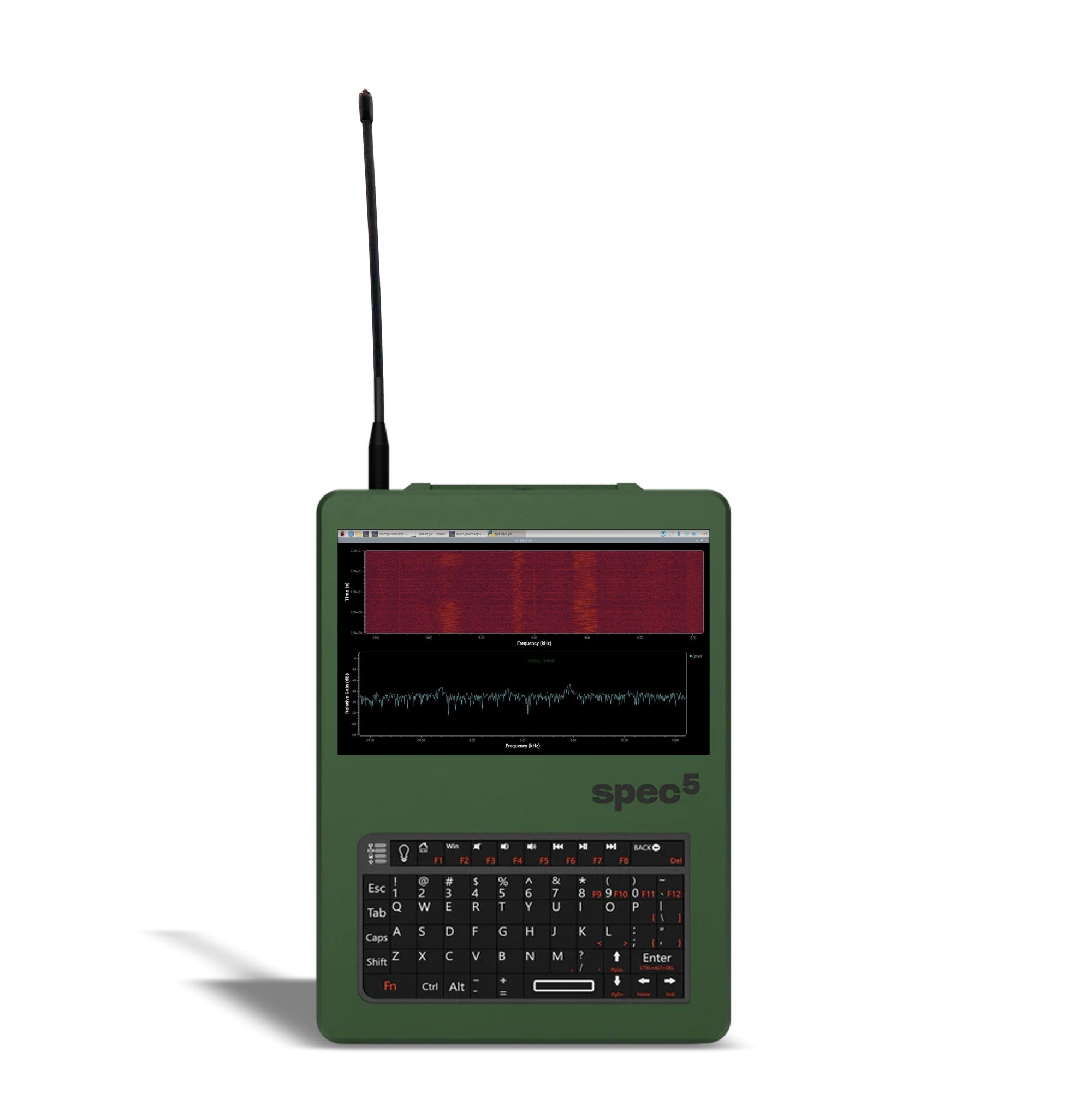

SpecFive Nomad2
Engineered for field operators, off-grid communicators, and RF enthusiasts, the SpecFive Nomad2 is an all-in-one portable intelligence hub that delivers seamless connectivity beyond the reach of cell towers. Powered by your choice of Raspberry Pi 4 or 5 running full Linux, it combines LoRa mesh communication, built-in RTL-SDR spectrum monitoring, integrated GPS, a 5-inch touchscreen, and a tactile keyboard in one rugged, self-contained workstation. With a hot-swappable battery tray and durable PETG housing, the Nomad2 is your command-and-control node wherever the mission takes you.
Base: Customizable Linux-based LoRa mesh workstation with GPS and touchscreen a bring-your-own-battery foundation for makers and developers.
Ready: Preconfigured Linux-based LoRa mesh workstation with GPS and touchscreen for fast off-grid deployment.

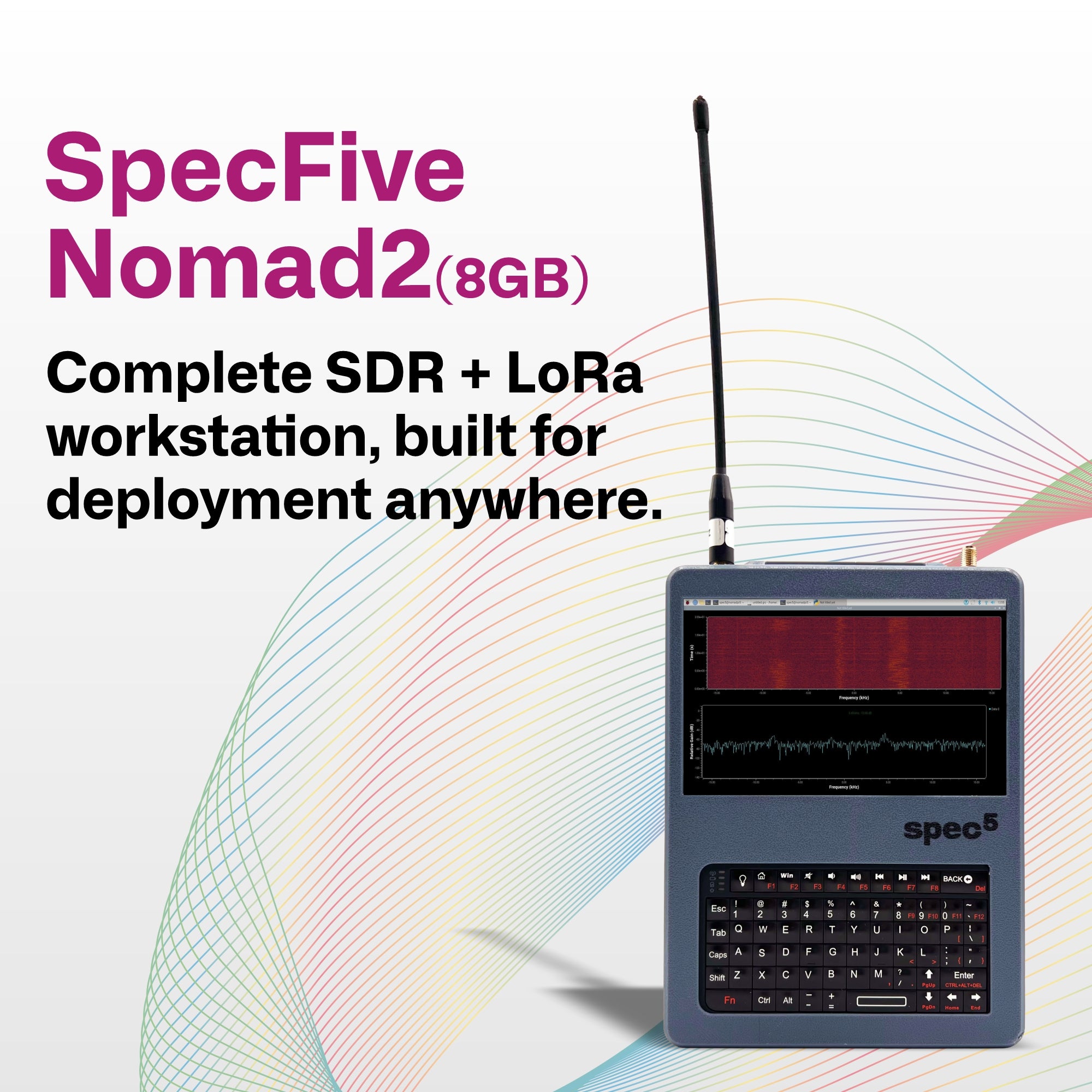

Recon: Linux-based SDR and mesh workstation for spectrum monitoring, RF reconnaissance, and off-grid field comms.
Regular price
$549.99
Sale price
$549.99
Regular price
Unit price
Save $0.00
SpecFive Nomad2
Product Description
Specs
User Guide

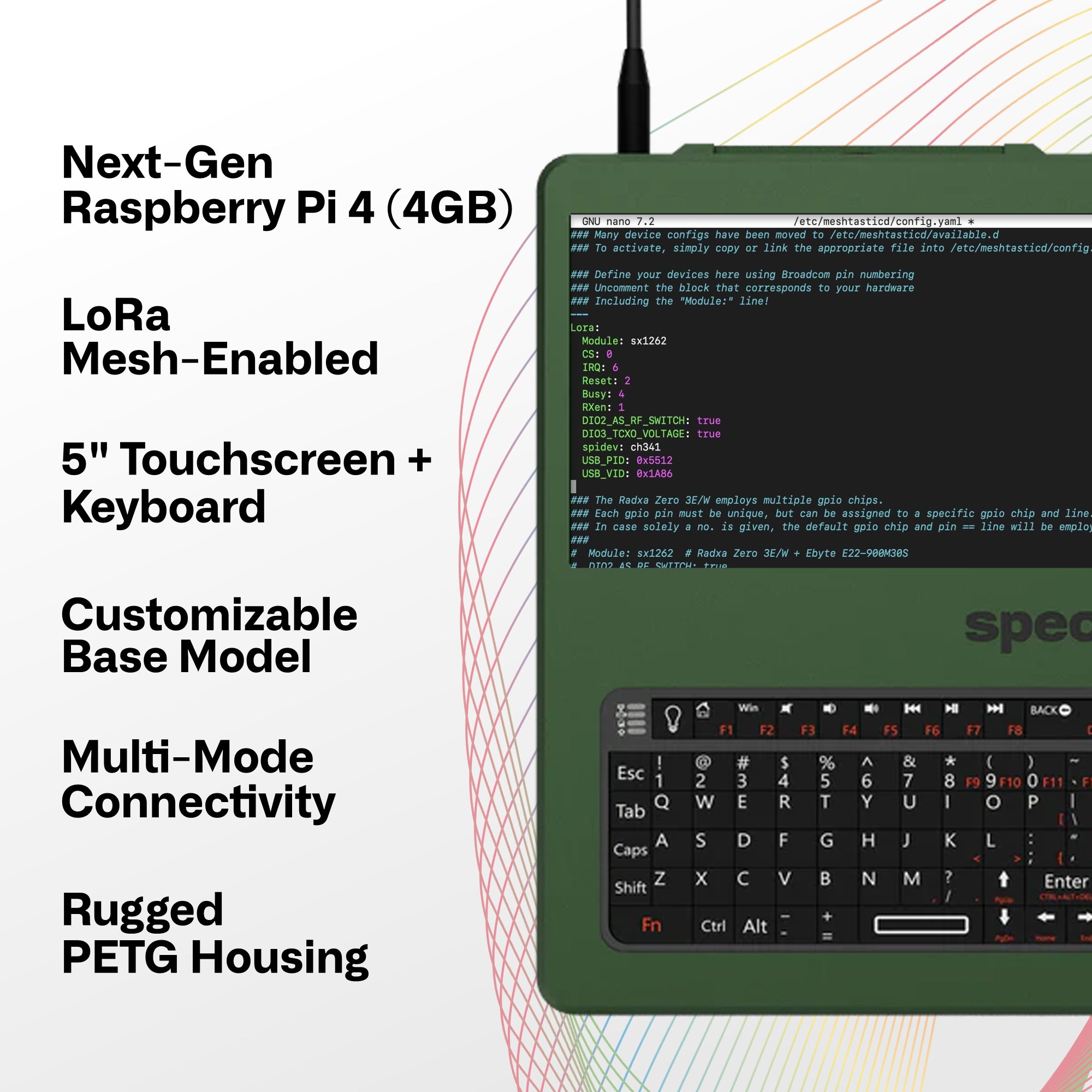

Introducing the SpecFive Nomad2: The Ultimate All-in-One Off-Grid Node
What's Included in the Box
- SpecFive Nomad2 Device (Raspberry Pi 4 or 5, per configuration)
- MeshAdv Mini LoRa/GPS Hat (pre-installed)
- 17cm Flexible 915 MHz LoRa Antenna
- Ceramic GPS Antenna
- RTL-SDR Standard Antenna (Recon model)
- 3S 18650 Battery Tray with 3x 2500mAh cells (Ready/Recon models)
- US 110V Wall Charger

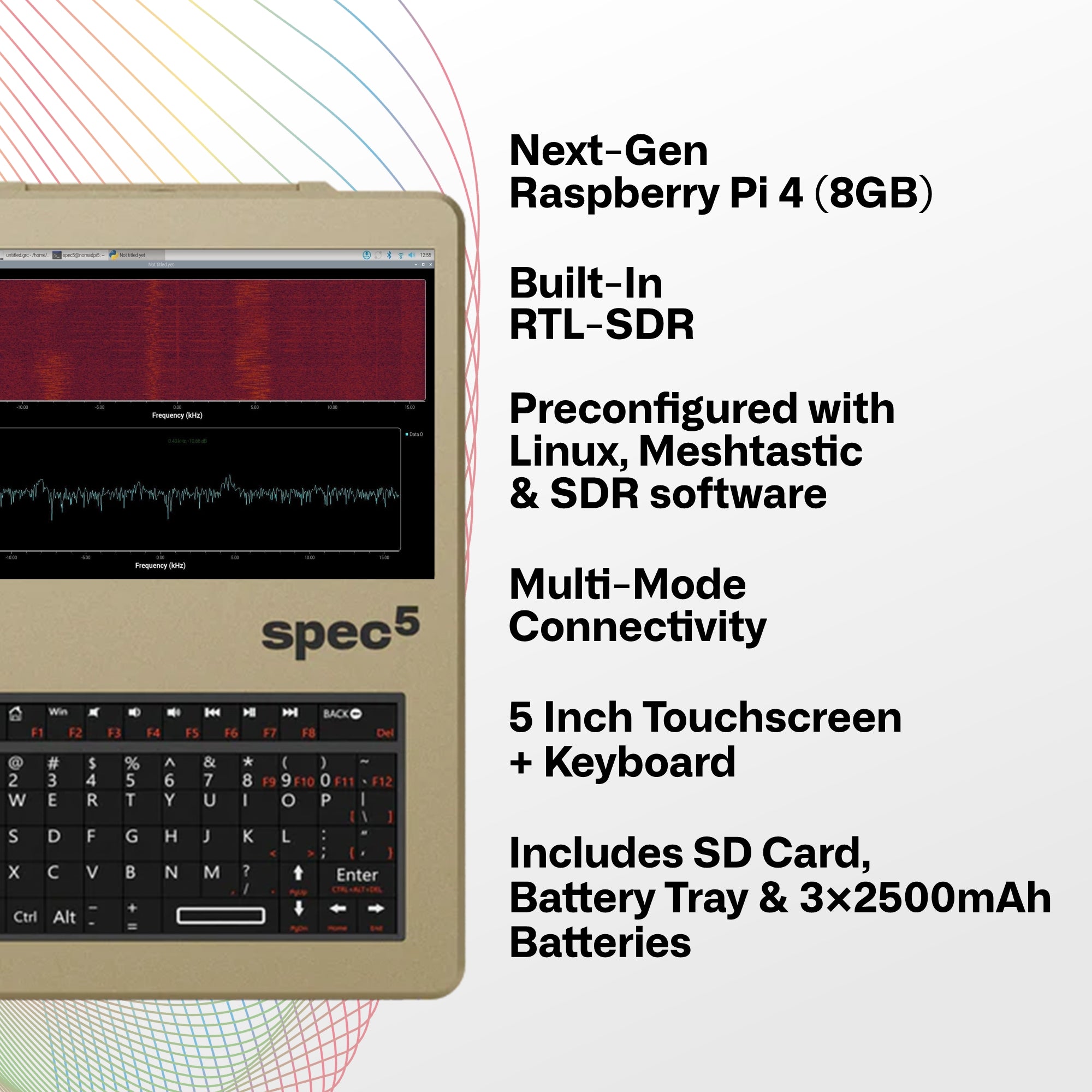

Key Features
- Multi-Mode Communication Suite: MeshAdv Mini LoRa/GPS Hat with SX1262 radio (E22-900M22S); fully compatible with meshtasticd and MQTT.

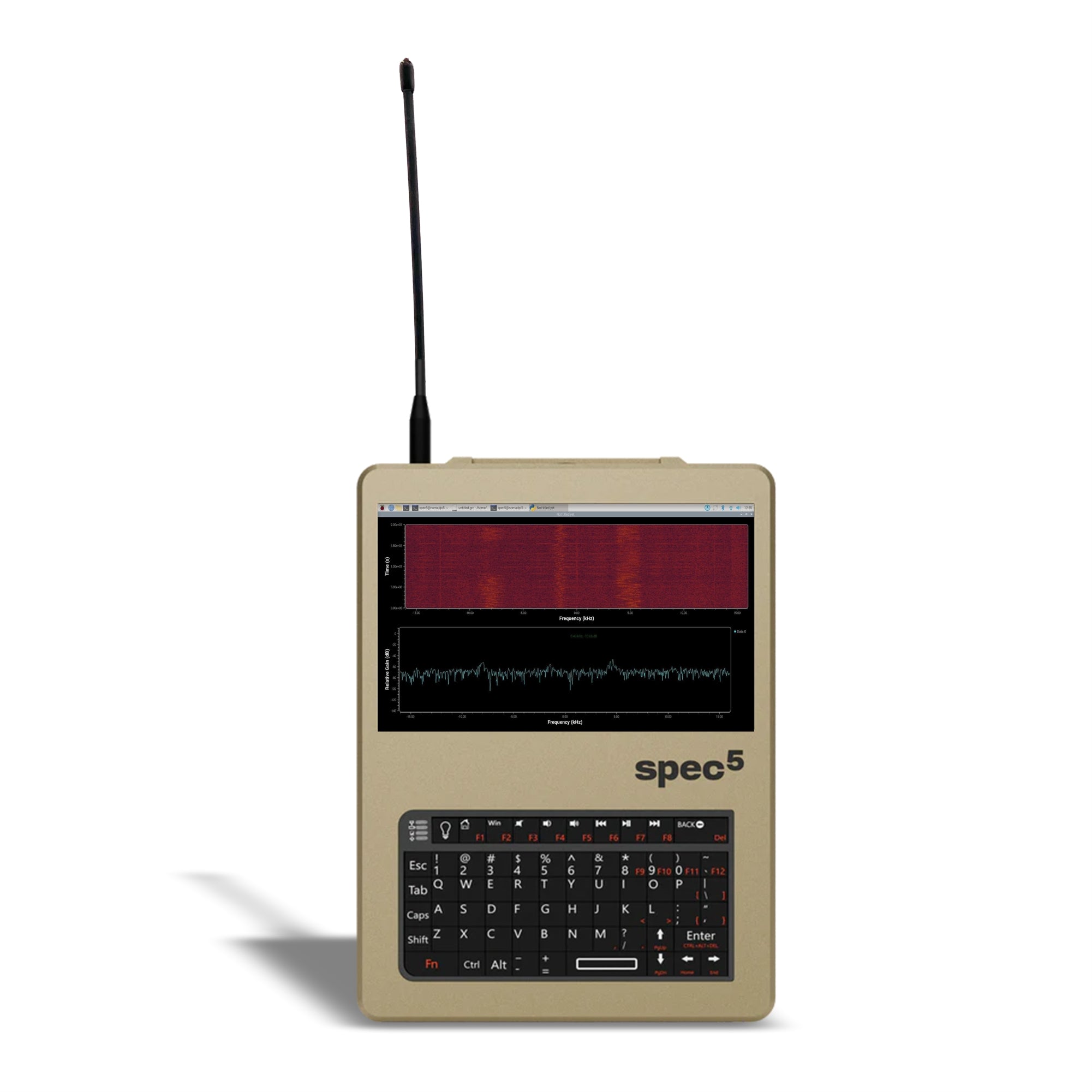

- Built-in RTL-SDR: Integrated radio for live RF monitoring, ADS-B tracking, weather data, and spectrum analysis, no dongles required.
- Full Linux Compute: Raspberry Pi 4 or 5 with a 5-inch touchscreen desktop, USB 2.0/3.0, Ethernet, Wi-Fi, and Bluetooth.
- Hot-Swappable Power: 3S 18650 battery tray (3x 2500mAh) for quick field swaps, with US 110V wall charger included.

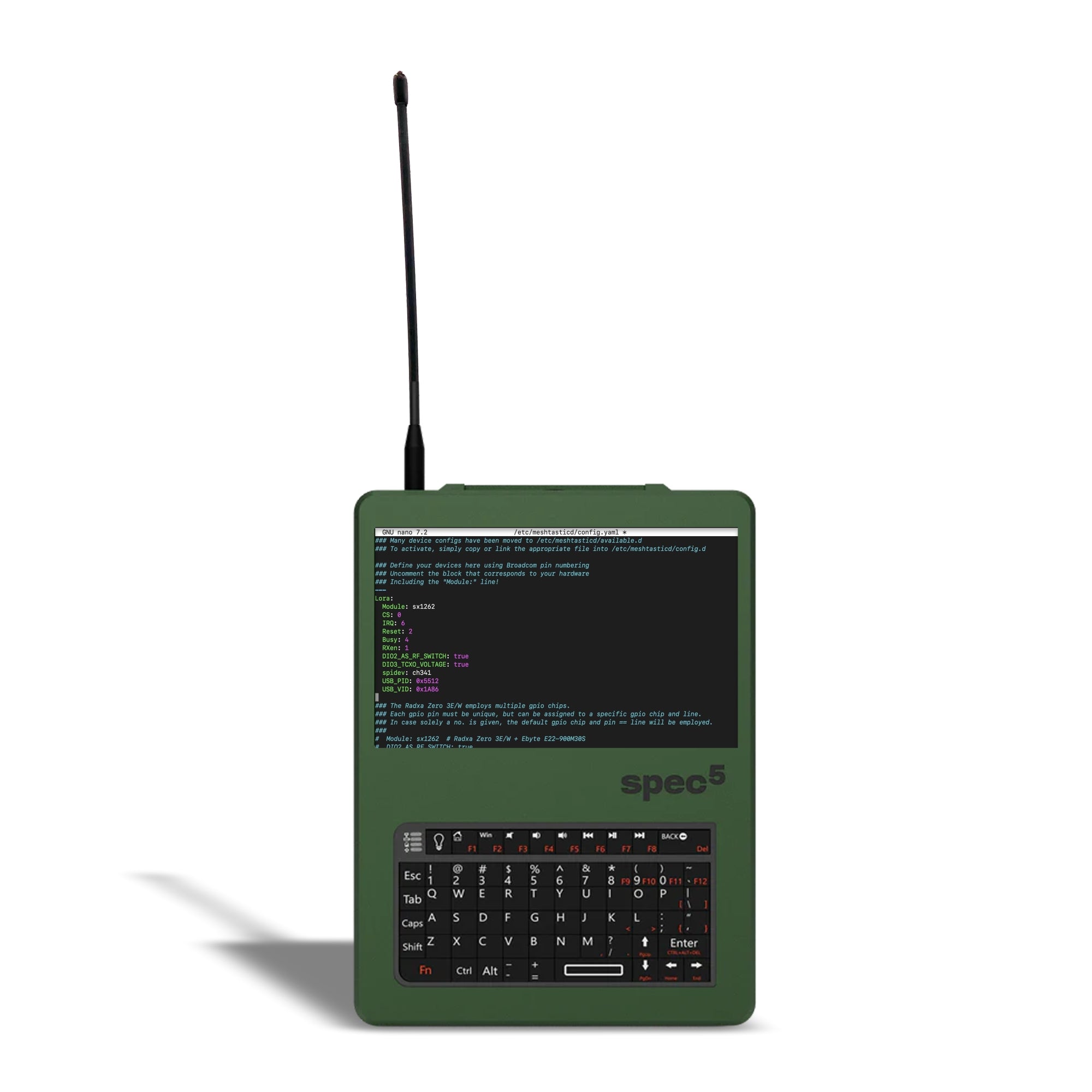

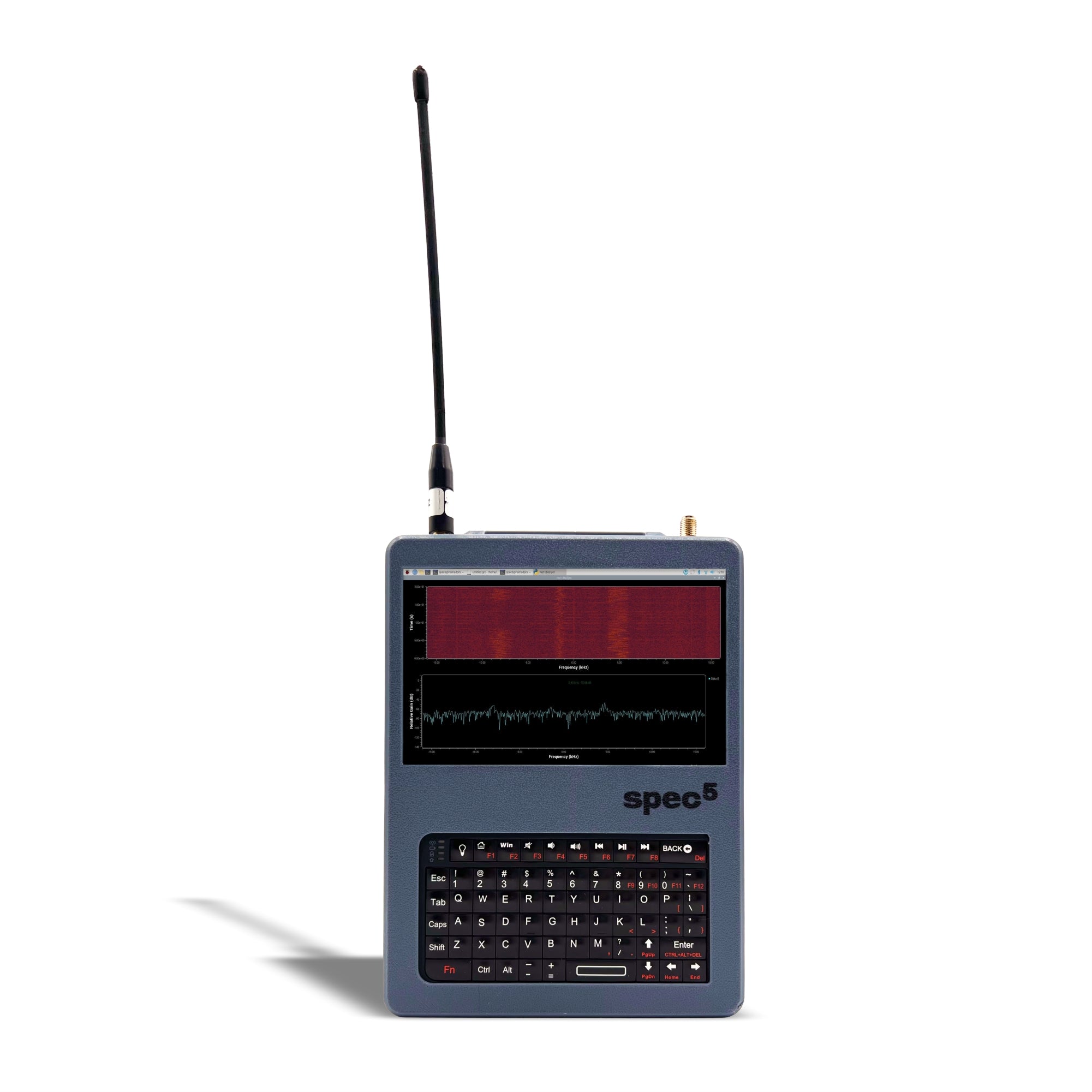

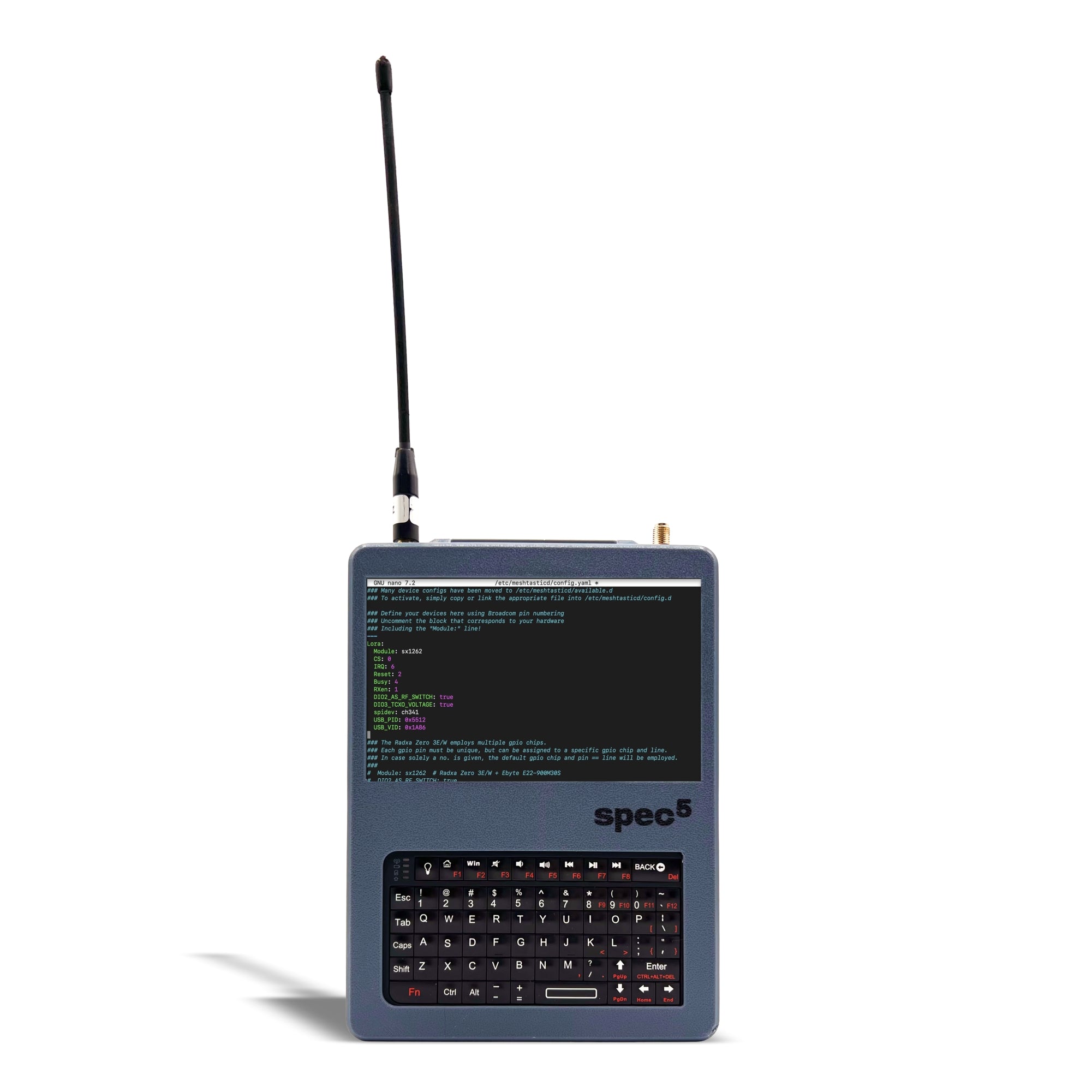

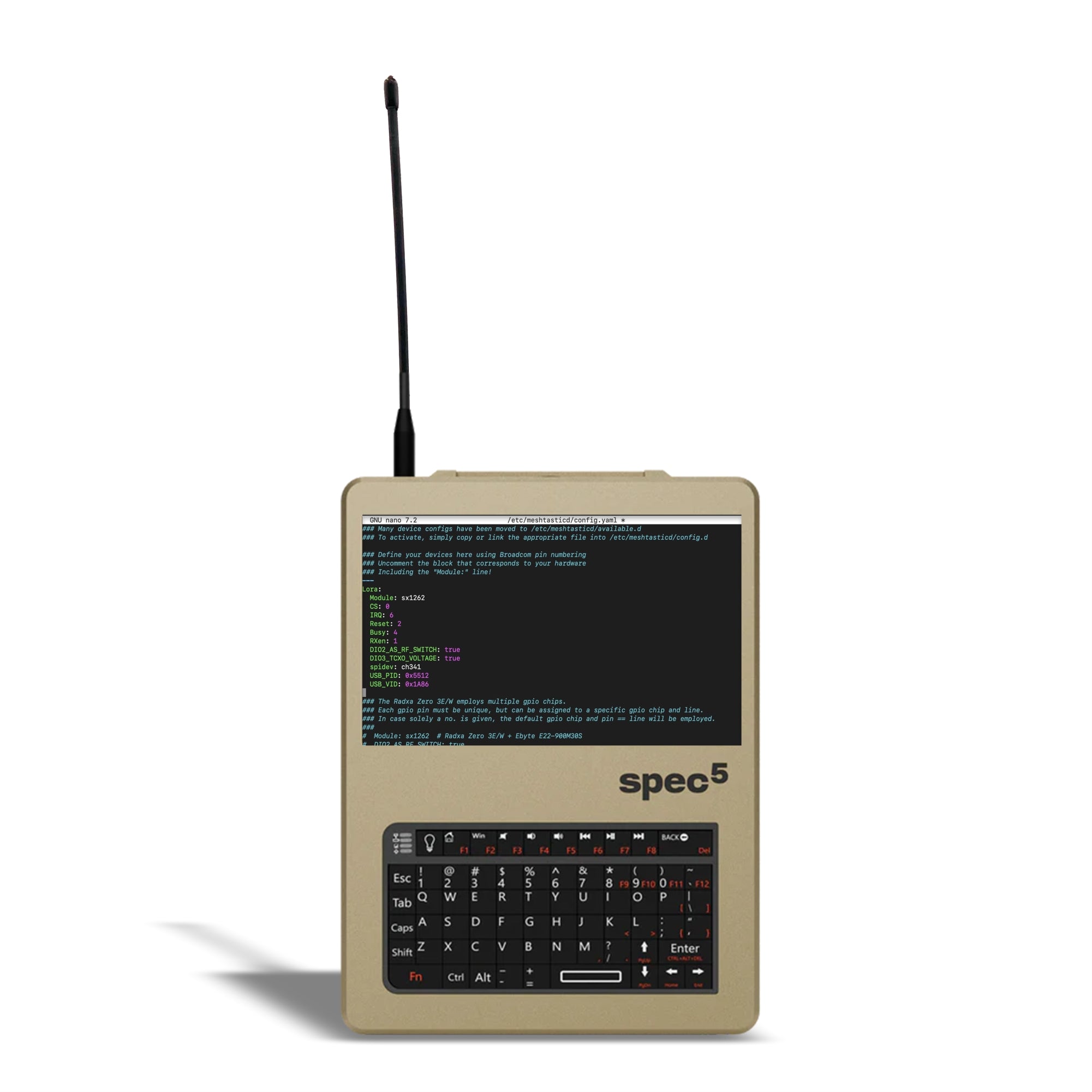

- Rugged & Ready: Durable PETG housing in Gray, Tactical Green, or Desert Sand, built for fast redeployment in demanding environments.
Use-Case Scenarios
- Mesh Relay Deployment: Extend your team's LoRa network across difficult terrain.
- SDR Ground Station: Monitor aircraft, weather, and local RF spectrum.
- Mobile Server / Command Node: Log data or host a Meshtastic BBS, fully SSH-accessible for remote operation.
- Emergency Preparedness: Reliable off-grid connectivity when infrastructure is down.
Deployment
- Plug-and-Play Linux: Power on to a full desktop with LoRa mesh, GPS, and SDR ready to go.
- Flexible Roles: Configure as a router node, store-and-forward relay, mobile server, or SDR ground station.
- Remote Management: Connect over SSH, Wi-Fi, or Ethernet for headless operation.
- Field-Durable Build: Compact, rugged, and redeployment-ready with quick battery swaps.
Disclaimer
The SpecFive Nomad2 operates within the 915 MHz frequency band and includes SDR reception capability. Ensure compliance with local frequency and RF-monitoring regulations. Setup and configuration of Meshtastic, meshtasticd, MQTT, or RTL-SDR software on your device or network is the responsibility of the user.
Additional Resources
Meshtastic Organization Website: https://meshtastic.org
Meshtastic YouTube Channel: https://www.youtube.com/meshtastic

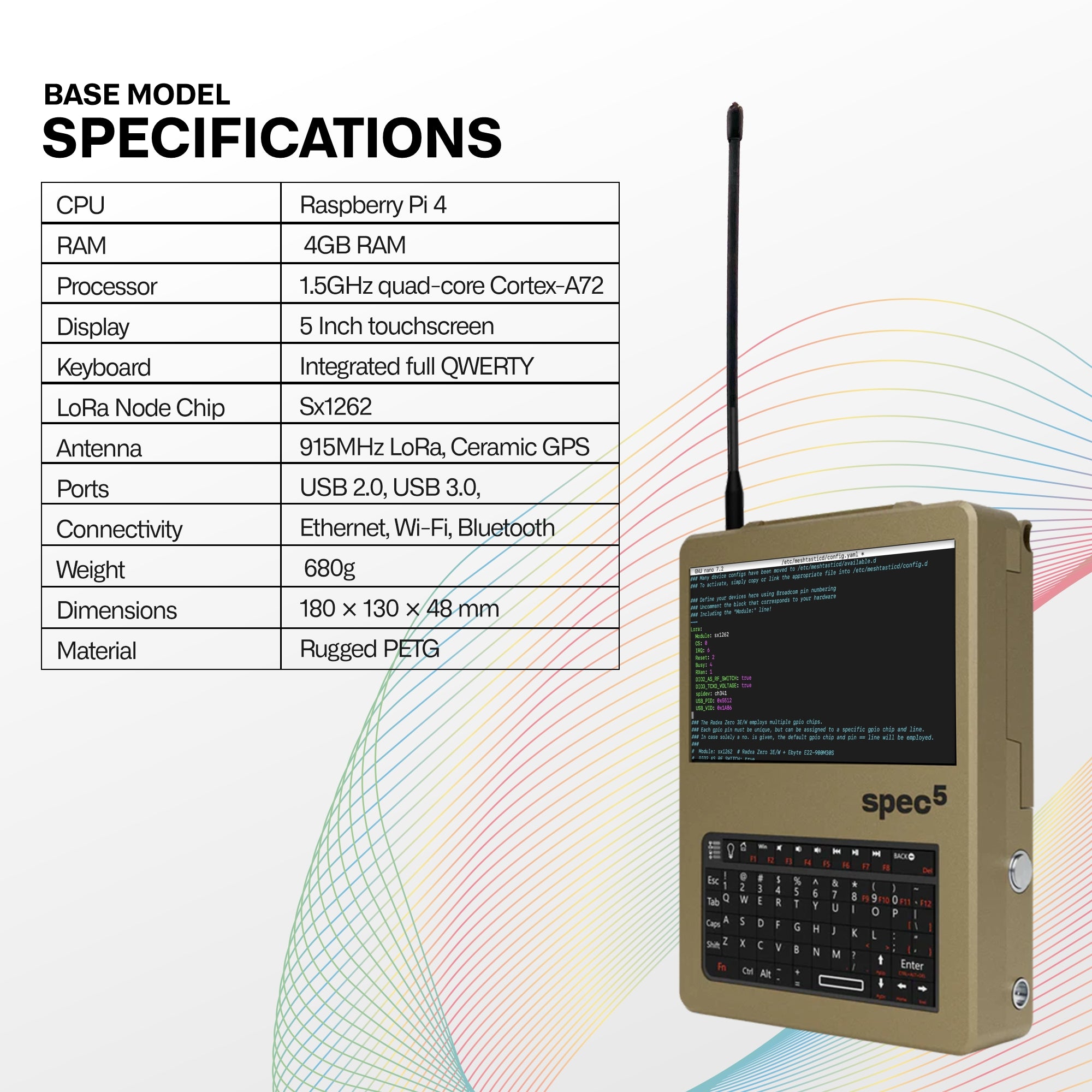

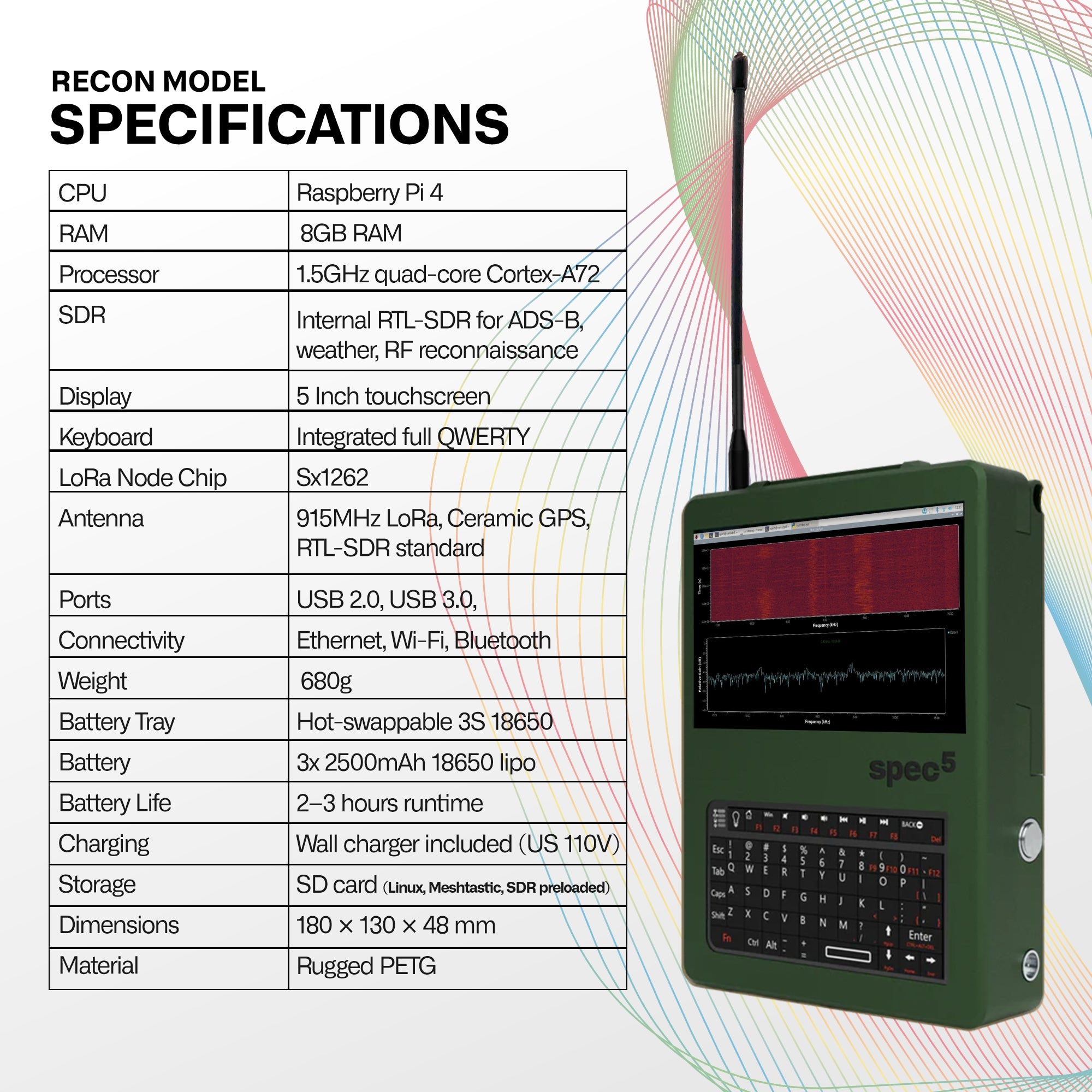

| Case Material | PETG (Gray, Tactical Green, or Desert Sand) |
|---|---|
| DIMMS | 180 x 130 x 48 mm |
| Weight | 680g |
| Compute | Raspberry Pi 4 or Raspberry Pi 5 (user choice), full Linux |
|---|---|
| Screen | 5 Inch Capacitive Touchscreen |
| Keyboard | Integrated tactile keyboard |
| LoRa/GPS Hat | MeshAdv Mini (E22-900M22S module) |
| LoRa Node Chip | SX1262 |
| SDR | Integrated RTL-SDR (Recon model) |
| Sensors & Expansion | GPS, Temperature Sensor, 5V Fan Header, Qwiic I2C, EEPROM |
| Ports & Interfaces | USB 2.0, USB 3.0, Ethernet, Wi-Fi, Bluetooth |
| Battery | 3x 2500mAh 18650 Li-ion (hot-swappable tray) |
|---|---|
| Battery Life | 2–3 Hours Runtime |
| Charging | US 110V Wall Charger (included) |
| Solar Charging | NA |
| Antenna | 17cm Flexible 915 MHz LoRa Antenna, Ceramic GPS Antenna, RTL-SDR Standard Antenna |
|---|---|
| Frequency | 915 MHz |
| Mesh Compatibility | meshtasticd, MQTT |
| Remote Access | Fully SSH-accessible (headless/remote operation) |
