Spec5 Relay 2-Pack
The Spec5 Relay 2-Pack is a solar-powered Meshtastic LoRa Relay System built for rugged, permanent installation on poles, buildings, or towers, ensuring reliable communication in remote areas or anywhere an expansive network is required. Get two relays and save $25 compared to buying them individually, a simple way to expand your mesh network while keeping costs down.
Regular price
$524.99
Sale price
$524.99
Regular price
Unit price
Spec5 Relay 2-Pack
Product Description
Specs
User Guide

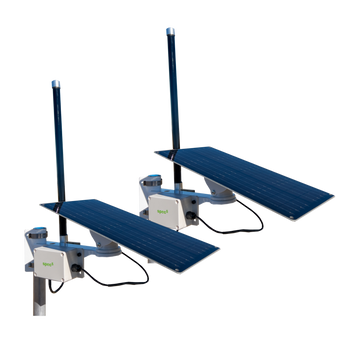

Spec5 Relay 2-Pack – Solar-Powered Meshtastic LoRa Relay System
What’s Included in the Box
- 2x Spec5 Relay Units
- 2x 12W Solar Panel
- 2x Mounting Hardware
- 2x RAK Wisblock LoRa Radio
- 2x Protective Enclosure
- 2x Solar Panel Mount (bracket)
- Qty (4) Internal 18650 LiPo Batteries
- 2x Long Range Antenna
- 2x Antenna Mount
Key Features
- Extended Range: Boosts LoRa network coverage up to 10 miles with line-of-sight.
- Solar-Powered Operation: Equipped with a 12W solar panel and dual 18650 batteries for continuous, off-grid functionality.
-
Long-Range Communication: The Spec5 Relay, equipped with a 50 cm outdoor IP67 waterproof antenna, extends communication ranges up to 1-3 miles in urban environments and 5-10 miles in rural areas, depending on mounting height and line of sight.
- Weatherproof Design: Rugged enclosure protects against harsh environmental conditions.
- Autonomous Functionality: Operates independently to maintain network connectivity without manual intervention.
- Easy Integration: Seamlessly connects with existing Meshtastic networks.
Use-Case Scenarios
- Remote Base Stations: Establish communication hubs in isolated areas.
- Disaster Response: Maintain network integrity during emergencies.
- Outdoor Events: Provide reliable communication infrastructure for large gatherings.
Deployment
- Simple Installation: Mount using included hardware; solar panel ensures continuous power supply.
- Network Expansion: Deploy multiple units to create a robust communication mesh.
- Low Maintenance: Designed for long-term, unattended operation.
Disclaimer
The Spec5 Relay is optimized for use within the 915 MHz frequency band. Ensure compliance with local frequency regulations.
Additional Resources
- Meshtastic Organization Website: https://meshtastic.org
- Meshtastic YouTube Channel: https://www.youtube.com/meshtastic
| Case Material | PETG |
|---|---|
| DIMMS | 16 x 10 x 7 in |
| Weight | 2.5 lbs |
| Firmware | Meshtastic, ATAK, MeshCore |
| MCU | 32-bit ARM® Cortex™-M4 |
|---|---|
| LORA Node Chip | NA |
| RAM | 1 MB |
| FLASH | 256 KB |
| Battery | 2 x 18650 |
|---|---|
| Battery Life | 8 Hours Active / 24 Hours Standby |
| Charging | USB-C 5 Volt |
| Solar Charging | Active: Continuous Charging |
| Antenna | 50 cm Outdoor IP67 Waterproof 8DBI WiFi Fiberglass Aerial |
|---|---|
| Frequency | 915 mHz |
| Urban Range | ~1-3 Miles Depending On Mounting Height |
| RuRal Range | ~5-10 Miles Depending On Mounting Height |
