Spec5 Nomad 2
Spec5 Nomad 2

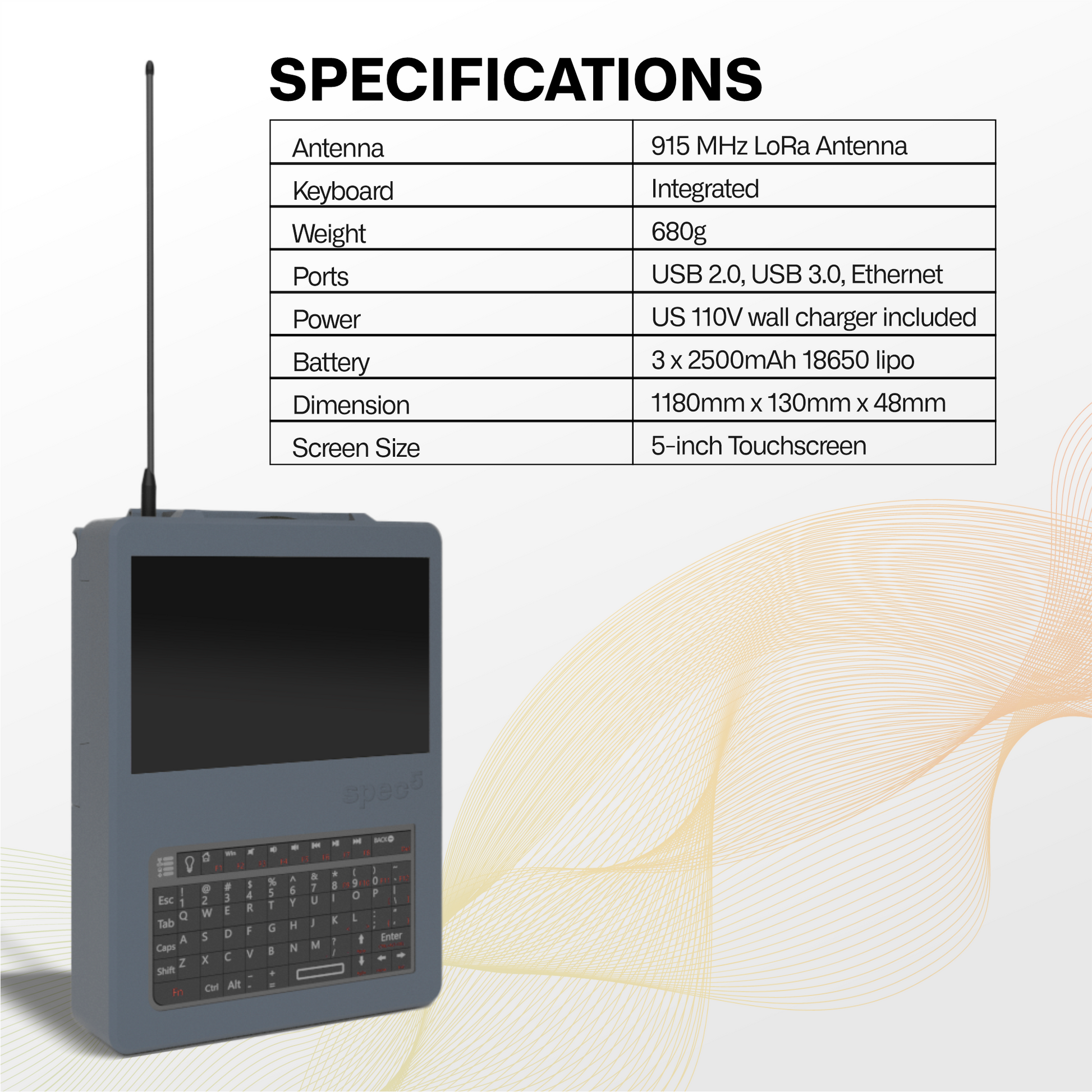

| Case Material | PETG |
|---|---|
| DIMMS | 180mm x 130mm x 48mm |
| Weight | 680g |
| Screen | 5-inch touchscreen |
| MCU | ESP32S3 |
|---|---|
| LOra Node Chip | SX1262 |
| Communication | Meshtastic, MQTT-ready |
| CPU | Raspberry Pi 4 or Raspberry Pi 5 |
|---|---|
| RAM | 4GB or 8GB |
| Storage | SD card (included with Ready/Recon) |
| OS | Full Linux Desktop |

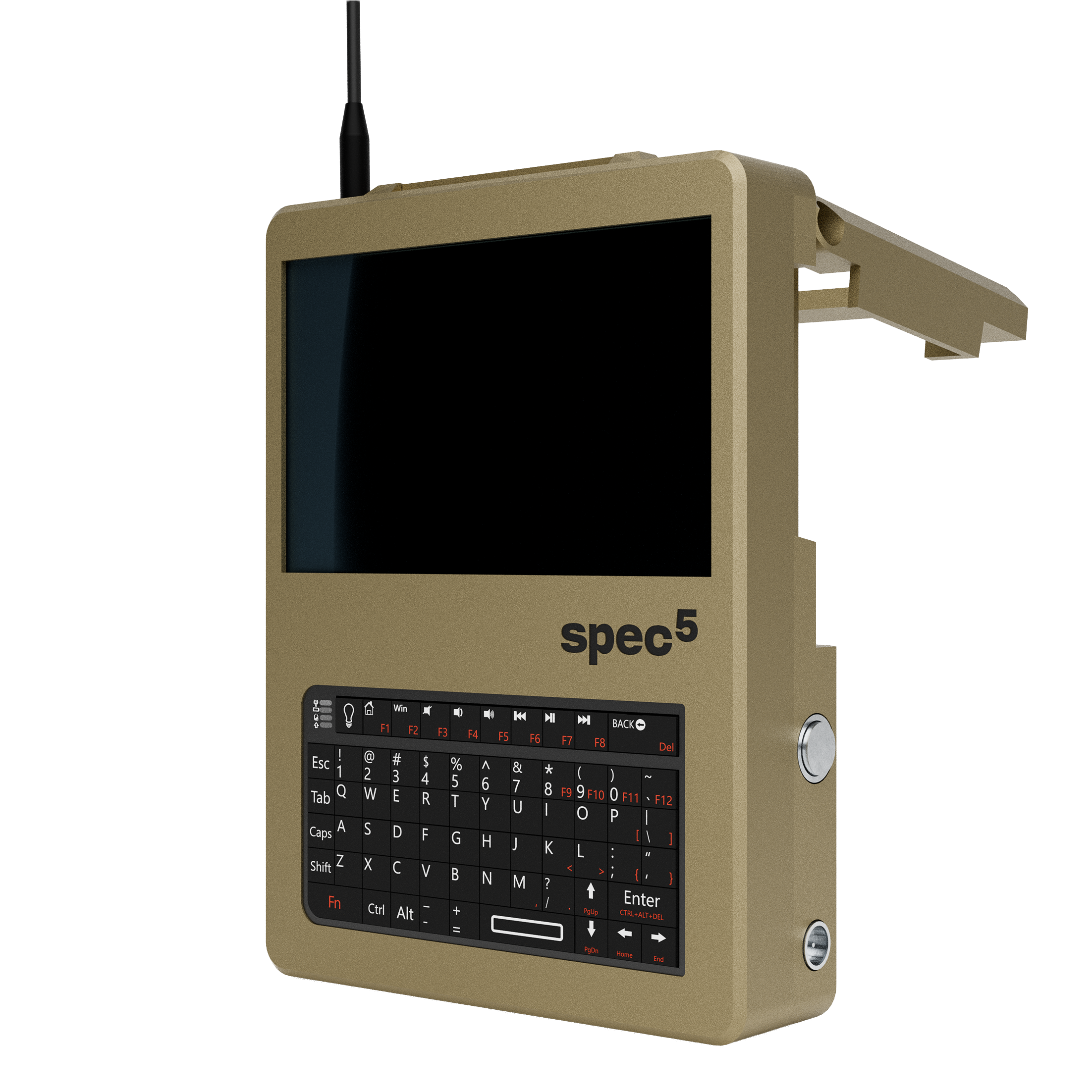

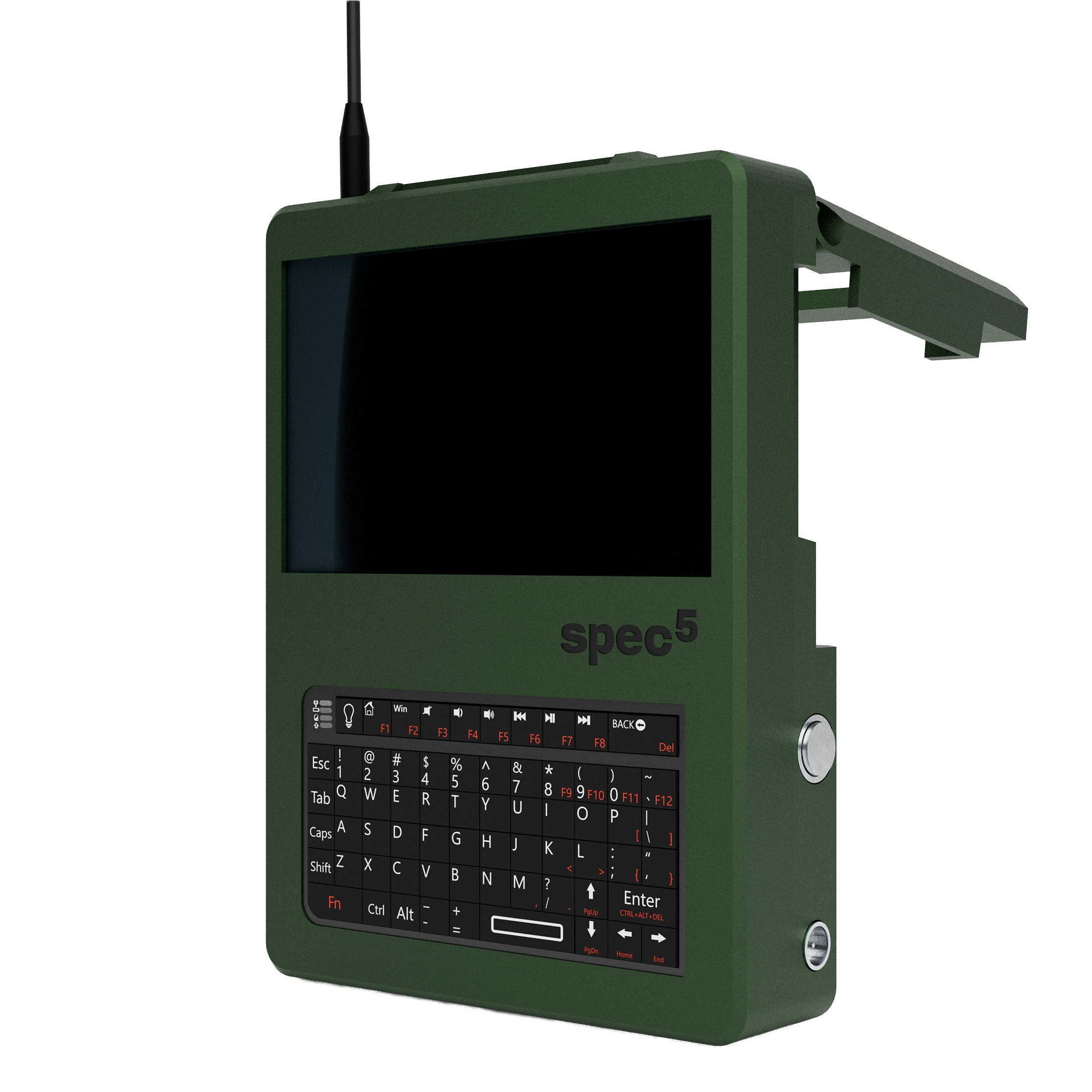

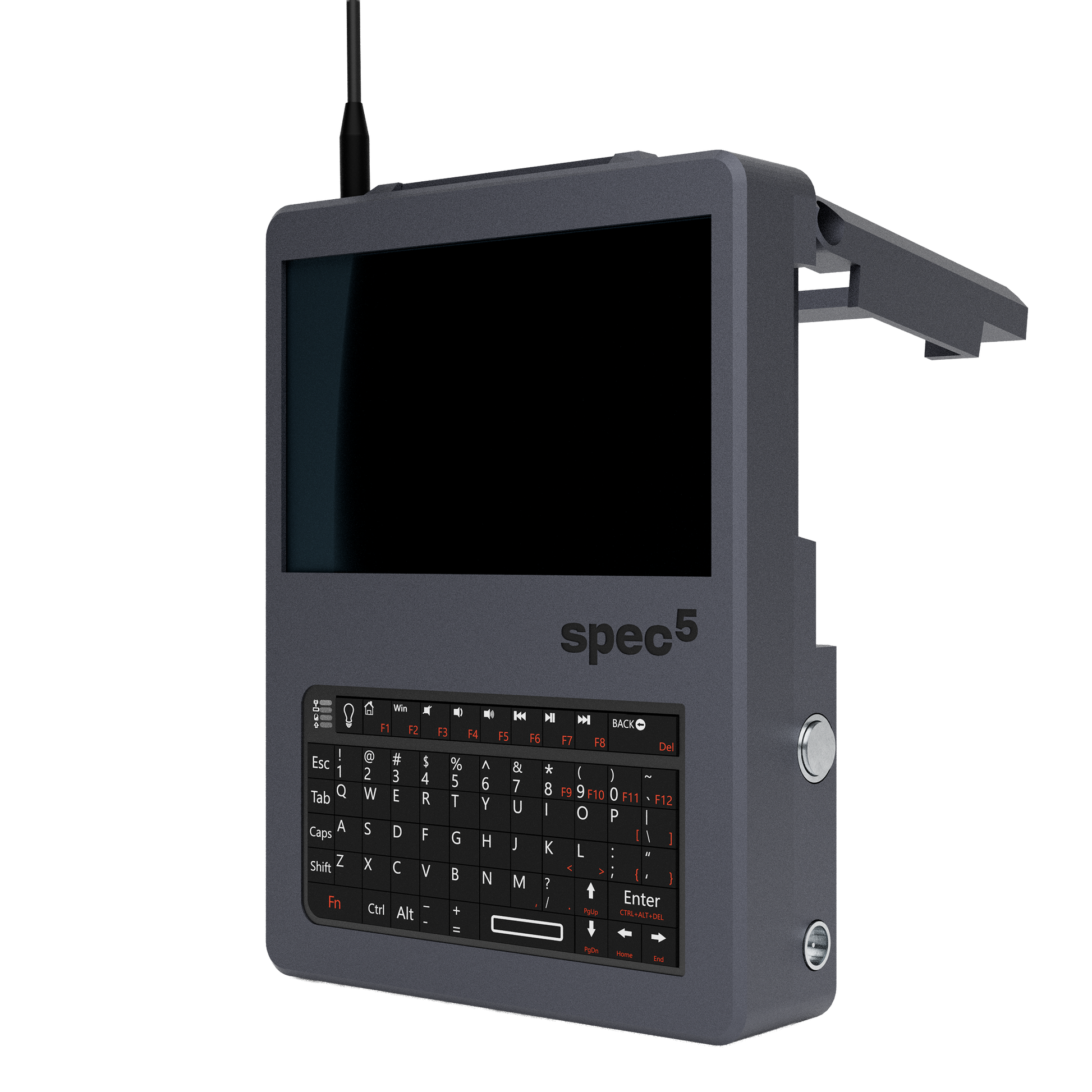

| Battery Tray | Hot-swappable 3S 18650 |
|---|---|
| Battery | 3x 2500mAh 18650 lipo (user-swappable) |
| Battery Life | 2–3 hours runtime, with wall charger included (US 110V) |
| Charging | Wall charger included (US 110V) |
| Antenna | 17cm flexible 915MHz LoRa, Ceramic GPS, RTL-SDR standard (Recon only) |
|---|---|
| Frequency | 915 MHz |
| Ports & Interfaces | USB 2.0, USB 3.0, Ethernet, Wi-Fi, Bluetooth |
| Support | Ethernet, Wi-Fi, and Bluetooth |

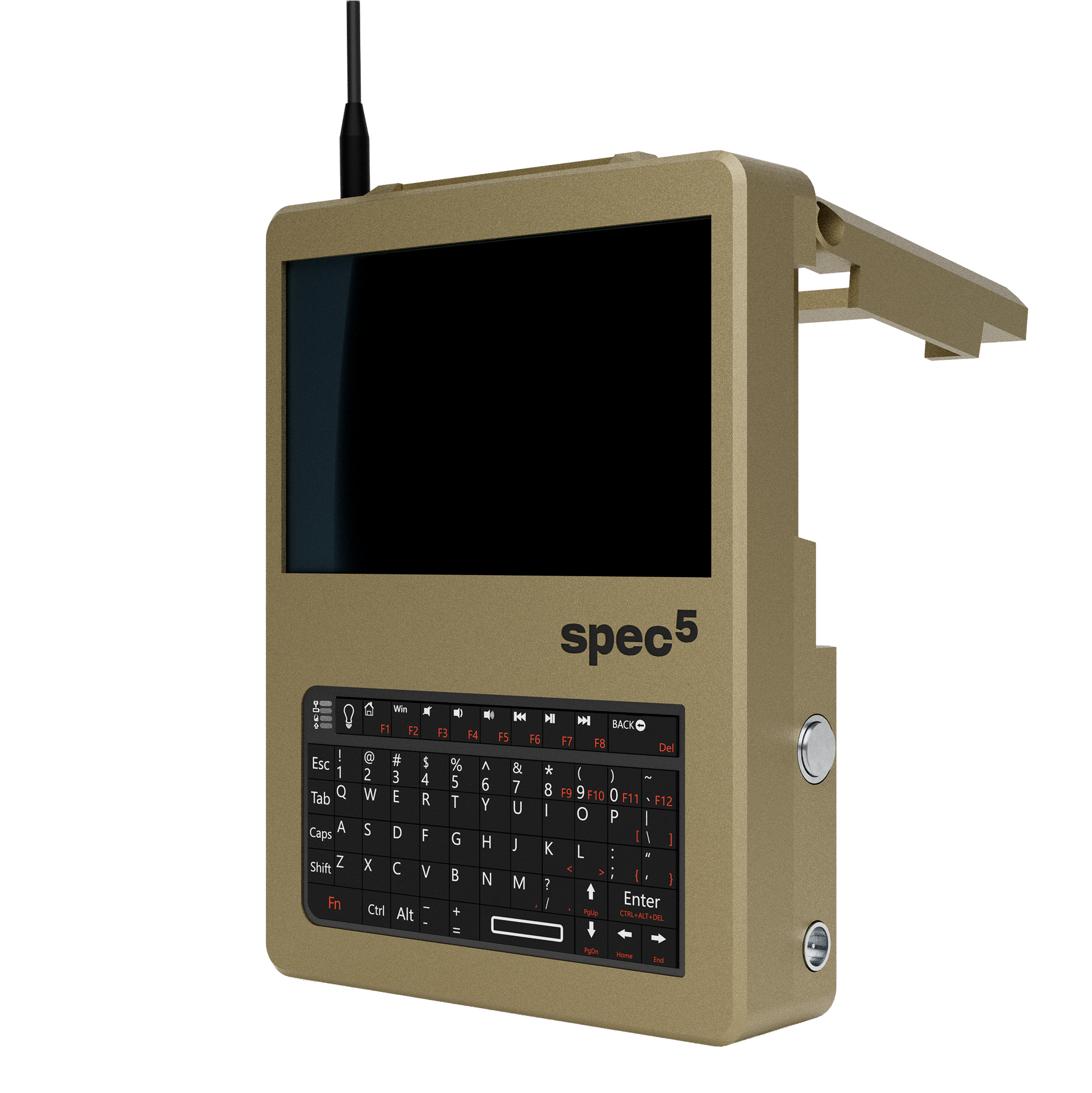

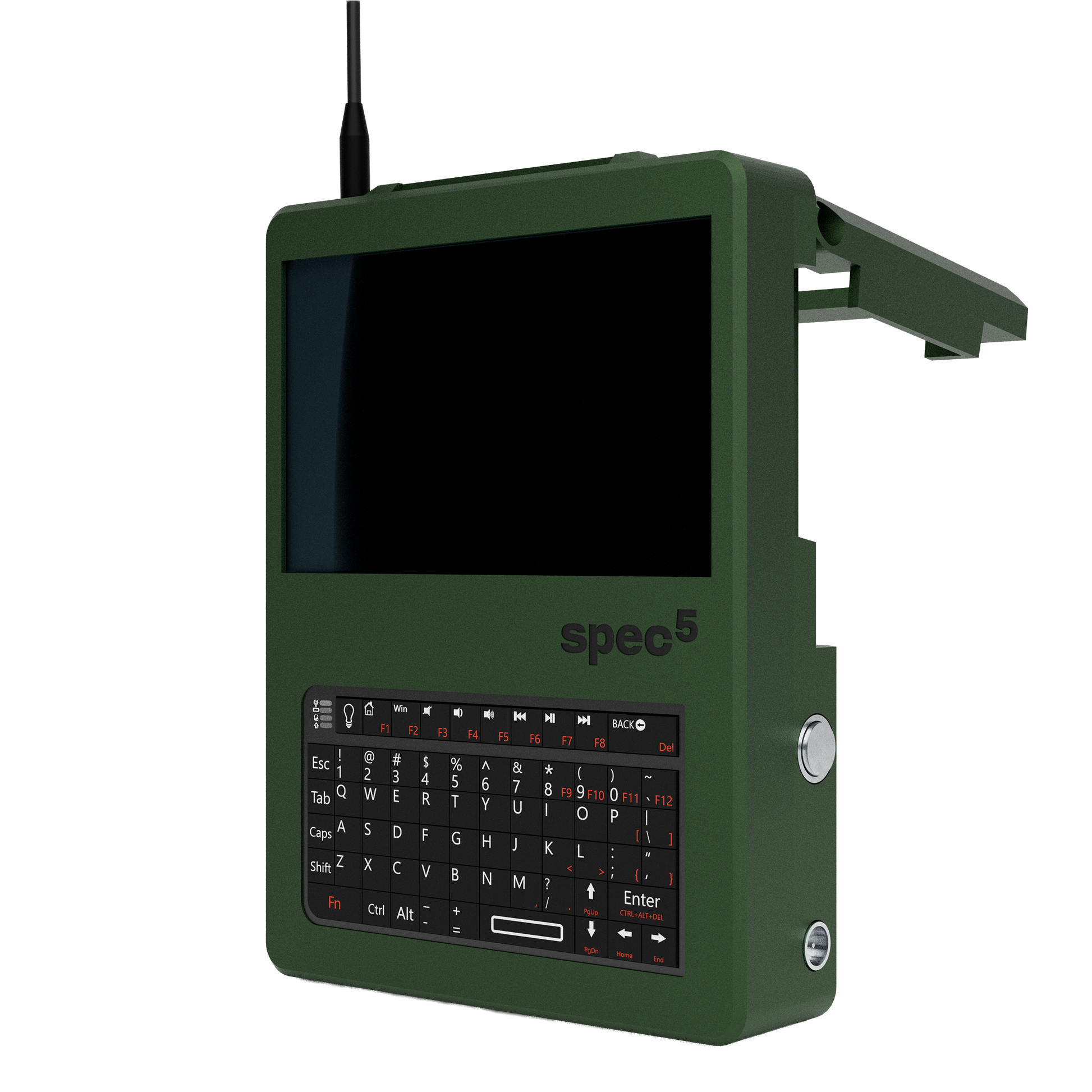

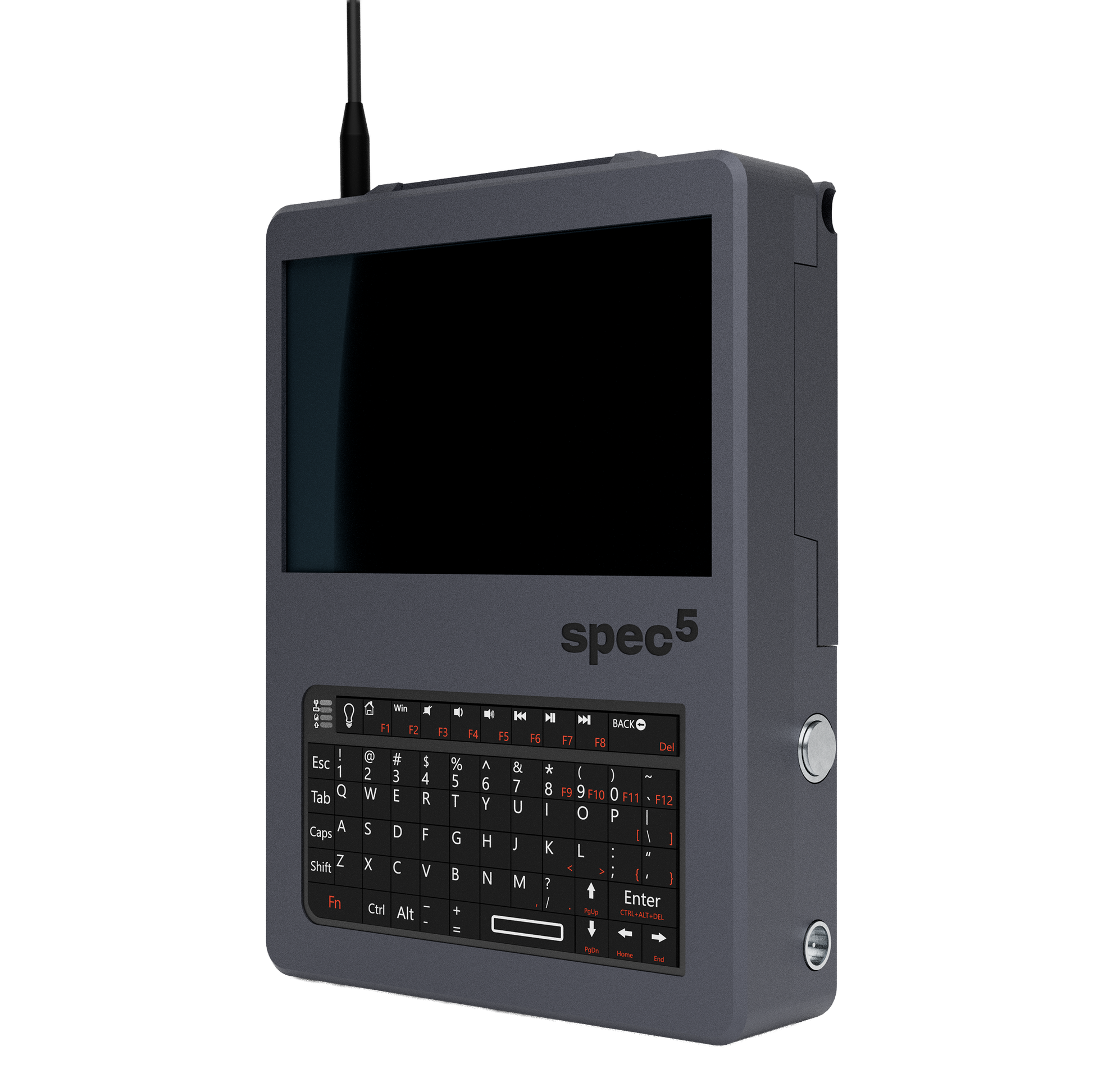

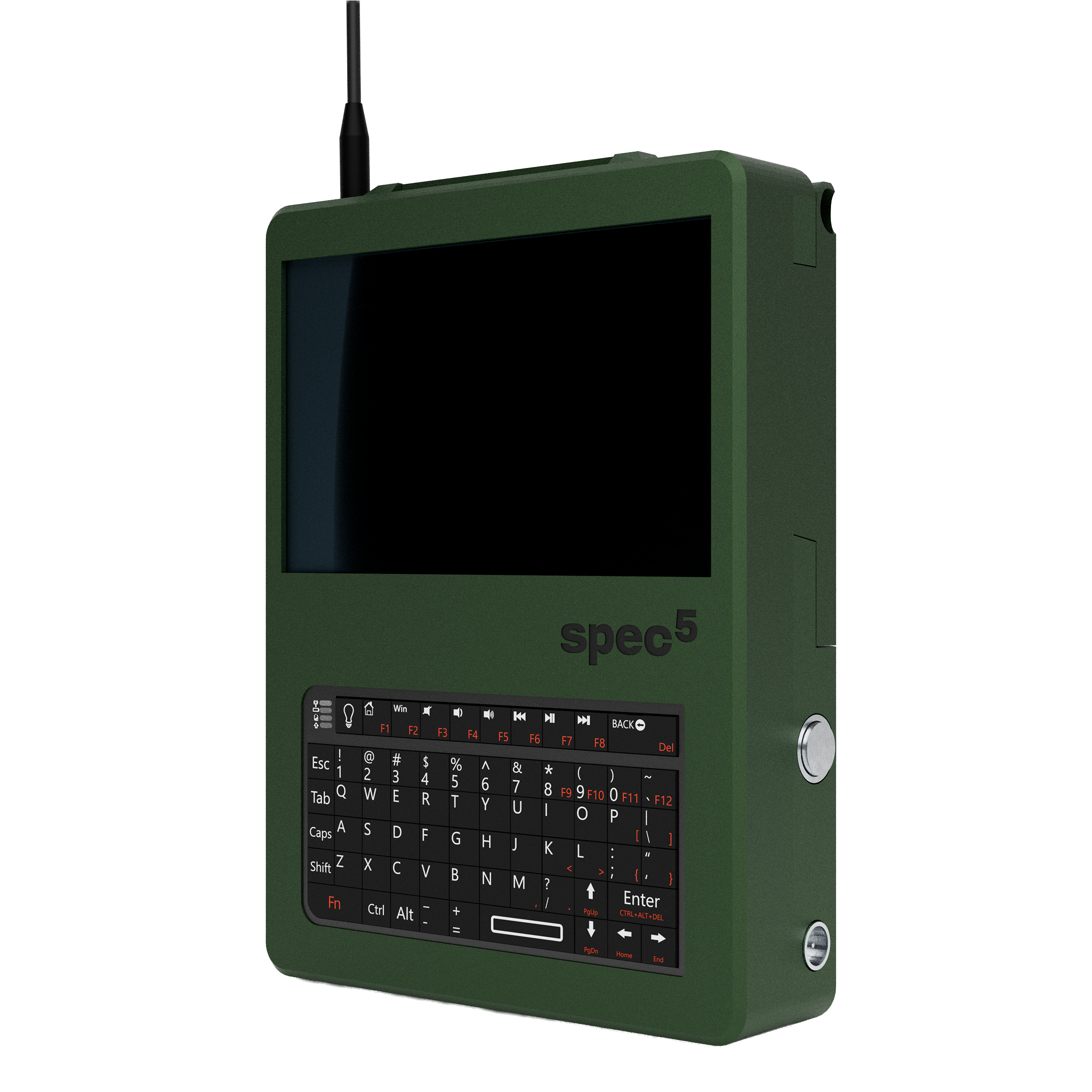

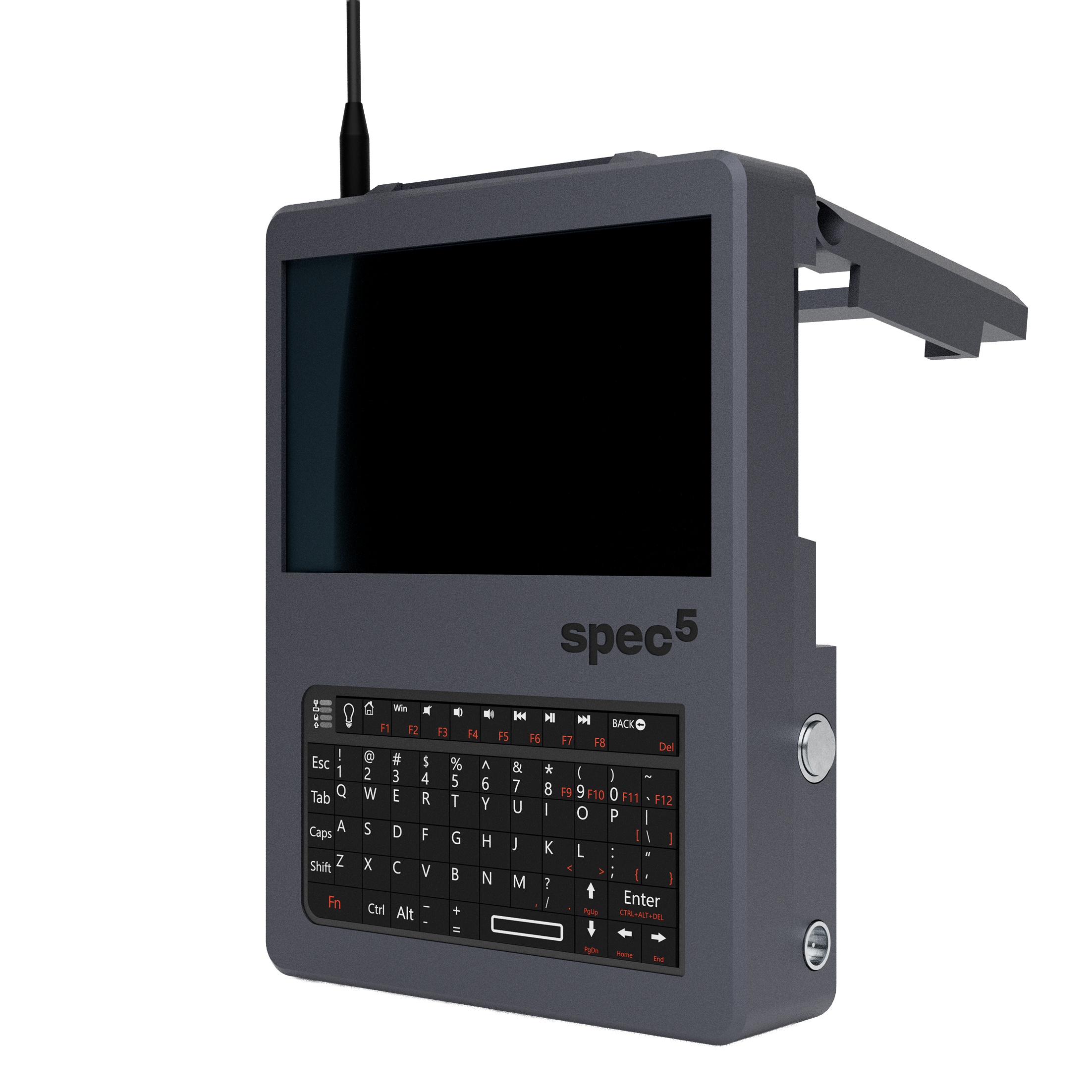

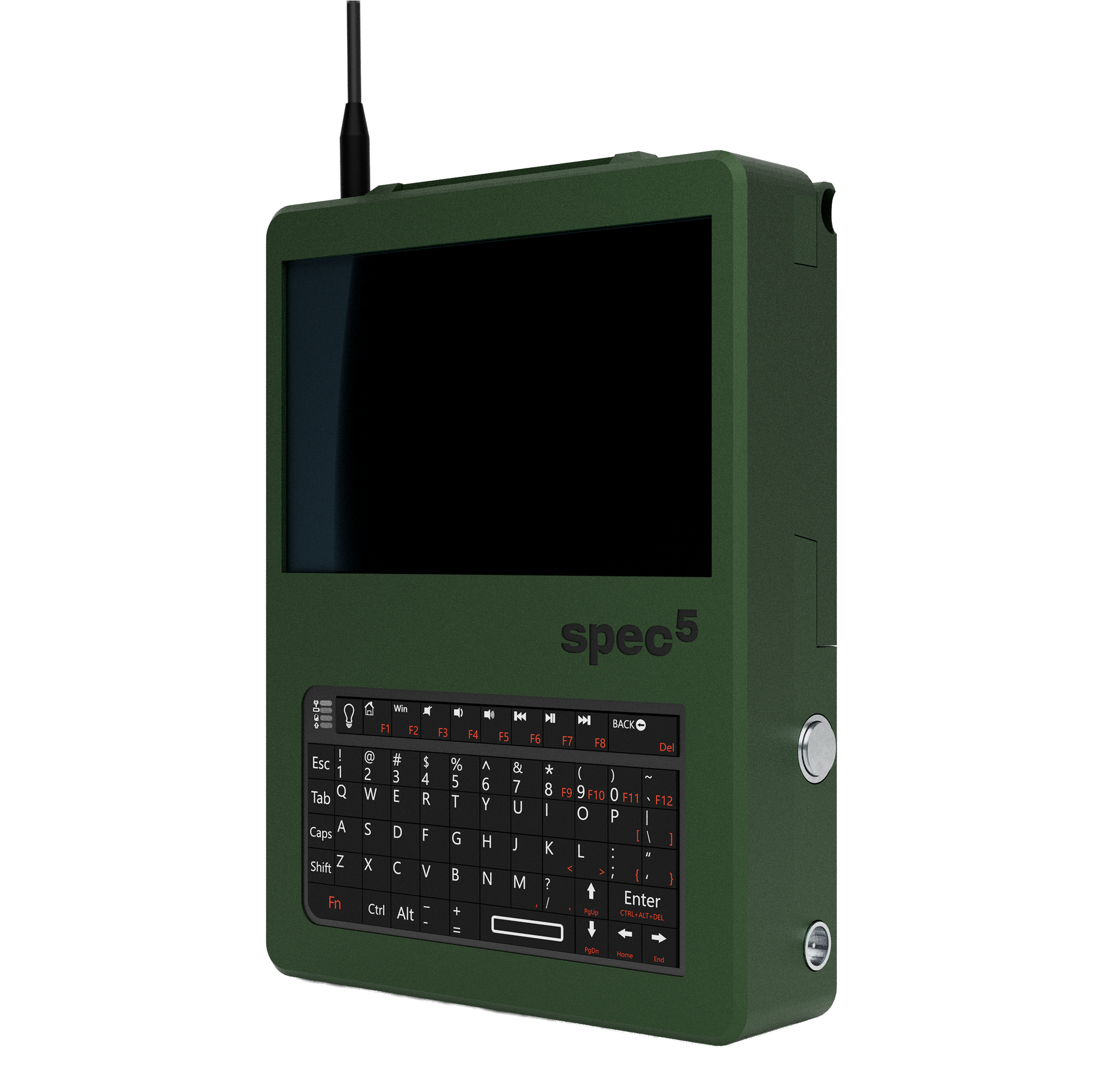

Introducing the SpecFive Nomad 2: The Ultimate Off-Grid Linux Workstation for Mesh Networking, SDR, and Field Control
What's Included:
- SpecFive Nomad 2 (Select: Pi4 or Pi5 | 4GB or 8GB RAM)
- LoRa Antenna
- GPS Antenna
- Protective Carry Case
Important Notes on Model Variants:
-
Base - Ships without SDR, SD card, or batteries. Ideal for developers who want to build their own setup.
-
Ready - Includes SD card, battery tray, and batteries. No SDR.
-
Recon - Fully equipped: built-in RTL-SDR, SD card, antennas, battery tray, and batteries.
Key Features
Modular Linux-Based Platform
At its core, the Nomad 2 is a full Linux computer powered by Raspberry Pi 4 or 5, capable of running edge computing workloads, MQTT, Meshtastic, or custom automation workflows, all without internet.
Choose Your Pi Version
-
Raspberry Pi 4 (4GB / 8GB) - Power-efficient and field-tested for longer runtime and lower heat.
-
Raspberry Pi 5 (4GB / 8GB) - High-performance computing with PCIe support, perfect for SDR decoding, analytics, and responsive multitasking.
Flexible Model Configurations
-
Base: Core board with LoRa + GPS. No SDR, SD card, or batteries.
-
Ready: Includes SD card, battery tray, and batteries, prepped for fast deployment.
-
Recon: Fully equipped with RTL-SDR (24 MHz - 1766 MHz, receive-only), SD card, antennas, tray, and batteries, ready for full-spectrum RF ops.
Built-In Mesh Networking
Equipped with an SX1262 LoRa radio and ceramic GPS antenna, the Nomad 2 enables long-range, peer-to-peer communication for teams operating without cellular or satellite access.

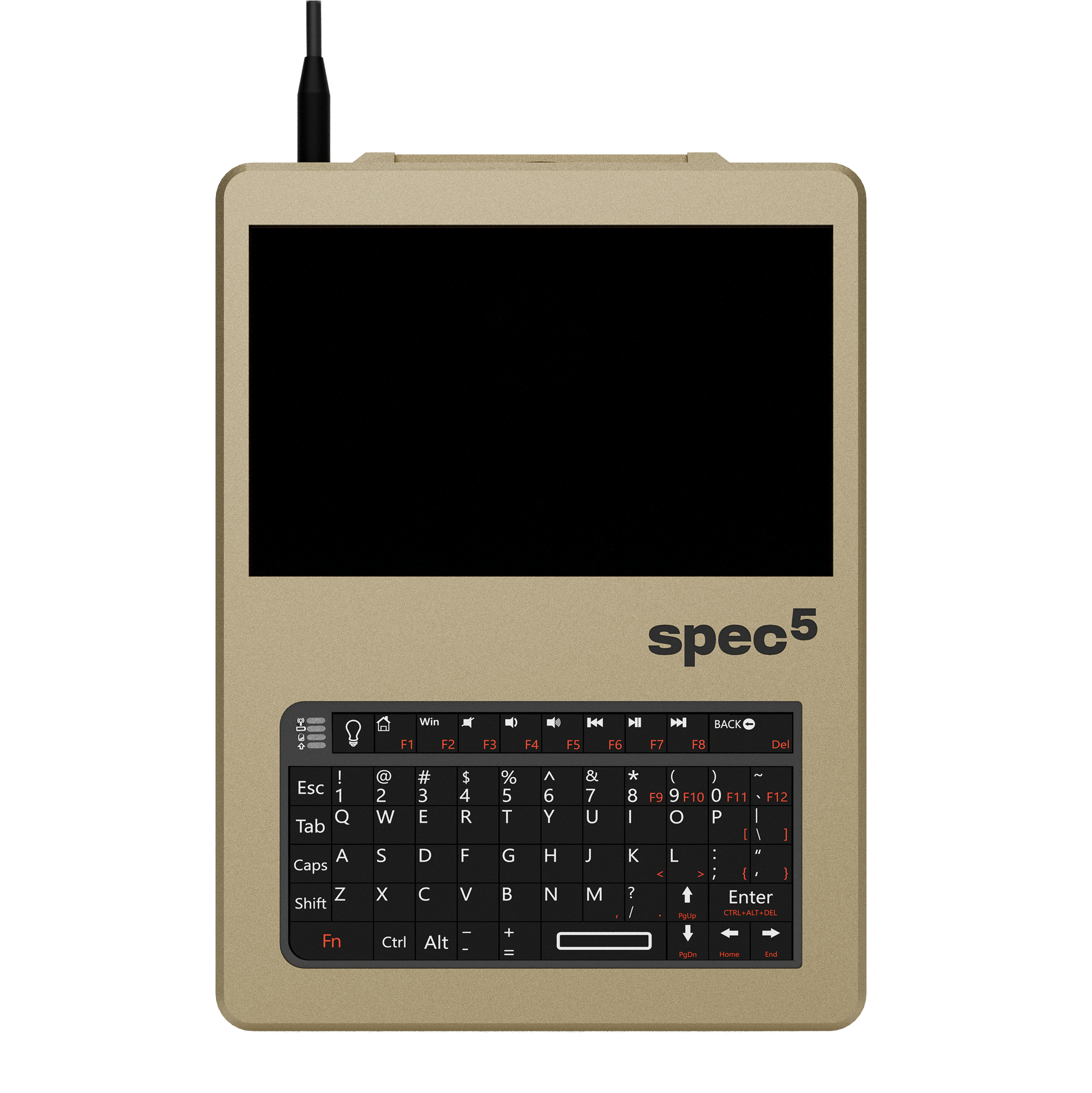

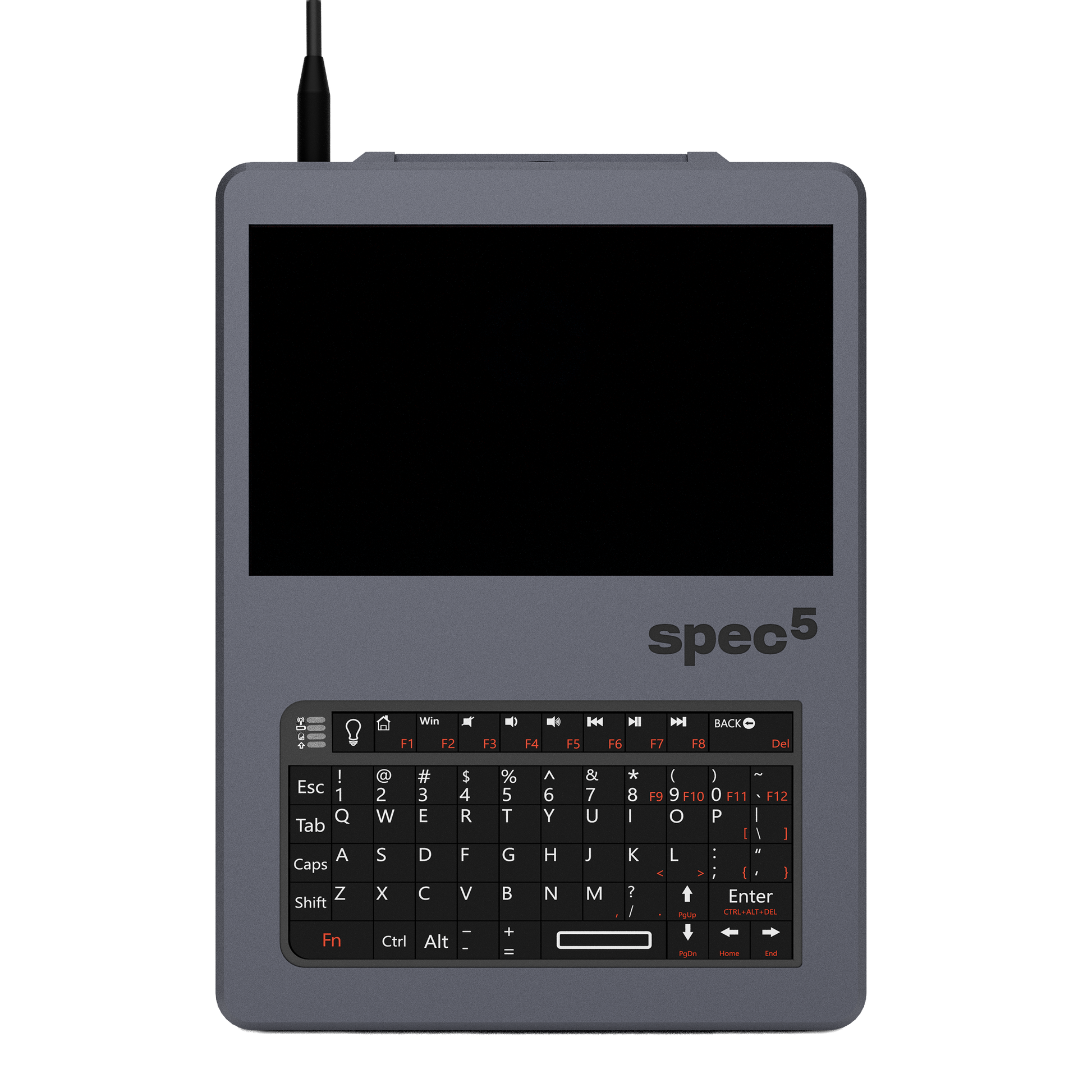

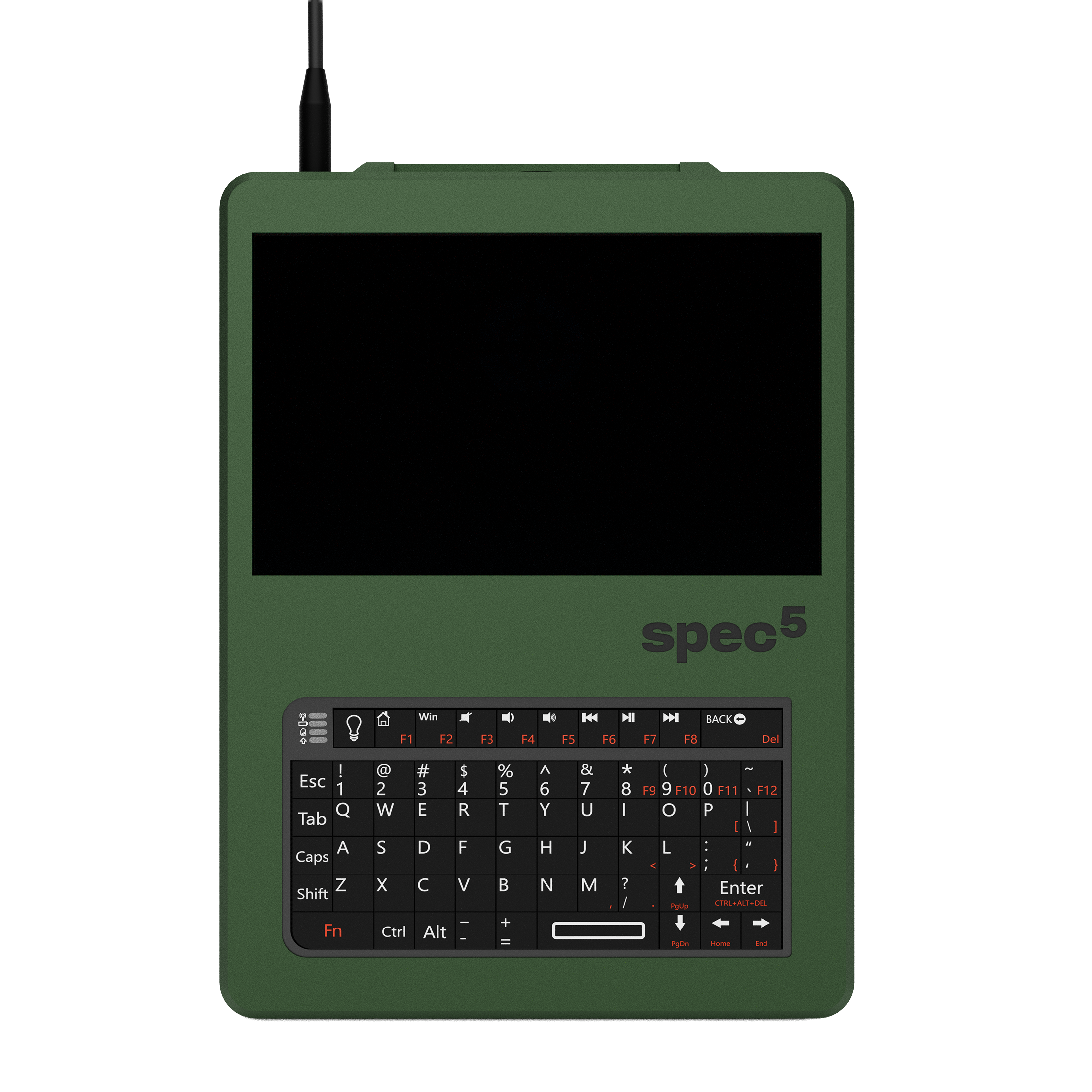

Touchscreen + SSH Access + Full QWERTY Keyboard

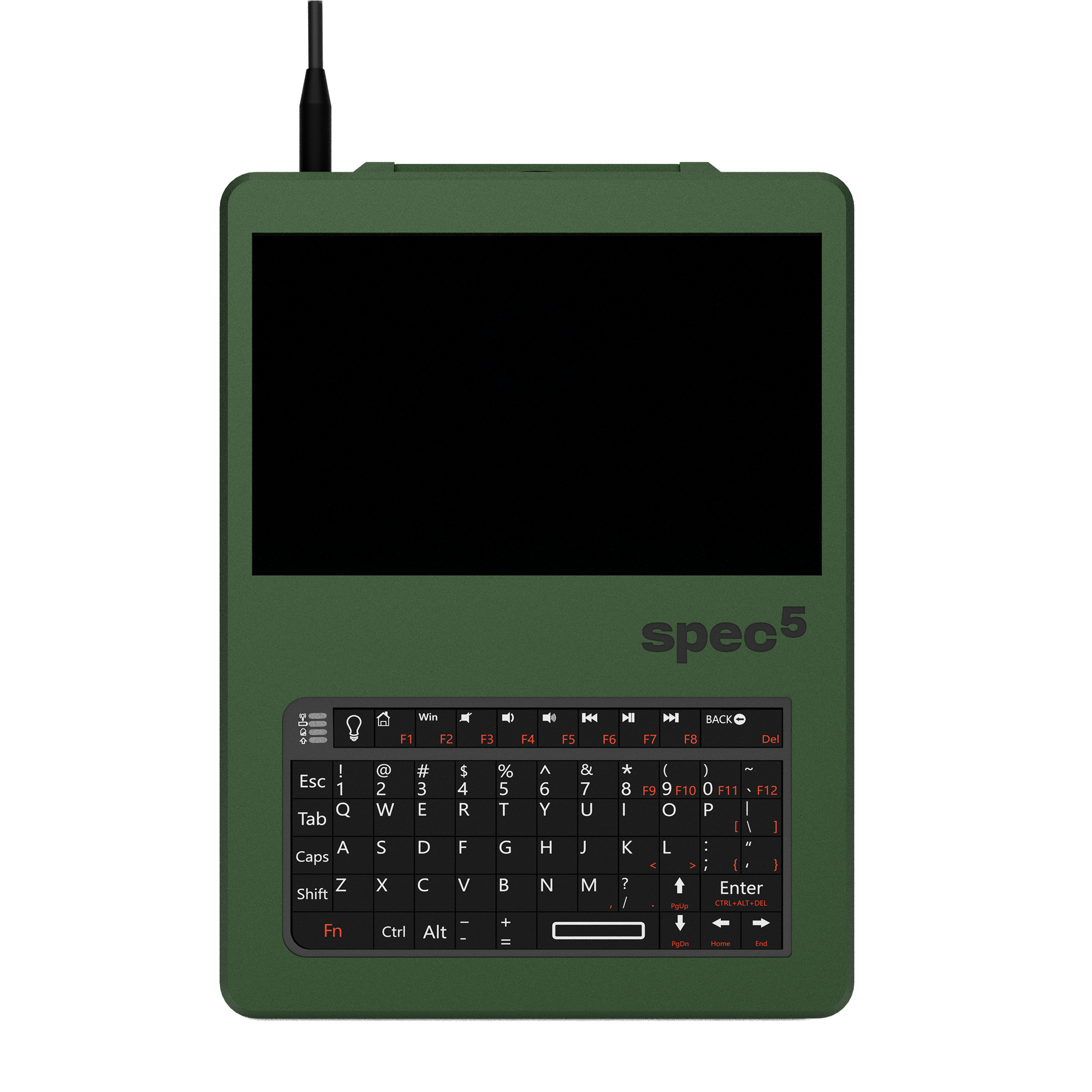

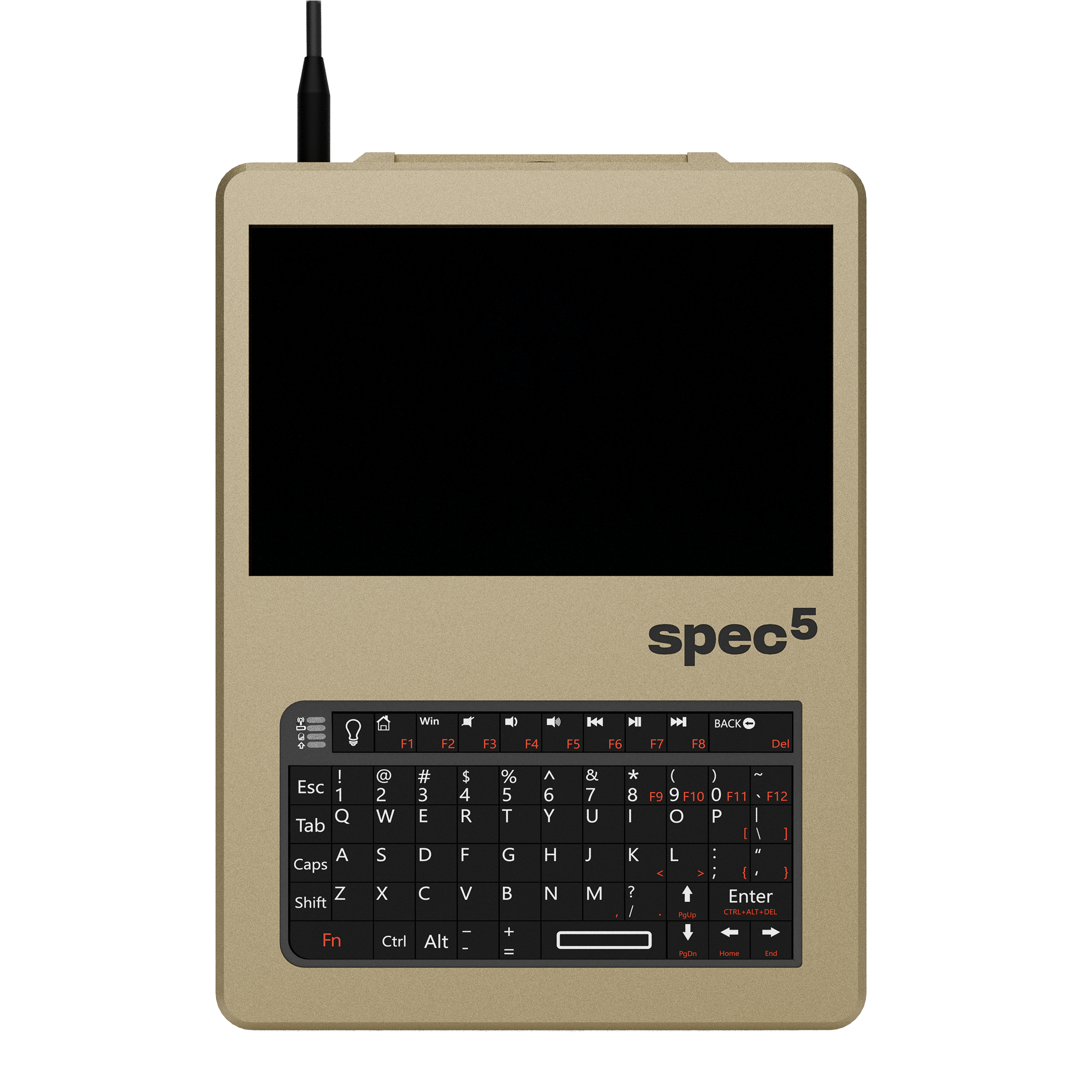

Interact directly using the 5” capacitive touchscreen and built-in keyboard, or access remotely via SSH for full headless operation and remote scripting.
Internal RTL-SDR (Recon Only)
Recon models feature a built-in RTL-SDR module for live RF scanning, ADS-B tracking, and spectrum monitoring, no dongles or add-ons needed.
Connectivity & Ports
All models include USB 2.0/3.0, Ethernet, Wi-Fi, and Bluetooth, supporting mobile servers, router bridges, and sensor integration.
Rugged Build for Real Deployments
Housed in durable PETG, the enclosure resists environmental wear, heat, and rough handling. Designed to withstand real-world field conditions for reliable, long-term outdoor use
Use-Case Scenario
Whether you’re part of an emergency response unit, conducting RF fieldwork, or deploying remote mesh nodes, the Nomad 2 adapts to your mission. Pi4 offers extended runtimes for routine mesh ops; Pi5 handles SDR decoding, control panels, or edge automation. It's your customizable command center, off-grid, mobile, and field-ready.
Deployment
Deployment is simple: Choose your Pi version and model, insert batteries (Ready/Recon), power it up, and launch your mesh, MQTT, or RF tools. The Nomad 2 is prepped for fast rollout; no external screen, dongles, or peripherals needed.
If you're using the Base model, you’ll need to add your SD card, power source, and any additional modules like SDR. It’s perfect for developers or integrators building a fully custom field setup.
Disclaimer
SpecFive offers Nomad 2 devices configured for open-source use cases such as Meshtastic, MQTT, and RTL-SDR tools. Setup may require configuring your device, applications, or network. The user is responsible for ensuring compatibility with any third-party software. Refer to developer documentation for app-level support.
As a seller of Meshtastic-enabled devices, we want to emphasize that we are not responsible for the configurations required on your personal phone or device. Any setup, configuration, or troubleshooting related to the Meshtastic App or its communication is the sole responsibility of the user.
We recommend consulting the user manuals, guides, or online resources provided by the developers of the Meshtastic App for assistance with configuration and setup. Additionally, please ensure that your personal phone or device meets the necessary requirements and specifications for running these applications effectively.
