Spec5 Copilot MKII
The Spec5 Copilot MKII is built for one purpose: keeping you connected when everything else fails. Spec5 Copilot MKII is a compact LoRa Meshtastic device built for reliable off-grid communication, GPS tracking, and mesh network expansion. Whether you're exploring remote areas, coordinating in the field, or extending coverage from a drone, Copilot MKII helps you stay connected when cell service is unavailable.
With its upgraded ESP32-S3 processor, SX1262 LoRa radio, 28 dBm transmit power, and u-blox L76k GNSS module, it delivers stronger range, better performance, and more accurate positioning in demanding environments. The lightweight, rugged design, expanded 16 MB flash storage, and long battery life make it a practical tool for explorers, operators, and makers who need dependable communication beyond the grid.
Regular price
$149.99
Sale price
$149.99
Regular price
Unit price
Spec5 Copilot MKII
Product Description
Specs
User Guide

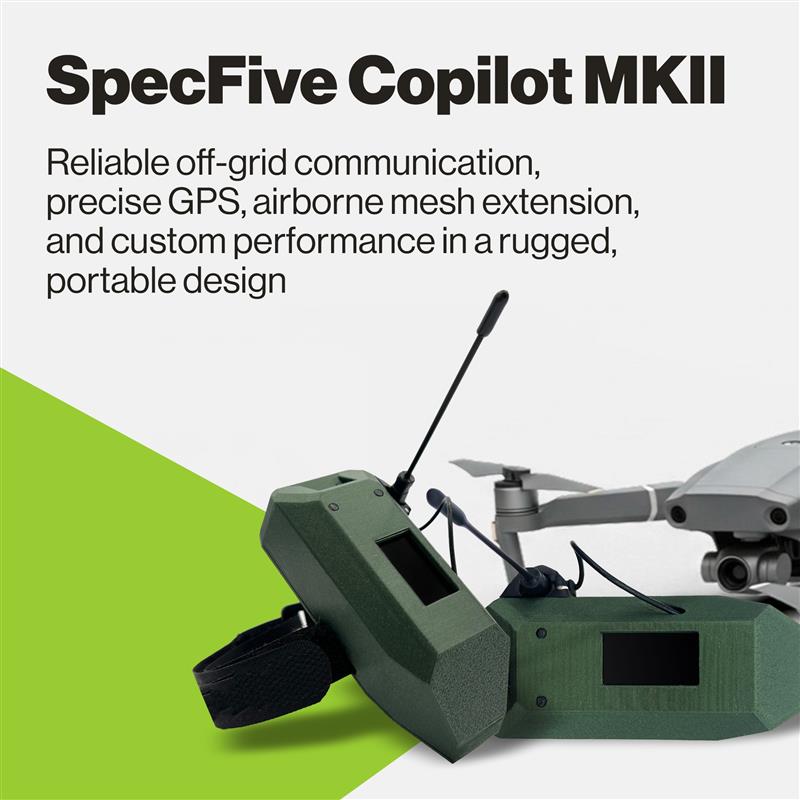

Spec5 Copilot MKII – Drone-Mounted LoRa Mesh Repeater
What’s Included in the Box
- Spec5 Copilot MKII Device
- Specialized Drone Antennas
- Mounting Straps
- USB-C Charging Cable
- User Manual

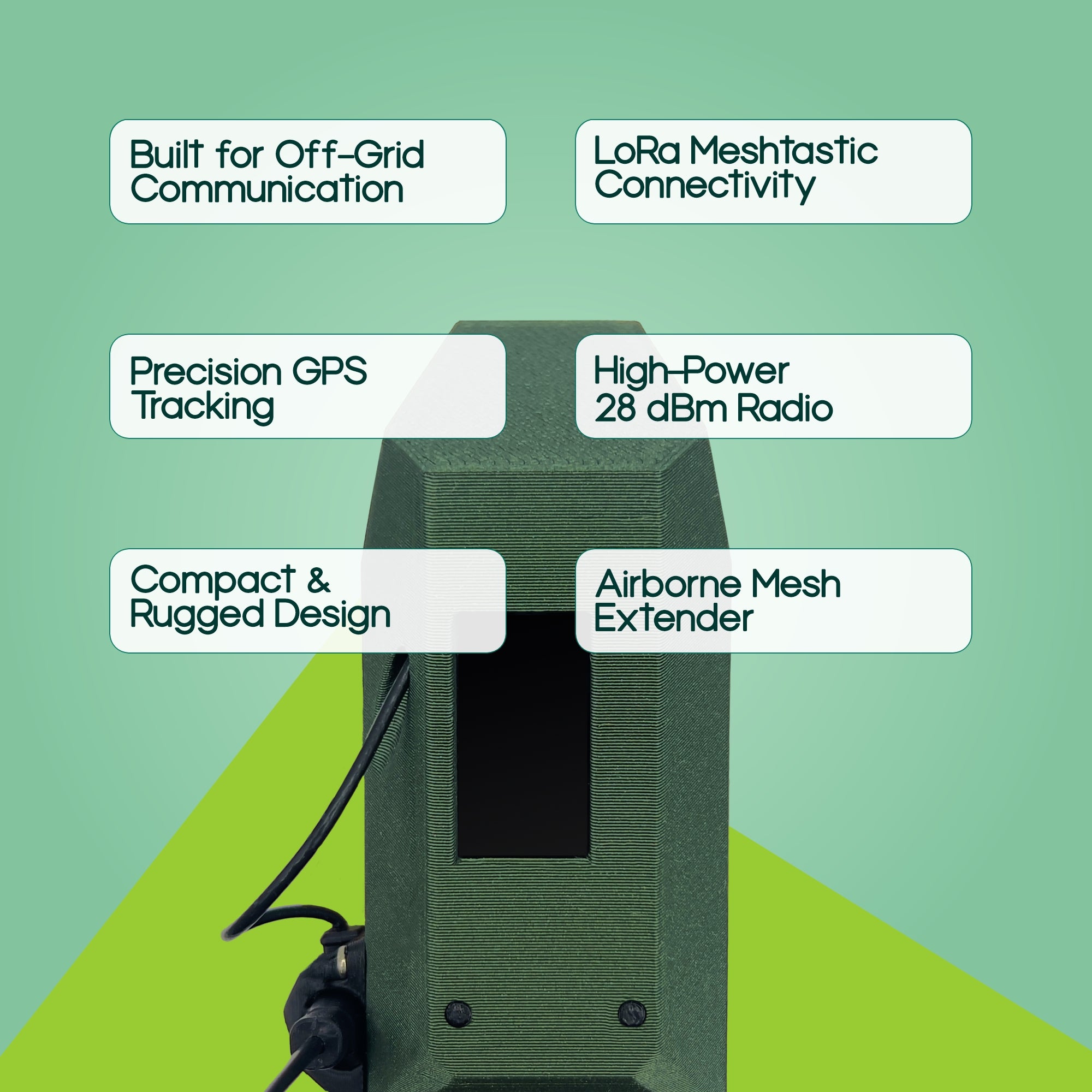

Key Features
- Reliable Off-Grid Communication: Copilot MKII enables reliable off-grid communication using LoRa mesh networking without cellular or internet.
- Extended Range with High-Power LoRa Radio: Up to 28 dBm transmit power with SX1262 ensures strong long-range LoRa communication across remote terrain.

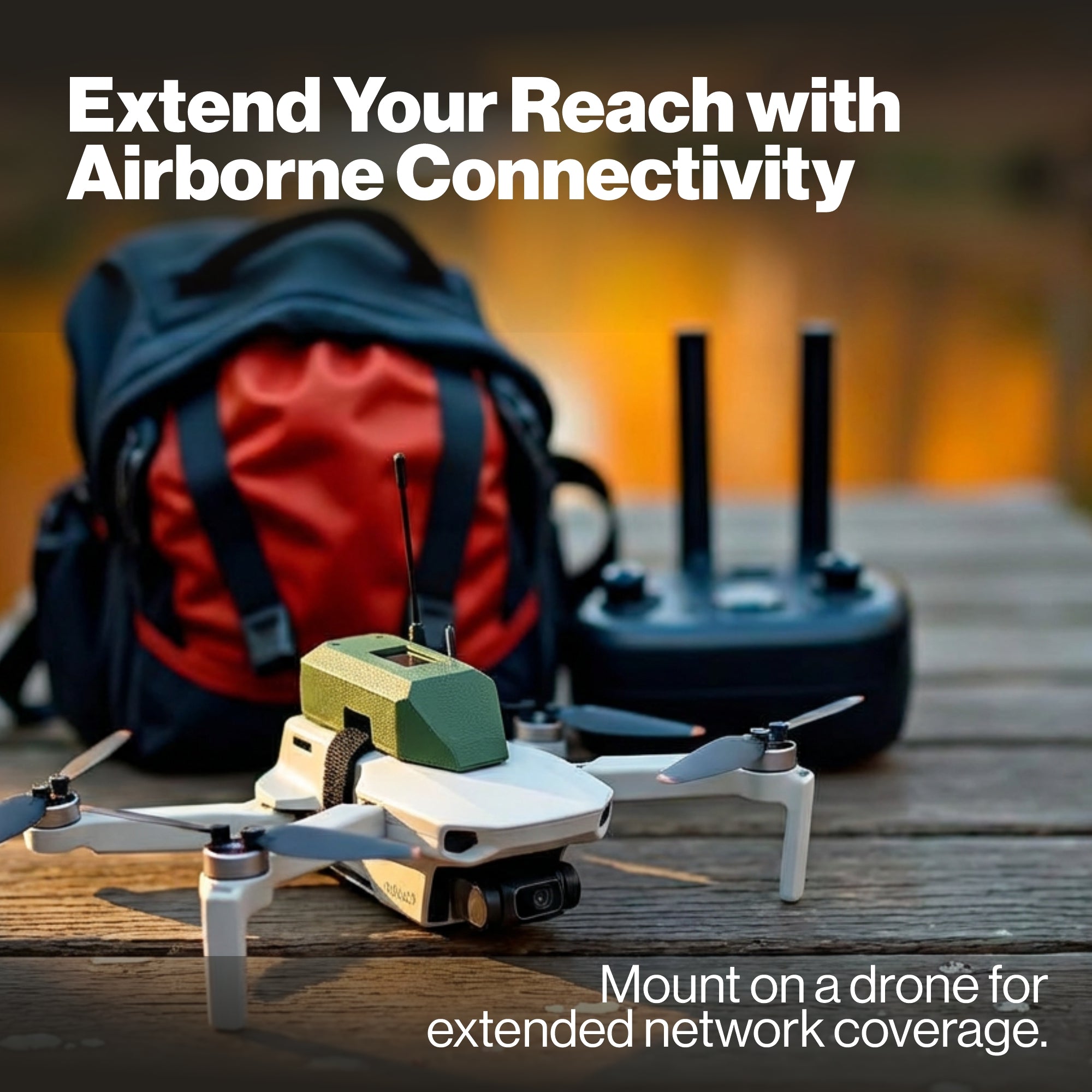

- Airborne Mesh Extender (Drone-Compatible): Drone-mounted mesh node improves line-of-sight and extends mesh network coverage in hard-to-reach areas.

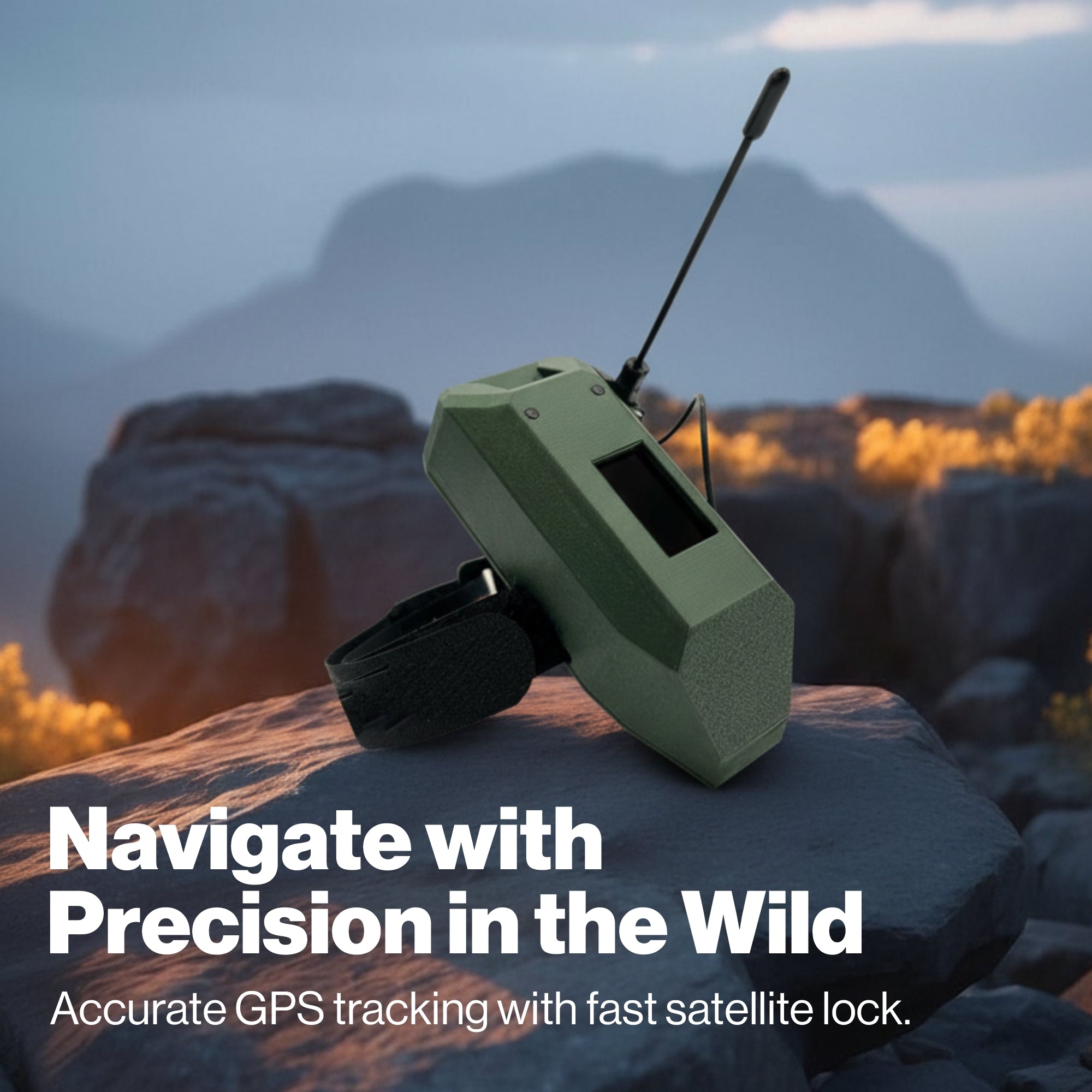

- Precision GPS Tracking with GNSS Module: u-blox L76k GNSS delivers accurate GPS tracking, fast positioning, and reliable navigation in off-grid environments.
- Upgraded Performance with ESP32-S3 Processor: ESP32-S3R2 chipset enhances performance, data processing, and mesh network reliability.
- Built for Explorers, Teams & Makers: Ideal for outdoor communication, field operations, and DIY mesh networking projects.
- Expanded Storage for Advanced Features: 16 MB flash memory supports firmware updates, advanced features, and scalability.
- Compact, Lightweight & Field-Ready Design: Lightweight 69g device with rugged PETG enclosure for outdoor durability and portability.
-
Long Battery Life for All-Day Use: 1300 mAh battery supports extended use with up to 6 hours active and 18 hours standby.
Use-Case Scenarios
- Emergency Response: Provides communication in disaster-stricken areas.
- Search and Rescue: Extends communication range in challenging terrains.
- Outdoor Events: Ensures reliable communication over large areas.
Deployment
- Easy Installation: Mounts securely onto drones using included hardware.
- Plug-and-Play Setup: Preconfigured for immediate use with Meshtastic firmware.
- Scalable Networking: Integrate with other Spec5 devices to expand communication range.
Disclaimer
The Spec5 Copilot MKII utilizes LoRa mesh networking and GNSS modules; users must confirm regional frequency compliance, device compatibility, and legal drone operation requirements.
Additional Resources
- Meshtastic Organization Website: https://meshtastic.org
- Meshtastic YouTube Channel: https://www.youtube.com/meshtastic

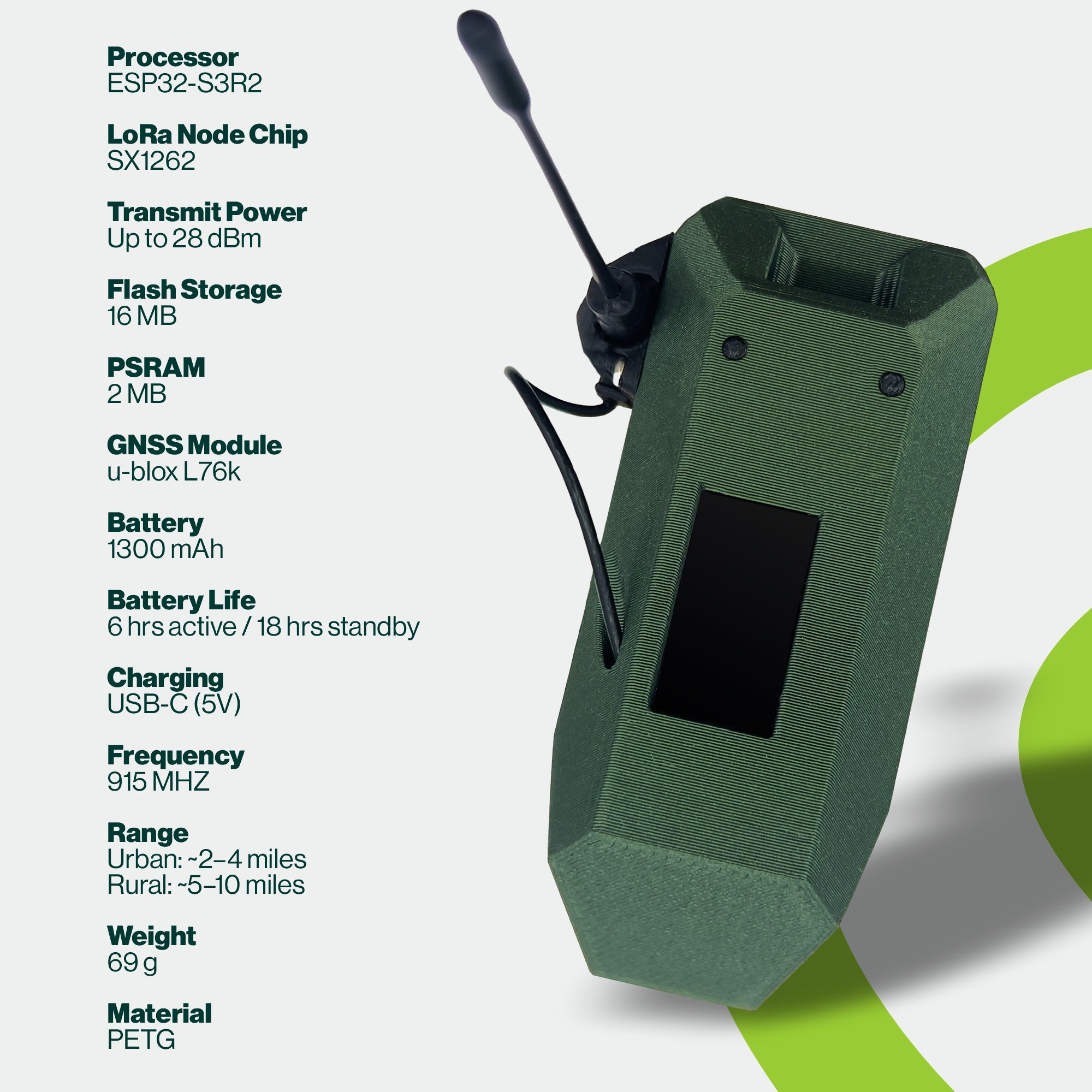

| Case Material | PETG |
|---|---|
| DIMMS | 86 * 35 * 26(150) mm(with antenna) |
| Weight | 69g |
| MCU | ESP32S3R2 |
|---|---|
| LORA Node Chip | SX1262 |
| PSRAM | 2MB |
| FLASH | 16MB |
| Battery | 1300 mAh |
|---|---|
| Battery Life | 6 Hours Active / 18 Hours Standby |
| Charging | USB-C 5 Volt |
| Solar Charging | NA |
| Antenna | LoRa Antenna |
|---|---|
| Frequency | 915 MHz |
| Urban Range | ~2-4 Miles |
| RuRal Range | ~5-10 Miles |
