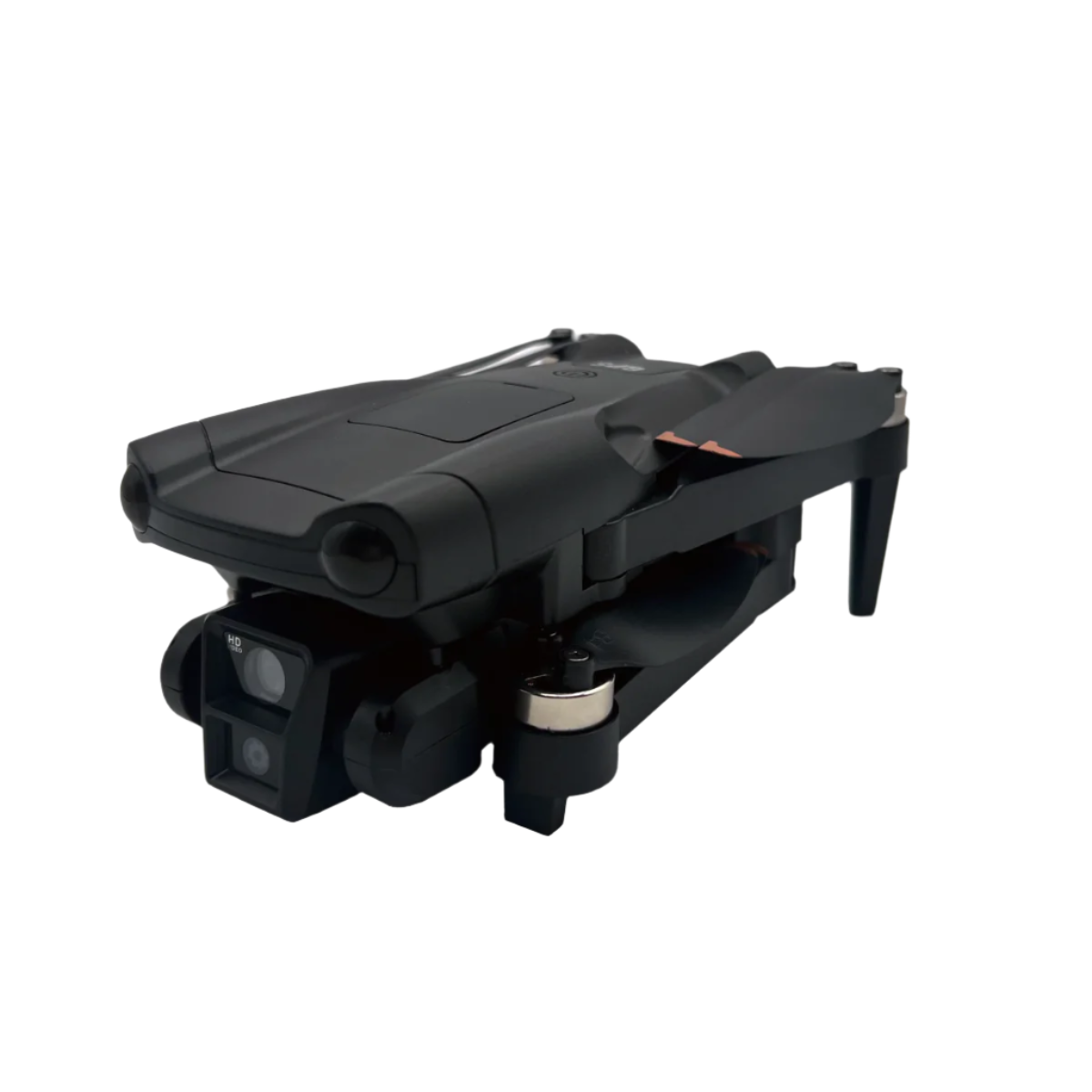

Raven UAS – Airborne Mesh Relay & Reconnaissance System
The Raven UAS is a lightweight, GPS-stabilized unmanned aerial system designed to provide aerial observation and off-grid mesh network extension in a single, rapidly deployable platform. Each kit includes the Spec5 Copilot, transforming Raven UAS into an airborne communications relay capable of extending LoRa mesh networks and improving situational awareness in disconnected environments.
Built for mobility, endurance, and integration, Raven UAS is ideal for field teams, emergency response, training exercises, and experimental network deployments.
Key Capabilities
Extended Flight Endurance
Raven UAS delivers up to 40 minutes of flight time on a single charge, enabling sustained overwatch, repeated passes, and wide-area coverage without frequent battery changes.
Stabilized Aerial Imaging
An onboard high-resolution camera captures sharp still imagery and smooth video with electronic stabilization, providing reliable aerial visibility for reconnaissance, documentation, and real-time observation.
GPS-Assisted Flight & Safety
Integrated GPS enables stable flight, precise positioning, automated return-to-home, and intelligent flight modes such as waypoint navigation, orbit, and subject tracking.

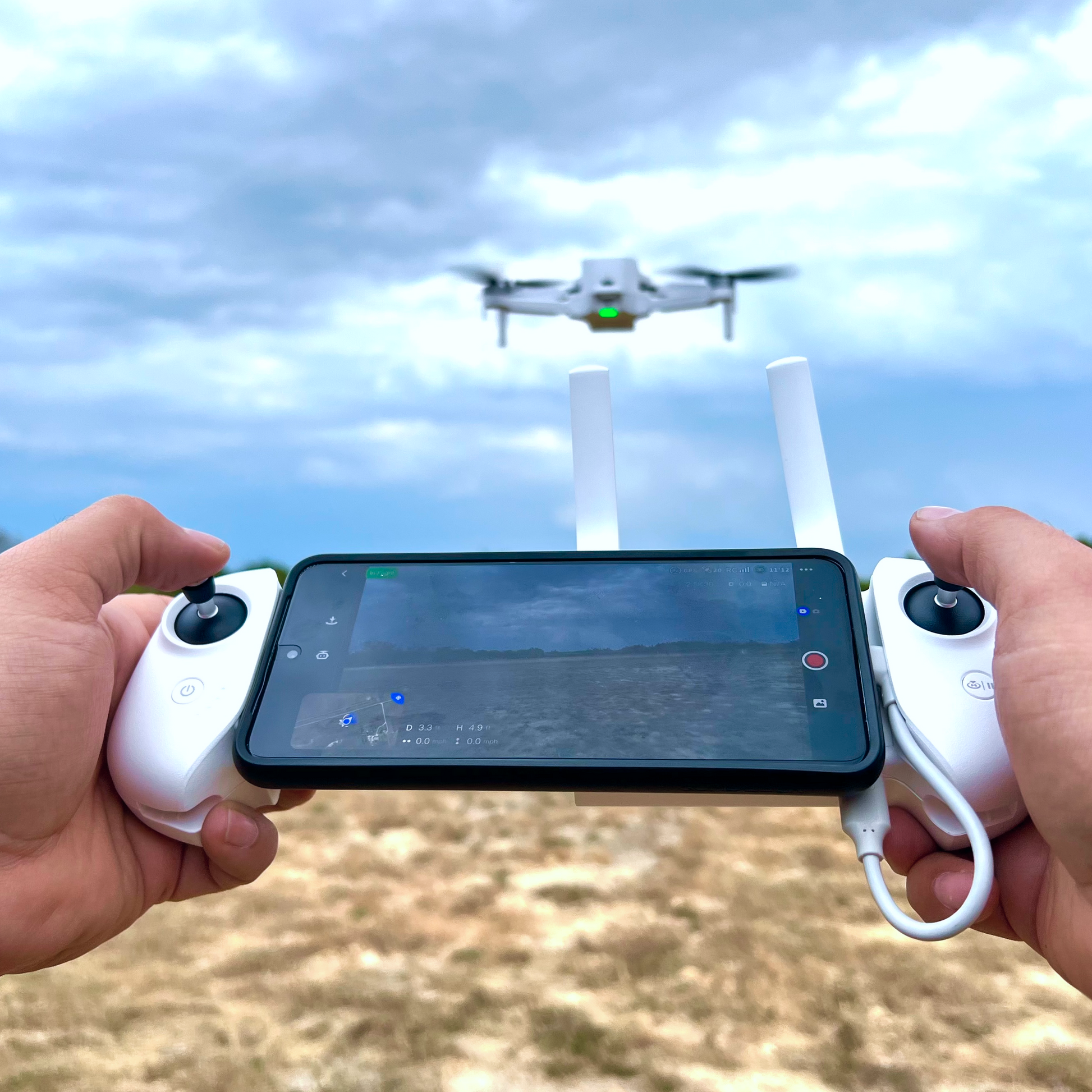

Long-Range Digital Video Link
A robust digital transmission system provides a reliable live video feed and control link over long distances, allowing operators to maintain situational awareness well beyond the launch point (subject to local regulations).

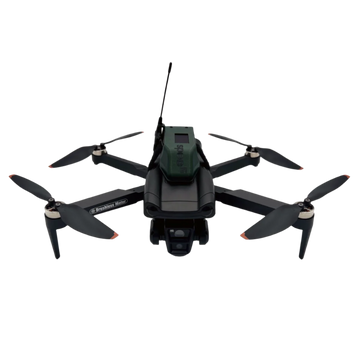

Airborne Mesh Network Relay (Spec5 Copilot Included)

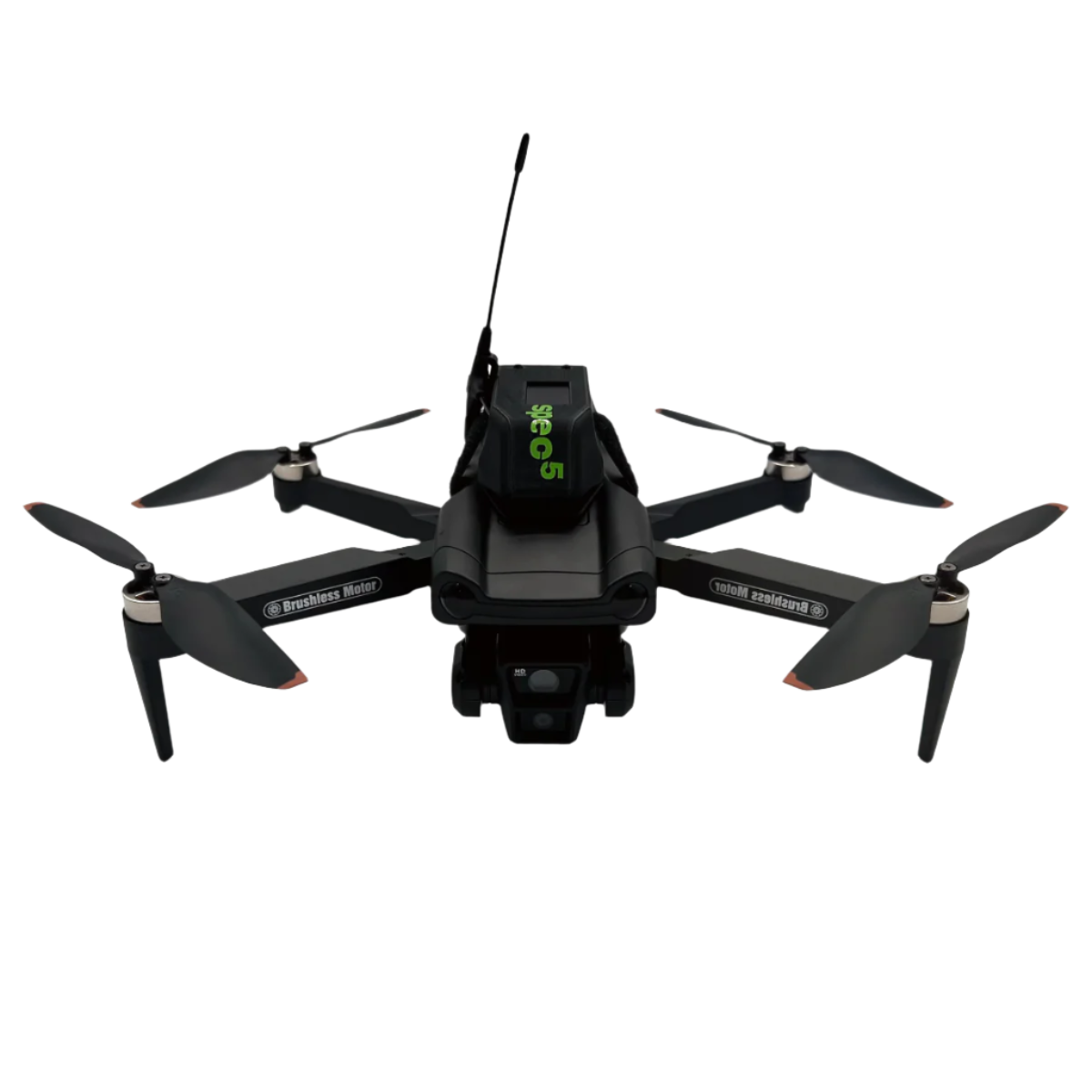

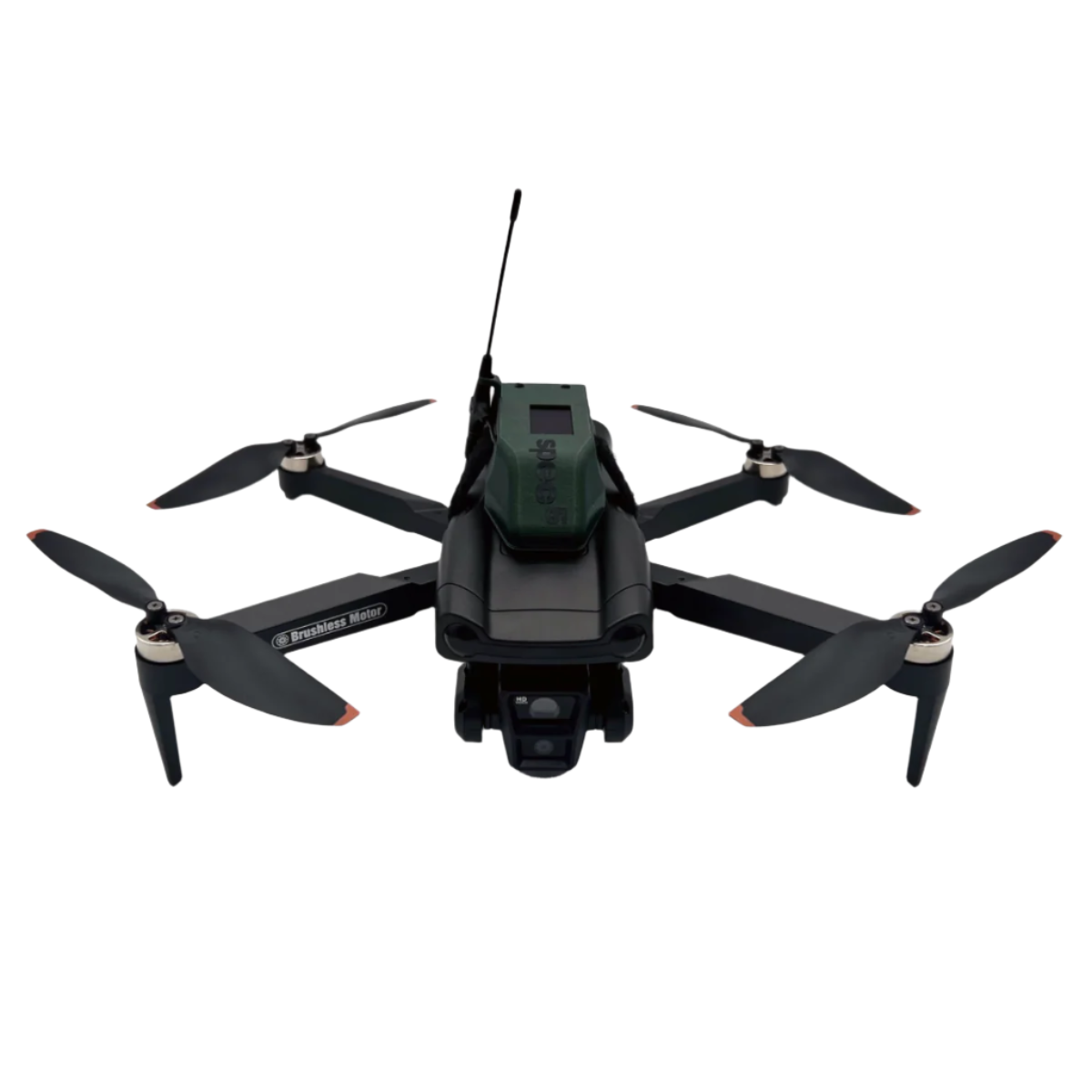

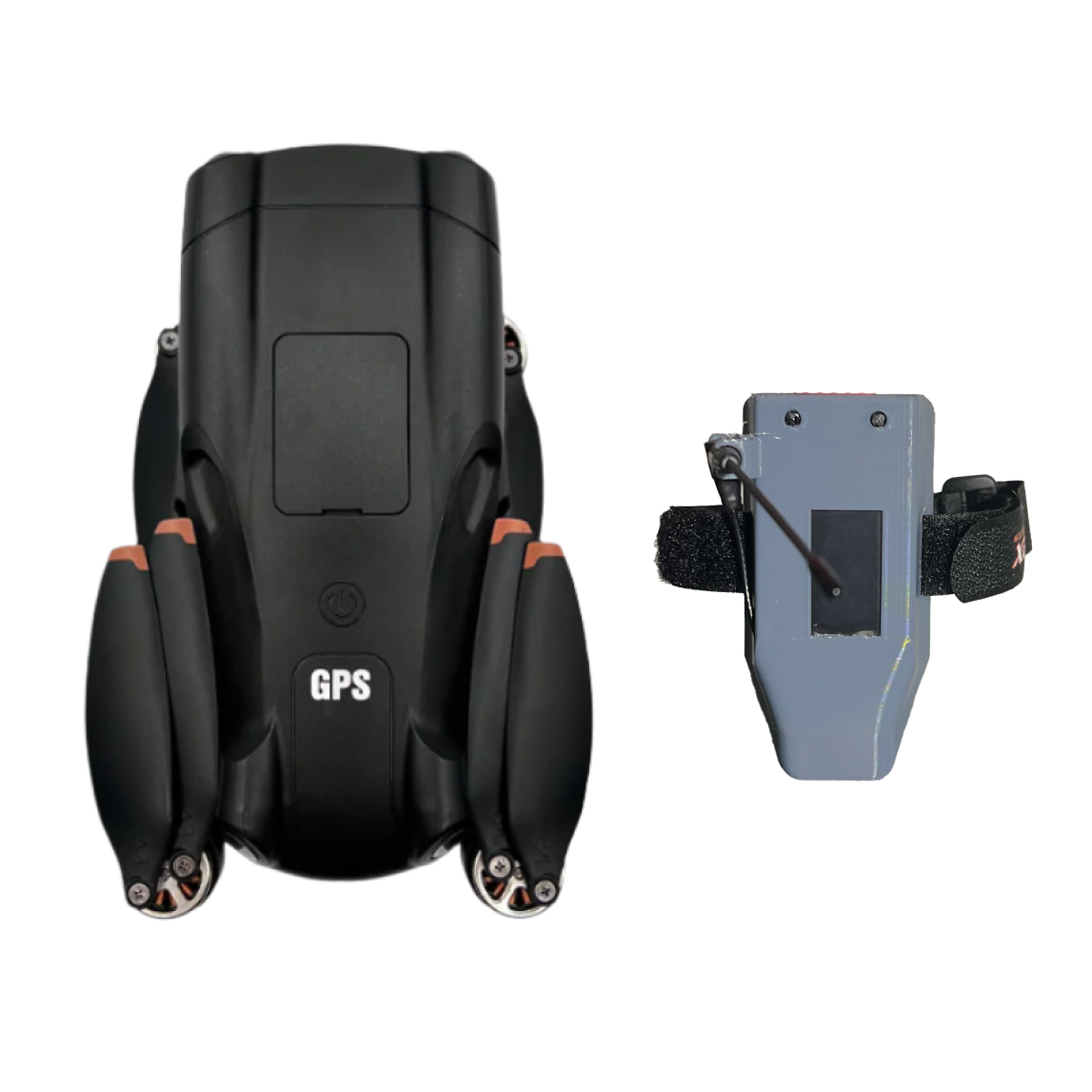

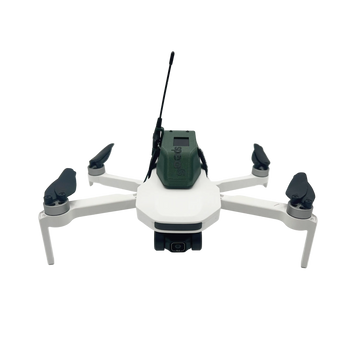

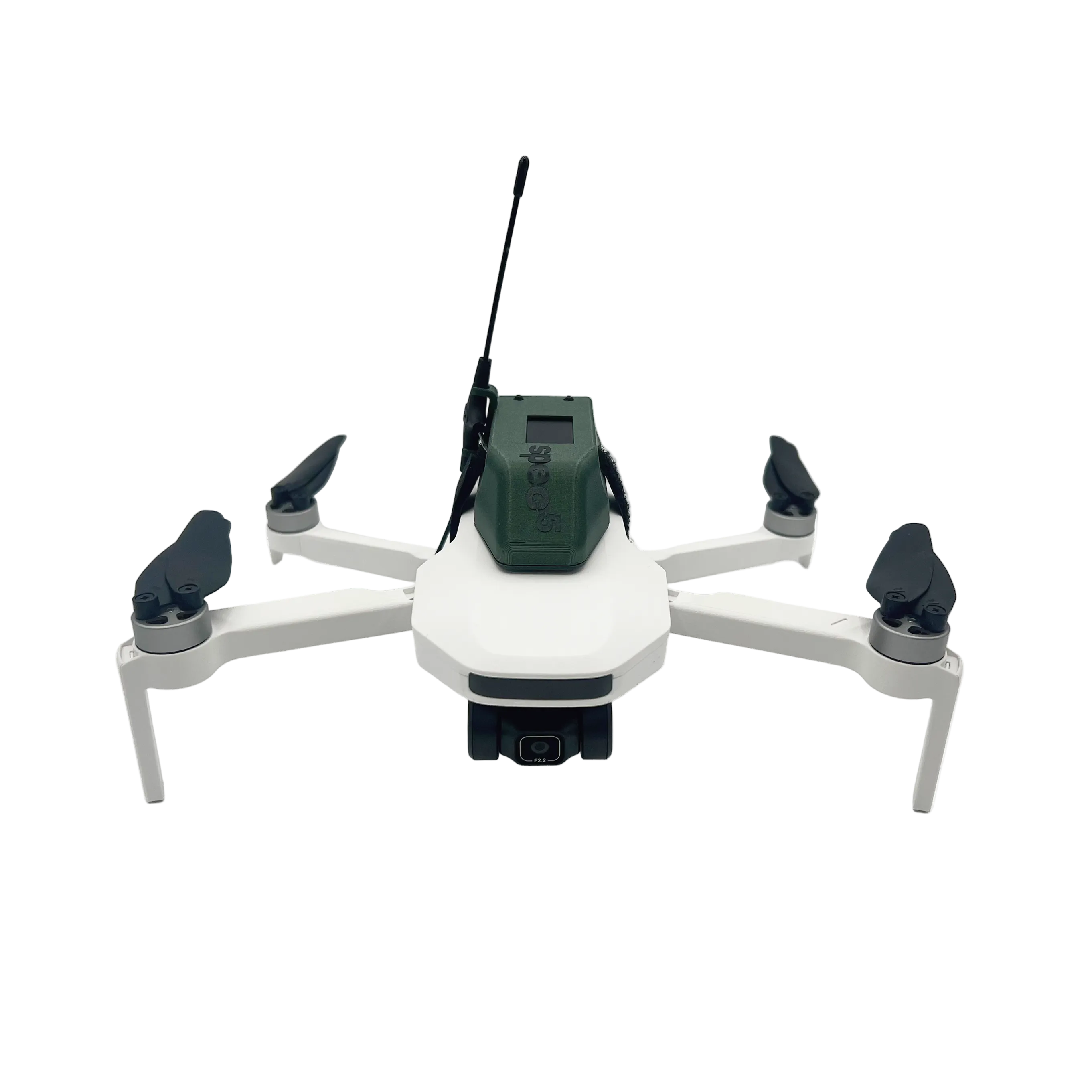

Each Raven UAS kit includes the Spec5 Copilot connectivity module, allowing the drone to operate as an airborne LoRa mesh repeater.
When deployed, Raven UAS can:
- Extend the range of ground-based mesh networks
- Relay messages and GPS telemetry between nodes
- Improve connectivity over terrain, vegetation, or urban obstacles
The Copilot integrates with Meshtastic and ATAK, enabling Raven UAS to function as a temporary aerial node that enhances network resilience and team-level situational awareness in off-grid environments.
Portable & Rapid Deployment

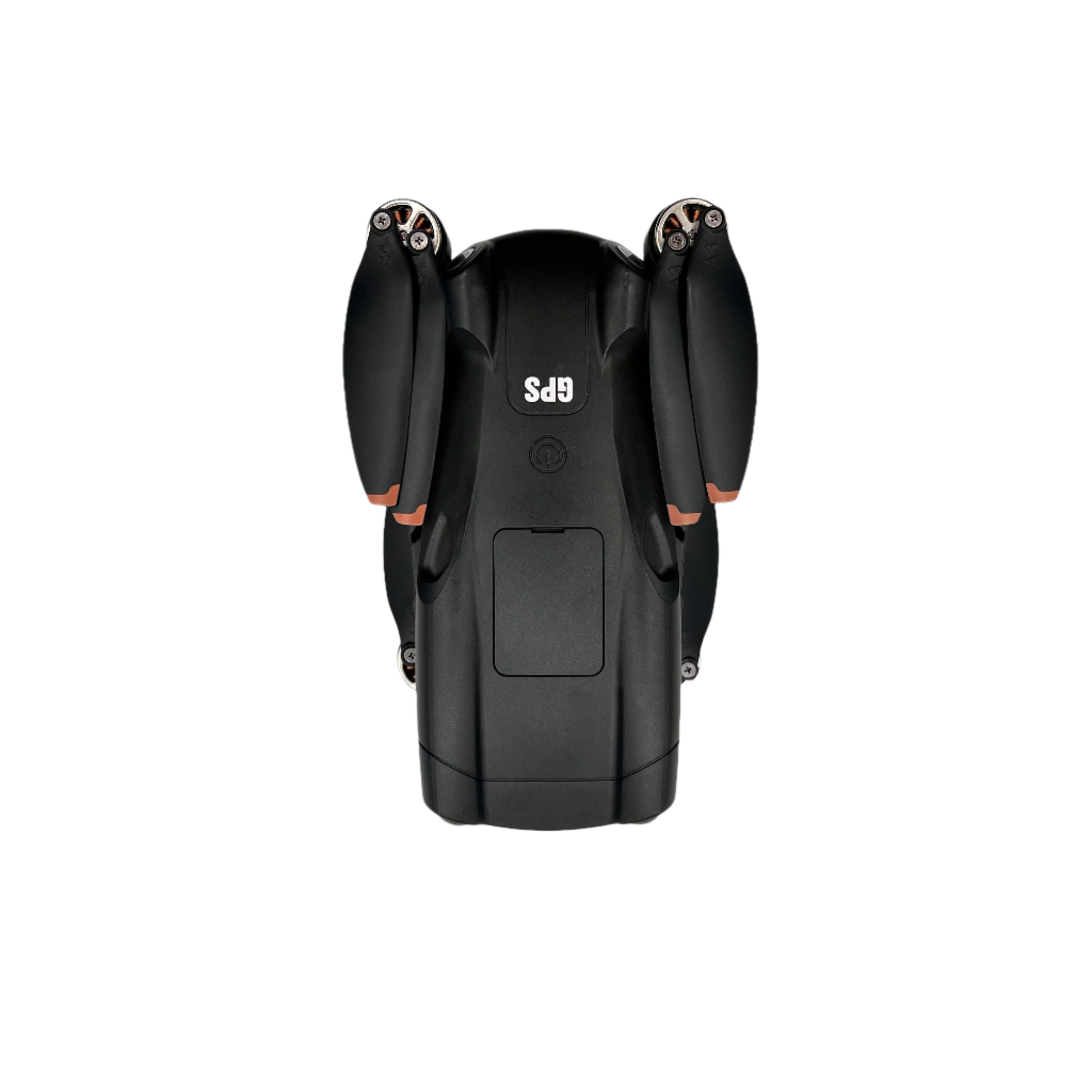

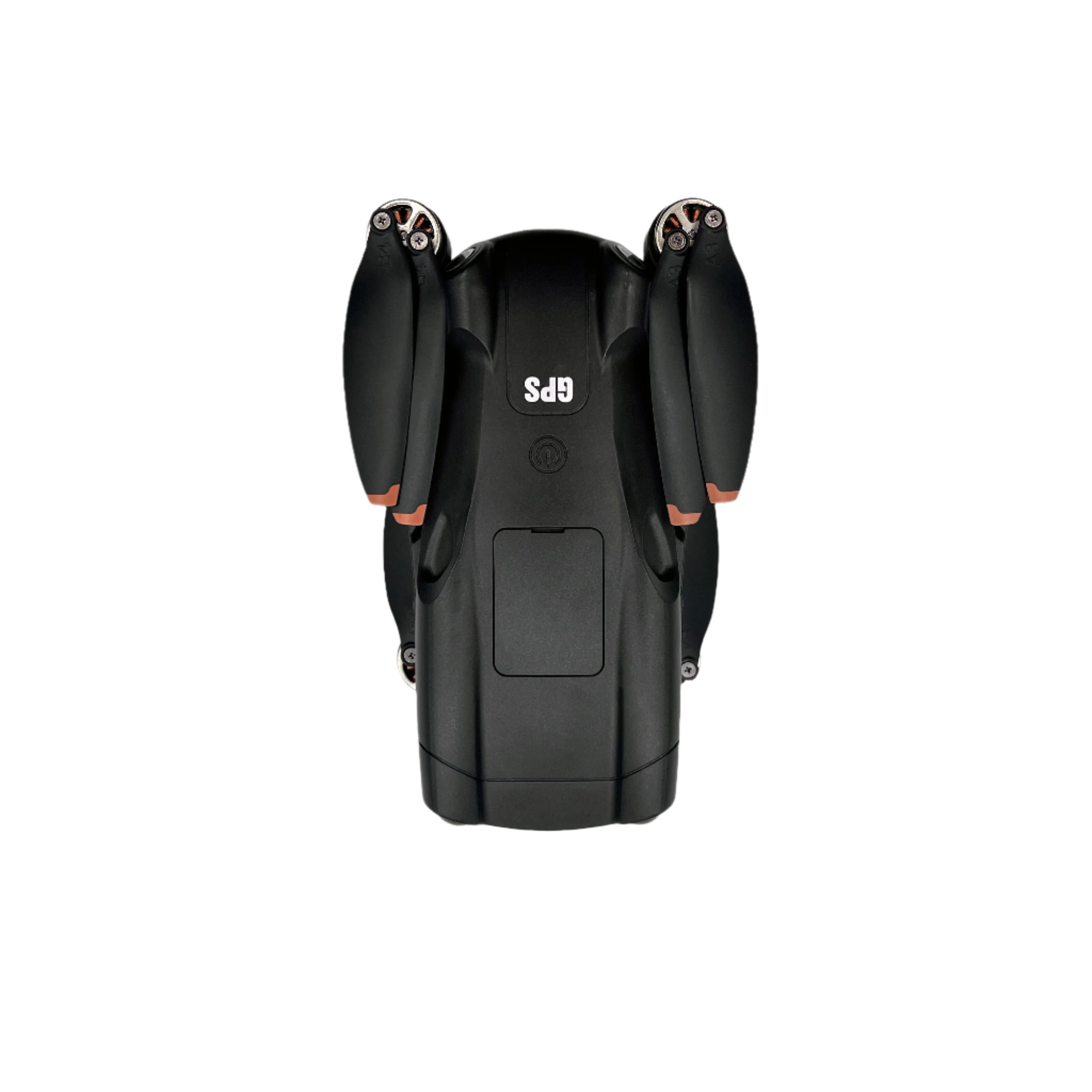

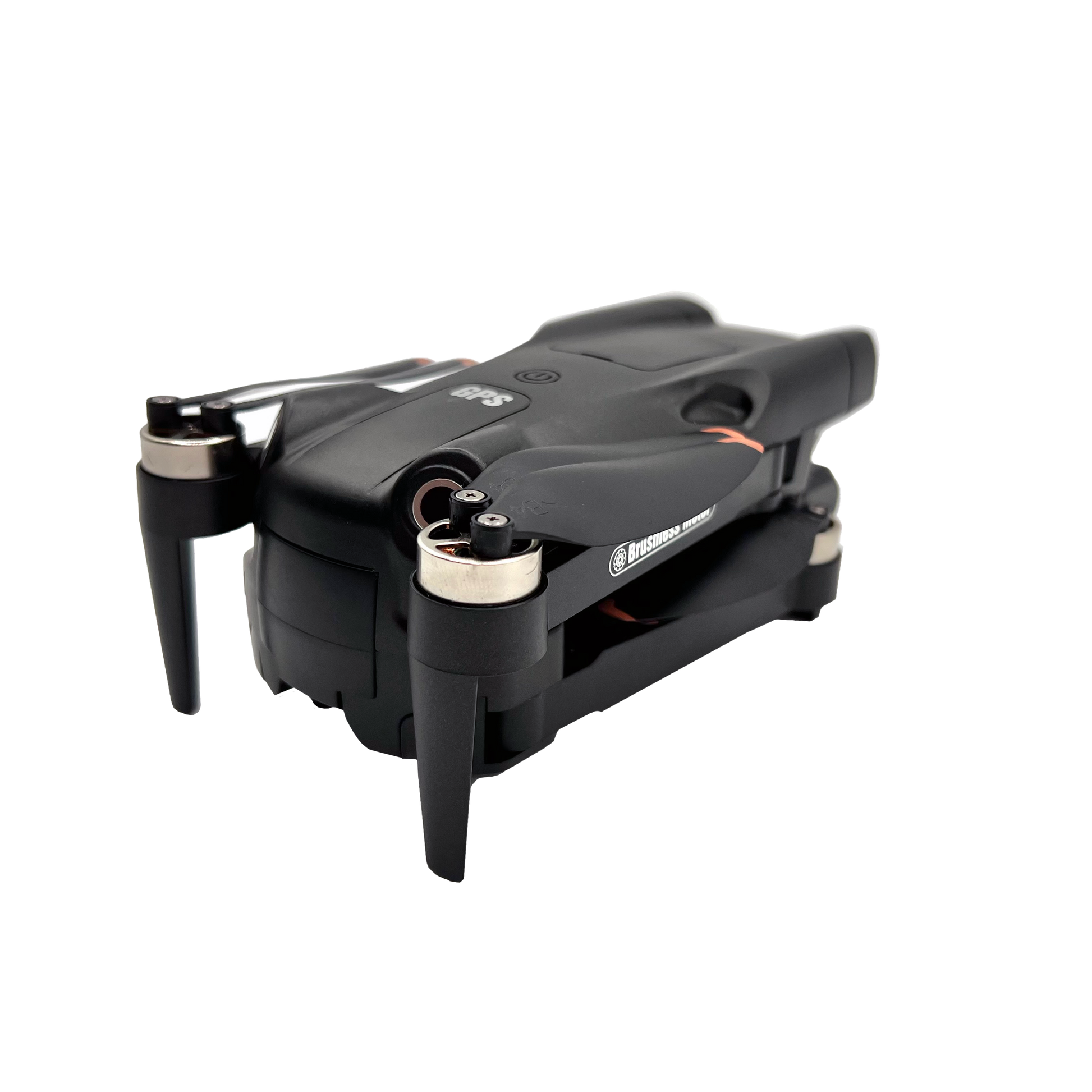

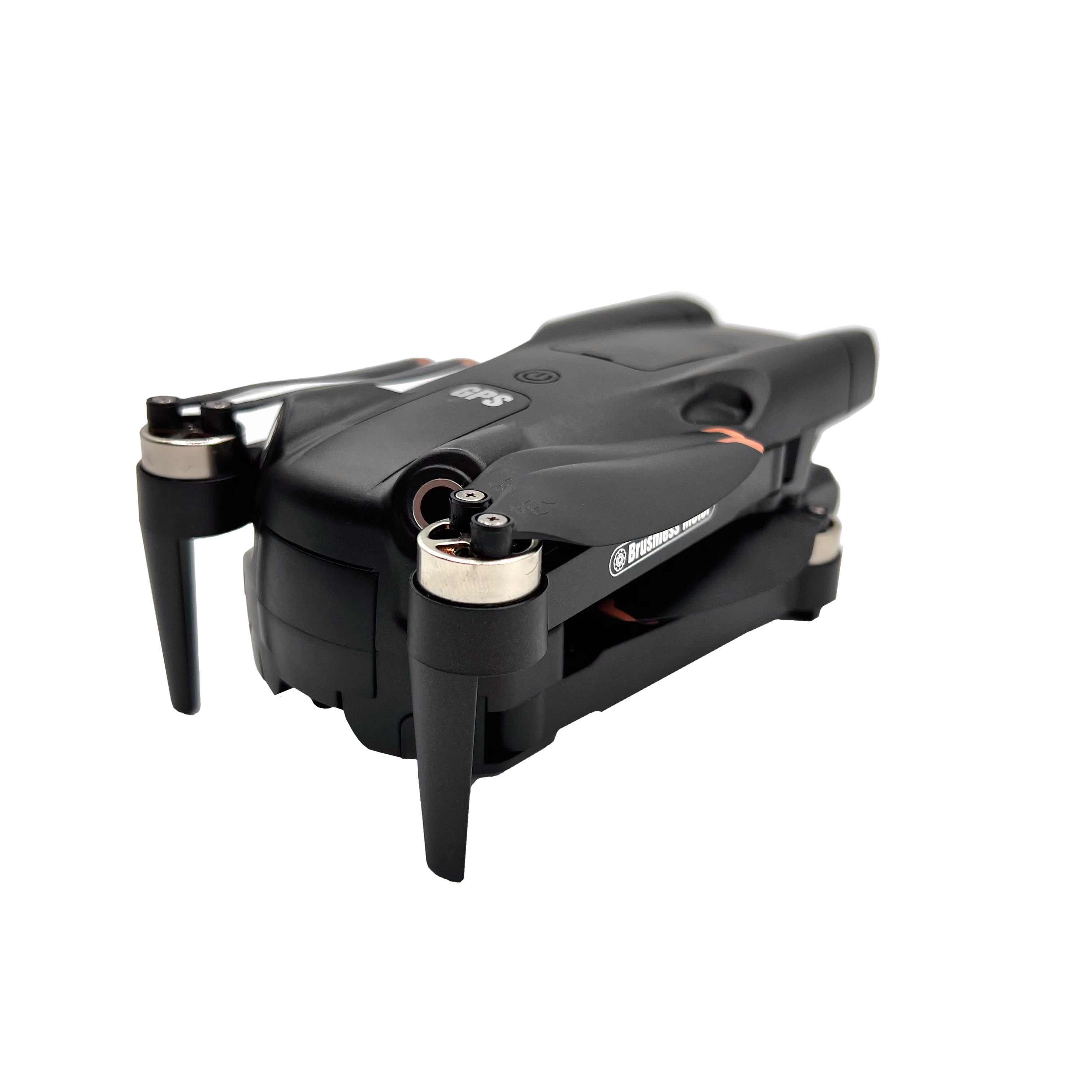

The foldable, sub-250 g-class airframe packs down small for transport and deploys in seconds. Raven UAS is easy to carry, quick to launch, and well-suited for dynamic field operations where speed and mobility matter.
Ideal Use Cases
- Mesh network range extension
- Aerial reconnaissance and overwatch
- Search and rescue support
- Emergency response and disaster recovery
- Training, testing, and experimental communications
- Remote site assessment and documentation

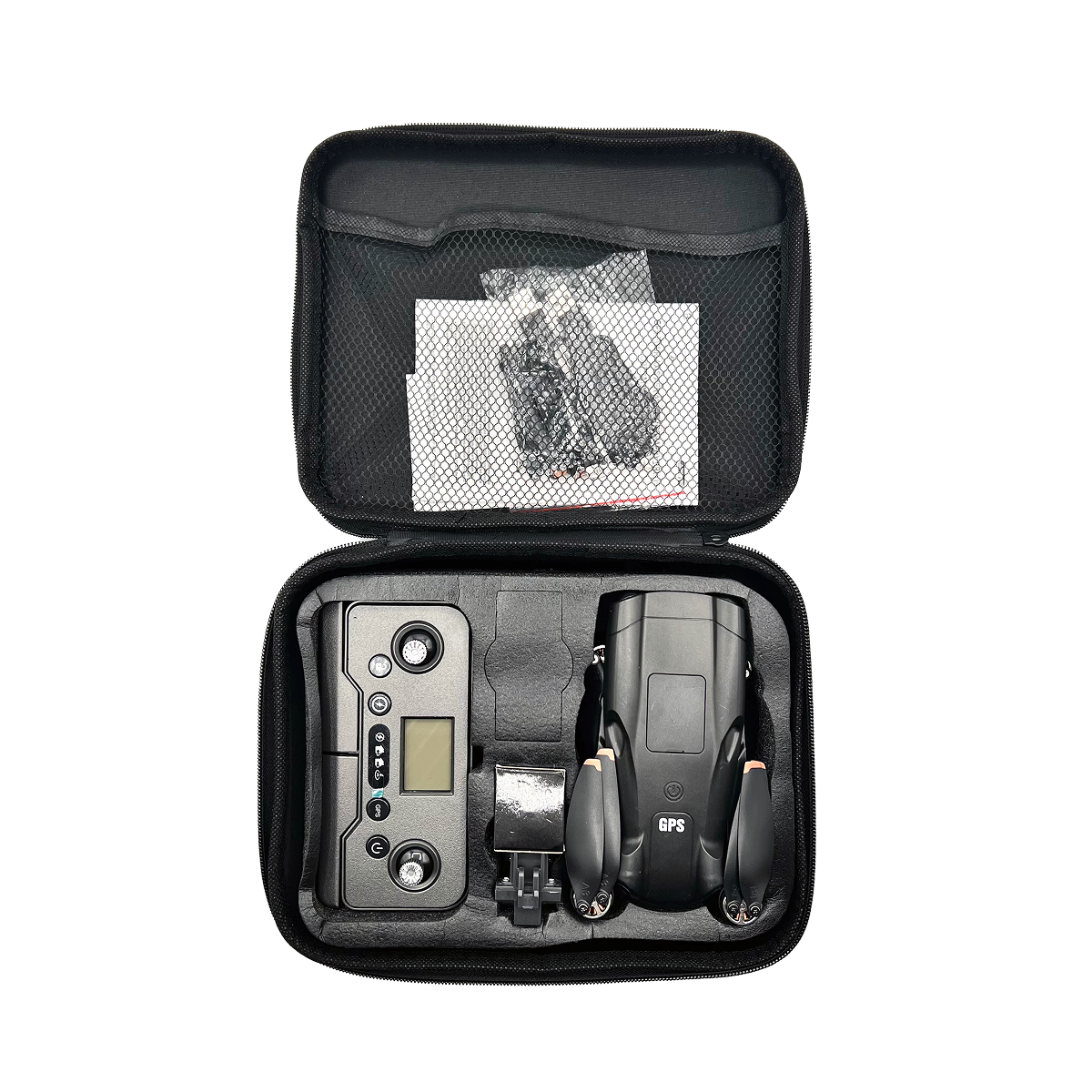

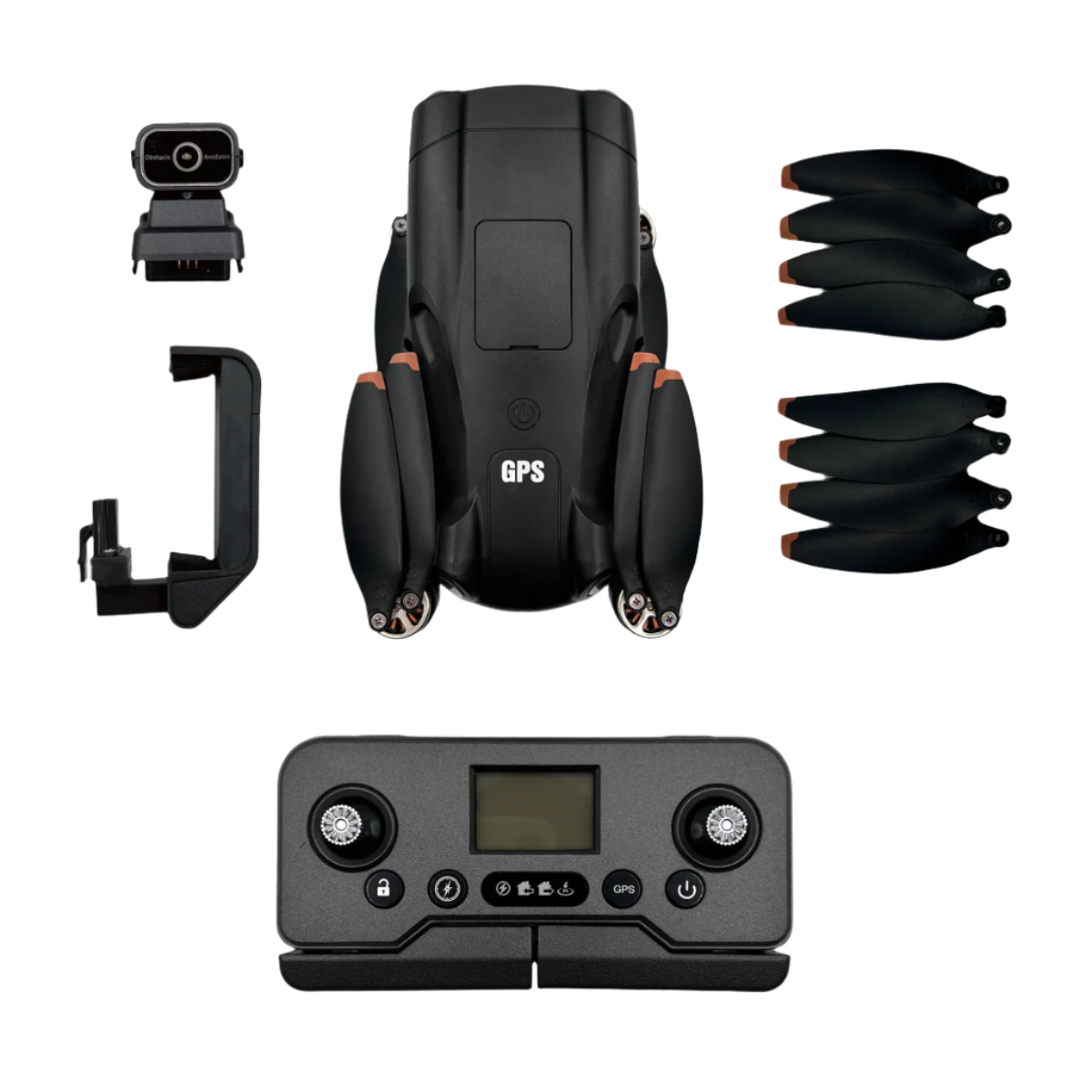

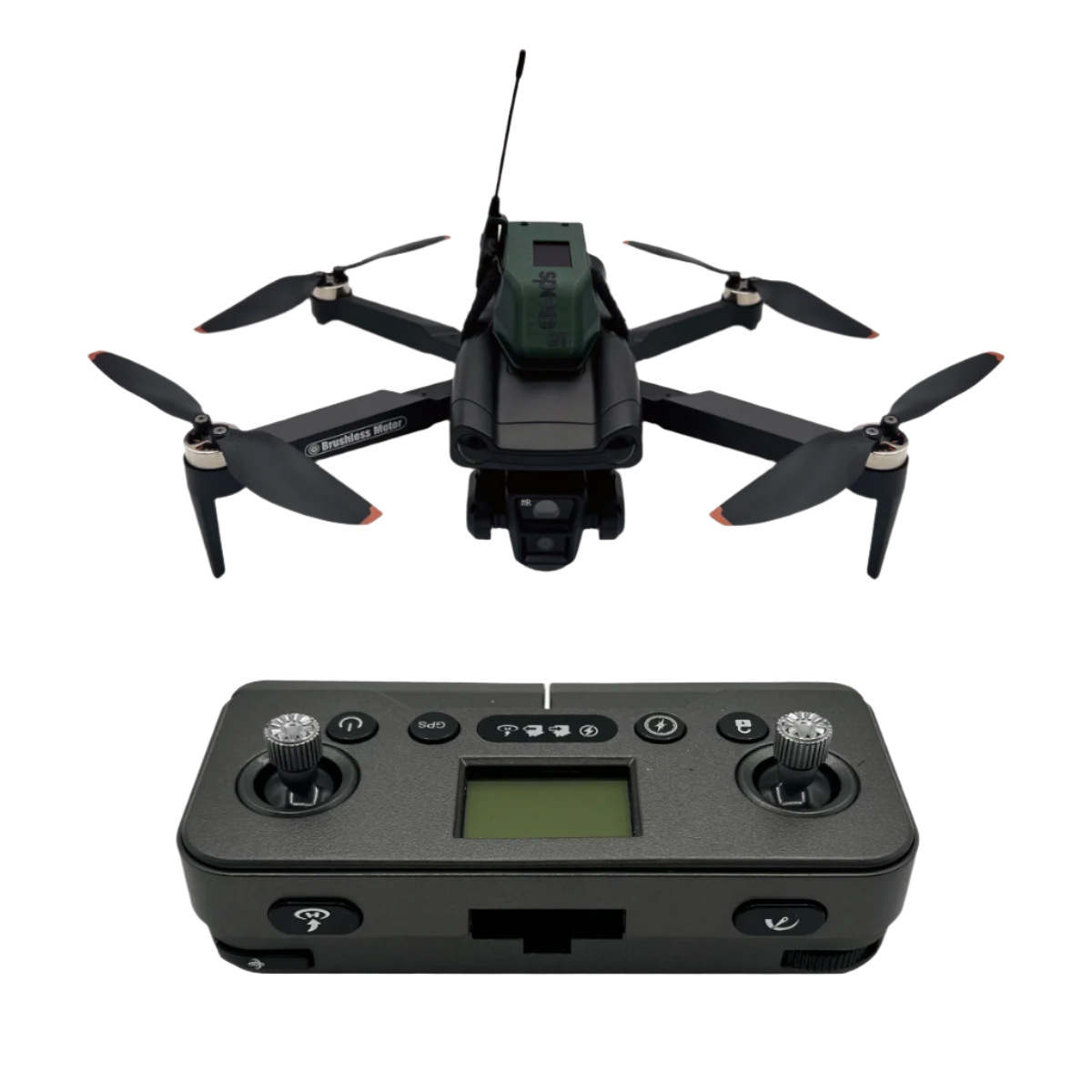

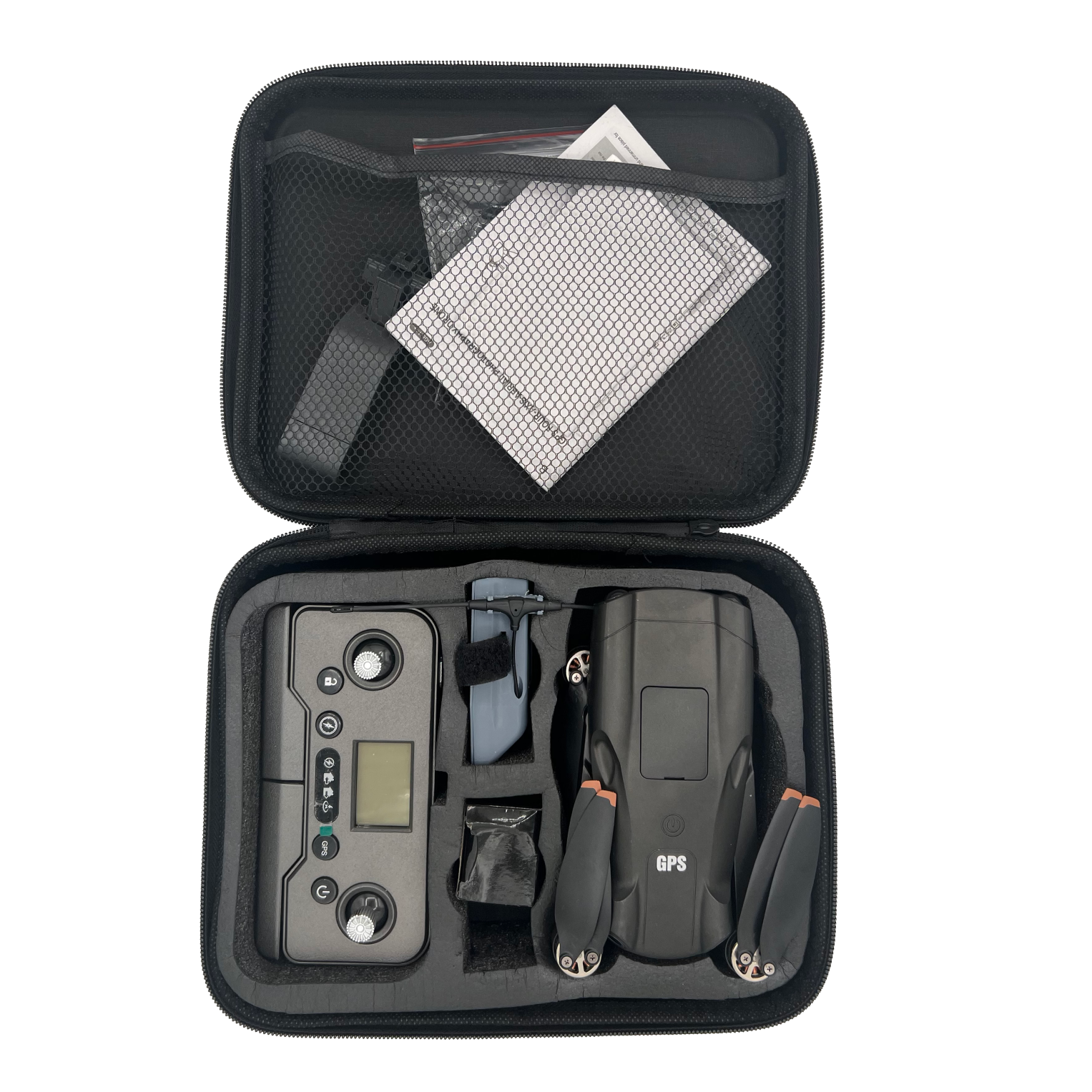

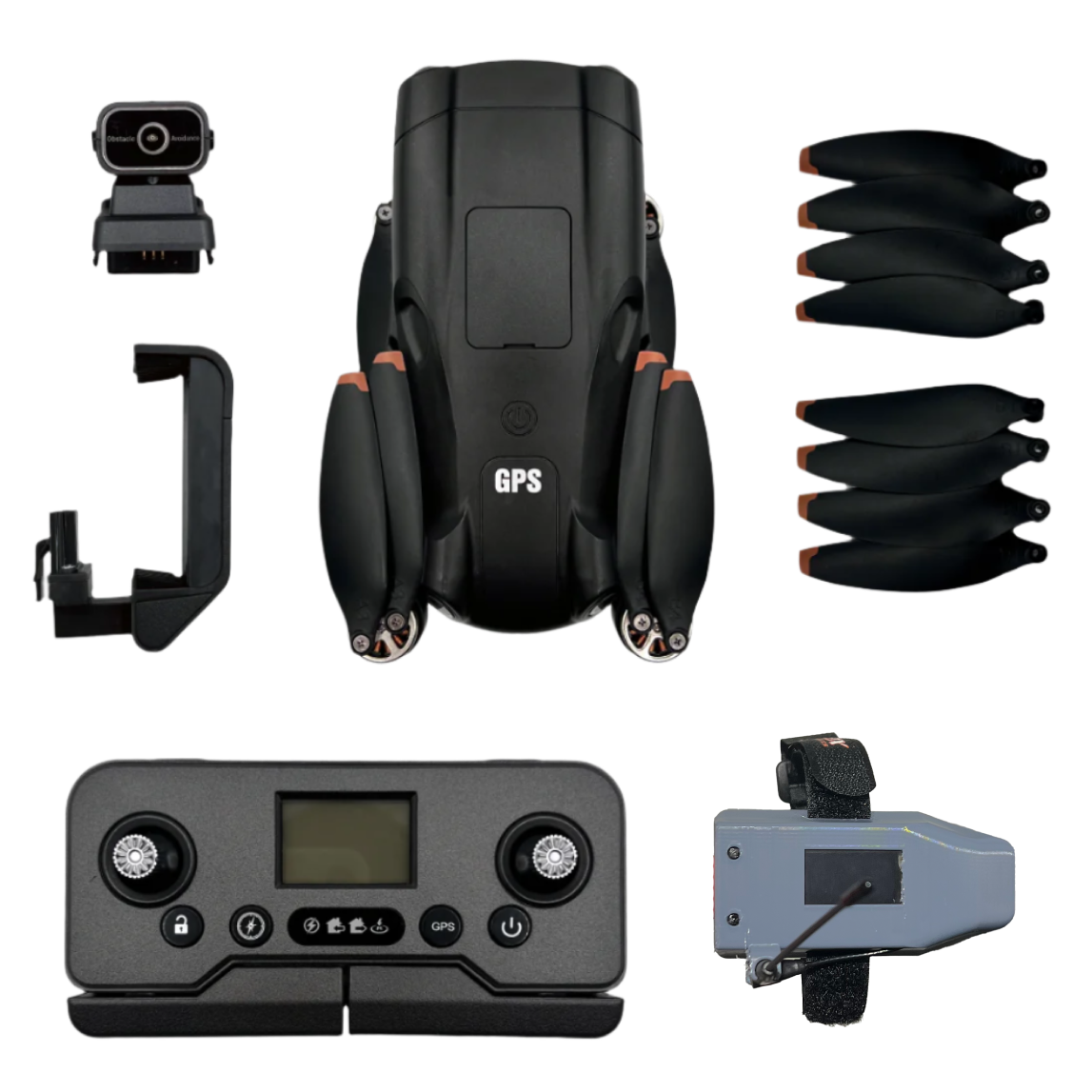

What's Included
- Raven UAS airframe
- Spec5 Copilot airborne mesh module
- Flight battery and charger

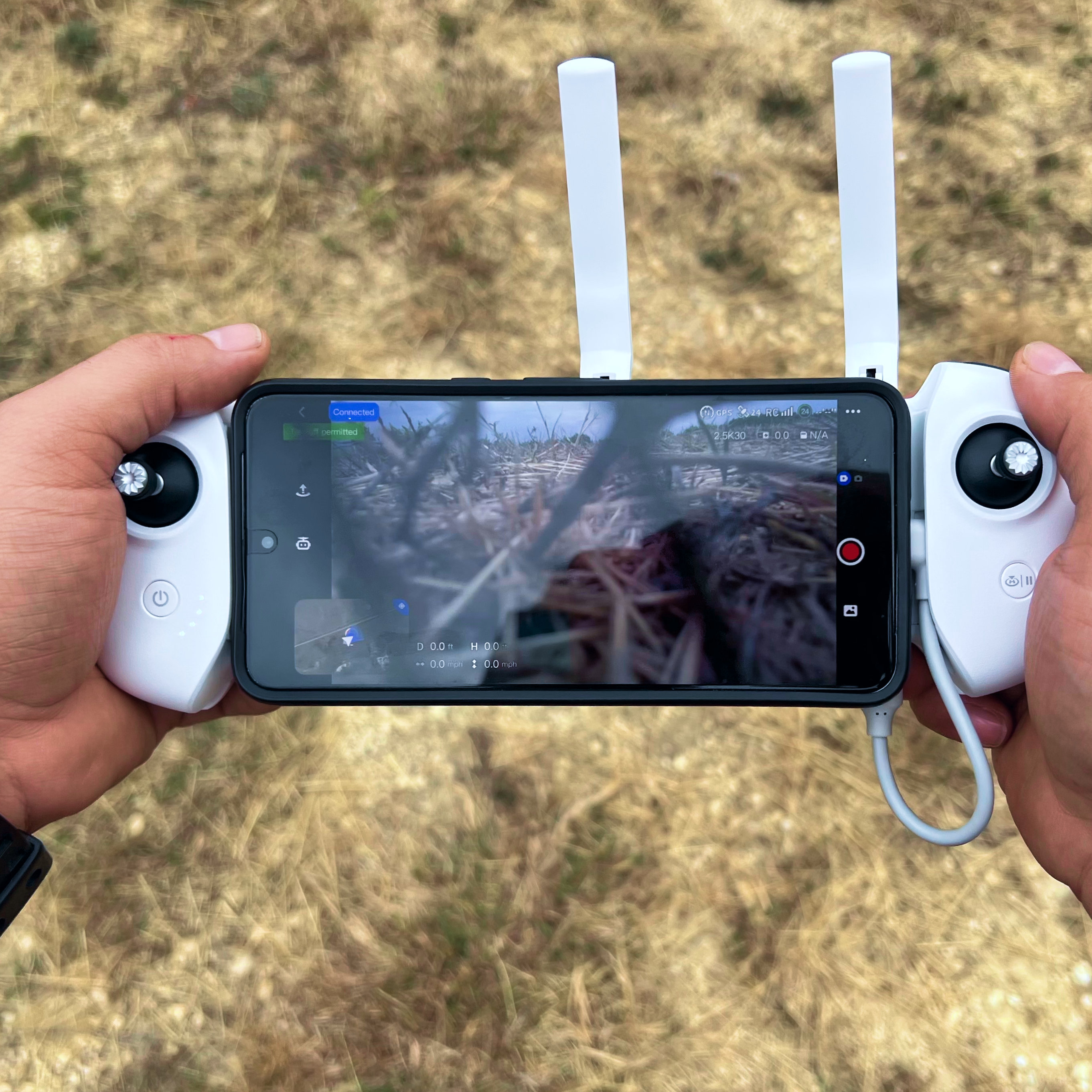

- Ground controller
- Replacement Propellers
- Quick-start documentation
Important Notes
- Operation is subject to local aviation and RF regulations
- Mesh performance depends on terrain, altitude, and network configuration
- Raven UAS does not require cellular or internet connectivity
| Model | Raven UAS (based on sub-250 g GPS platform) |
|---|---|
| Material | High-strength engineering plastic |
| Weight | <249 g (FAA C0 class) |
| Folded Dimensions | ~18 × 12.5 × 7 cm |
| Unfolded Dimensions | ~36 × 34 × 7 cm |
| Motor Type | Brushless (high-efficiency) |
|---|
| Battery | 7.2–7.4 V, 3000 mAh Li-ion (removable/replaceable) |
|---|---|
| Flight Time | Up to 40 minutes (per battery, measured in calm conditions) |
| Charging Time | ~90 minutes |
| Control Range | Up to 4 km video & control link (line-of-sight) |
|---|---|
| Wind Resistance | Stable up to moderate winds |
| Camera Options | One integrated stabilized camera |
|---|---|
| Maximum Resolution | 2.5K video / ~12 MP stills |
| Field of View | ~118° wide-angle |
| Stabilization | Electronic Image Stabilization (ShakeVanish™) |
| Camera Angle Adjustment | Tilt control via remote (approximately −90° to +20°) |
| FPV Transmission | PixSync 2.0 digital link up to 4 km with real-time video |
| GPS Positioning | GPS + GLONASS + GNSS |
|---|---|
| Obstacle Avoidance | Yes |
| Altitude Hold | Yes |
| Waypoint Flight | Yes |
| Orbit Mode | Yes |
| Headless Mode | Yes |
| One-Key Takeoff/Landing | Yes |
| One-Key Return | Yes |
| Speed Modes | Multiple selectable |
| Additional Features | GPS tracking, circle flight, follow-me mode, gesture capture (supported through app features) |
| Control Methods | Remote controller, mobile app, Wi-Fi connection |
|---|---|
| Operating Frequencies | 2.4GHz / 5GHz |
| App Compatibility | Supports multiple languages including English, French, German, Spanish, Portuguese, Chinese (Simplified/Traditional), Korean, Japanese, Italian, Dutch, Swedish, Polish, Greek, Turkish, Russian, Ukrainian, and more |
